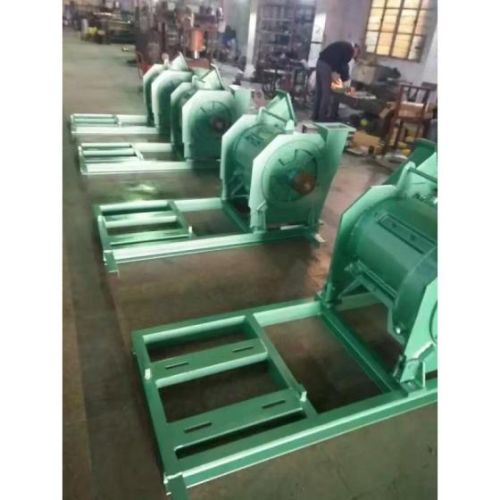

1) AgglomerateCrusher
Performance
Themachine adopts the principle of impact crushing. The materials enter thecrushing chamber and achieve the purpose of crushing by using the impact ofrotary hammer and mutual impact of materials. The crushed materials are drivenby the swirling gas and discharged out of the machine through the screen at thelower part of the machine body. The particle size of the product is controlledand adjusted through the aperture of the screen. The coarse particles that donot meet the requirements are repeatedly broken in the crushing chamber, andfinally all are discharged out of the machine through the screen.
The machine has thecharacteristics of low loss, high efficiency, ideal working performance,reliable product quality, safe operation, environmental sanitation and so on.It can be widely used in medicine, food, chemical industry, agriculture,sideline, construction and other industries. It has ideal effect on crushingbroken bricks, broken tiles, cinders, sand blocks and other materials intopowder. It can also crush animal and plant raw materials with hard shells intofeed with smooth, delicate and excellent performance.
Structure
The machine iscomposed of motor, T-shaped hammer (knife and axe) rotating body, feed inlet,discharge outlet base, crushing chamber, etc.The motor drives a plurality ofpendulum bodies on the spindle disk to make circular motion to crush thematerials.
Maintechnical parameters
Model Parameter | SQ-QH-50 | SQ-QH-85 | SQ-QH-100 |
Motor power (kw) | 4-5.5 | 7.5 | 11 |
Spindle speed (R / min) | 950 | 1000 | 1120 |
Product fineness(mesh) | 60-120 | 60-120 | 60-120 |
Equipment weight (kg) | 180 | 310 | 500 |
Production capacity (kg/h) | 50-500 | 200-1500 | 500-2000 |
Overall dimension L*W*h(mm) | 940*650*950 | 1240*760*1130 | 1430*860*1150 |

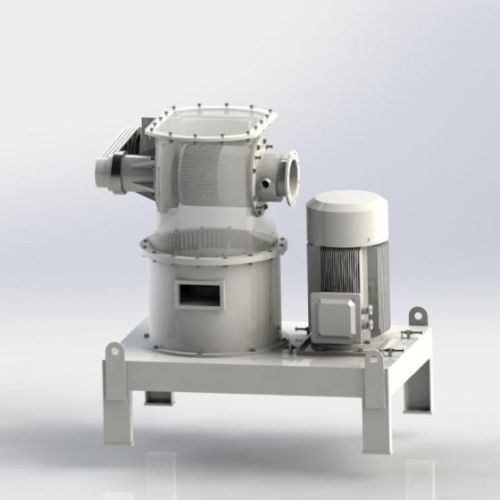

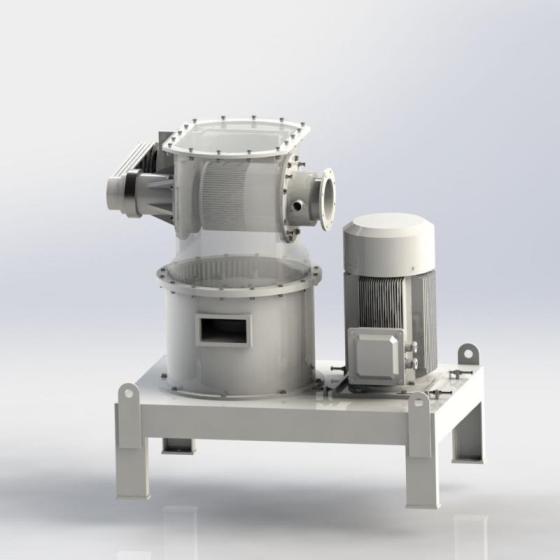

2) SuperfineMechanical Pulverizer
Working principle:
Atthe same time, the materials enter the crushing chamber through the impactbetween the upper and lower inlet of the crushing chamber or the crushingchamber according to the impact of the shear hammer.The crushed fine powdermoves with the air flow to the upper stage chamber. Due to the high-speedrotation of the grading wheel, the coarse powder returns to the crushingchamber under the action of centrifugal force to continue crushing. The finepowder meeting the fineness requirements is discharged from the exhaust portand enters the cyclone separator and dust collector for collection. The dustygas is separated from gas and solid in the dust collector, and the air flow isdischarged by the induced draft fan.
Features:
l The equipment has simple andcompact structure and is composed of crushing and grading systems.
l The feeding particle size canbe large, and the discharging is adjustable
l Can crush high hardnessmaterials.
l Due to its structuralcharacteristics, the machine has the advantages of low energy consumption,small wear, simple operation and strong controllability.
Scope of application:
Themachine is suitable for chemical industry, building materials, electronics,pharmacy, pesticide, coating, dye, light industry, food, metallurgy, feed andother industries, such as crushing and grading operations of pesticide, quartz,talc, kaolin, carbon black, corundum, white carbon black, aluminum hydroxideand so on.
Graphitesuperfine pulverizer has been used and produced by many manufacturers andcompanies, and has been highly praised.
Technicalparameters:
Parameters \ model | SQ-XGK-400 | SQ-XGK-630 | SQ-XGK-1000 |
Product particle size (d90um) | 5-120 | 8-120 | 8-150 |
Pulverizer power kw | 11(15) | 30(37) | 75(90) |
Grinding disc speed r / min | 5600 | 3550 | 2330 |
Diameter of grading wheel mm | 200 | 315 | 500 |
Maximum speed of grading wheel( R / min) | 6000 | 4000 | 2400 |
Grading wheel power kw | 5.5(7.5) | 11 | 18.5 |
Output (kg / h) | -500 | -1000 | -3000 |
Fan air volume (m3 / min) | 15-20 | 40 | 100 |
Fan power kw | 15 | 30 | 45 |
Overall dimension(L * W * H mm) | 1460*940*1376 | 1500*1432*1750 | 3300*2070*2340 |
Net weight of equipment (kg) | 750 | 1500 | 4000 |

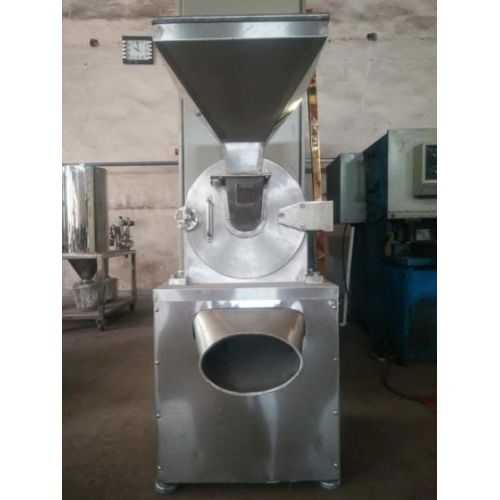

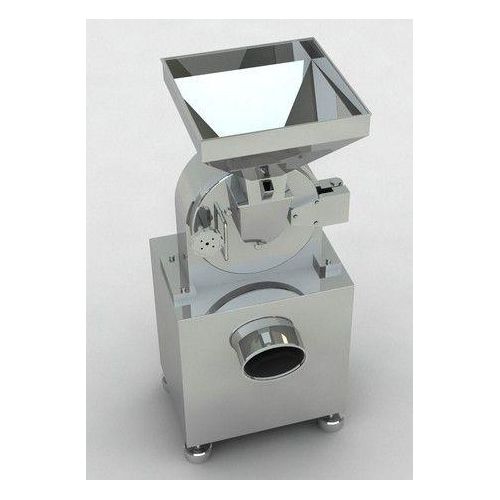

3) UniversalMultifunctional Pulverizer
Working principle:
The universal crusher uses the high-speed relative movementof the movable toothed disc and the fixed toothed disc to crush the crushedobjects through the comprehensive effects of tooth impact, friction andmaterial impact.The machine has the advantages of simple and firm structure,stable operation and good crushing effect. The crushed materials can bedirectly discharged from the grinding chamber of the main machine, and theparticle size can be obtained by changing the mesh screen with differentaperture. In addition, the machine is made of all stainless steel.The innerwall of the casing is machined to achieve smooth surface, which changes thephenomenon of rough and powder accumulation on the inner wall of the previousmodel, and makes the production of drugs, food and chemical industry more inline with national standards and meet the requirements of GMP.
Performance characteristics:
This series of products have the advantages of novel style,simple structure, stable and reliable operation, low noise and small vibration.The discharge outlet adopts air suction device, which has the characteristicsof low temperature rise and large discharge. The inner gear ring in the machineadopts stainless steel material, which has the characteristics of wearresistance, corrosion and so on.If the material is heat sensitive, coolingdevices such as cold water jacket or cold fan can be added.
This equipment has been carefully designed by our engineersand is suitable for the production and processing of small and medium-sizedfactories and laboratories.
The design with dust removal is applicable to theincreasingly strict environmental protection requirements
The integrated design reduces the floor area and spaceheight, and can also be installed and used in some narrow factory laboratories.
Application:
It is widely used in chemical, pharmaceutical, food, dye,pigment, metallurgy, mining, building materials, ceramics, plastics, carbon,additives, feed and other industries.
Technicalparameters:
Model | SQ-XI-50 | SQ-XI-300 | SQ-XI-400 | SQ-XI-60 | SQ-XI-80 | SQ-XI-100 |
Production capacity (kg / h) | 60-200 | 100-300 | 160-800 | 500-1500 | 800-3000 | 2000-5000 |
Spindle speed (r / min) | 4500 | 3800 | 3400 | 2250 | 2000 | 1500 |
Material particle size (mm) | ≤20 | ≤20 | ≤20 | ≤20 | ≤20 | ≤20 |
Crushing fineness (mesh) | 60-150 | 60-120 | 60-120 | 60-120 | 60-120 | 20-120 |
Motor power kw | 4 | 5.5 | 11 | 18.5 | 37 | 55 |
Cooling mode | Air natural cooling / jacket water cooling |

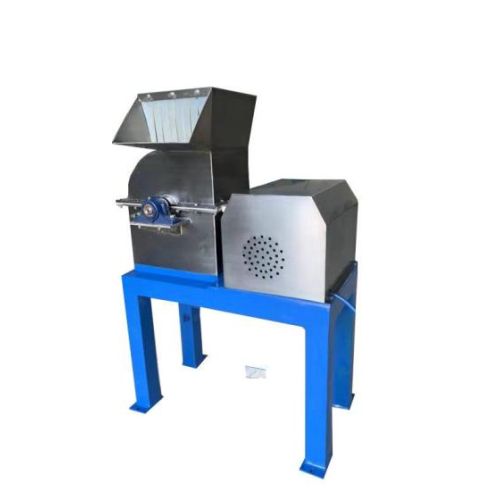

4) HerbalPulverizer
Structure and working principle
The crushing chamber of this machine is composed of casing,door, main shaft, turbine assembly, screen assembly, feed hopper and dischargepipe. It mainly uses the vortex generated at the back of turbine blade to crushmaterials. During operation, the motor drives the main shaft and turbine torotate at high speed. Due to the small gap between the turbine and the gearblock on the screen ring, the materials entering the machine are grinded againin the gap of rotating air flow. In this process, the turbine absorbs a lot ofair, which plays the role of cooling the machine, abrasive and conveying finepowder, The difference is that a certain number of moving needles and staticneedles are added on the turbine and the door respectively, so as to achievethe purpose of pre crushing the materials entering the crushing area. At thesame time, a plane gear ring matched with the outer side of the blade end faceis added on the door to avoid the coarse particles that have not been fullycrushed from running out of the crushing chamber. The crushing fineness ofmaterials depends on the properties of materials, the pore diameter of screenand the throughput of materials and air.
Performance characteristics
1. Compact and reasonable structure, stable operation,convenient installation , and easy maintenance, small floor area needed, large production capacity and no dust pollution.
2. The crushing ratio is large. Usually, the input rawmaterials are within 10mm, and the crushing fineness is adjustable in the rangeof 20-325 mesh.
3. Self-cooling function is good, so it can be appliedto some heat sensitive materials.
4. The machine is a high-speed turbine crusher withhigh efficiency and large crushing capacity.
Scope of use (Applications)
The machine is widely used in chemical industry, dyes,pigments, coatings, pesticides, food, feed, plastics, non-metallic minerals andother industries. It is suitable for crushing medium and low hardness softmaterials such as brittleness and fiber.
Technicalparameters
Model/ Parameter | SQ-UT-150 | SQ-UT-220 | SQ-UT-250 | SQ-UT-350 | SQ-UT-500 | SQ-UT-550 | SQ-UT-750 |
Rotor diameter (mm) | 150 | 220 | 250 | 350 | 500 | 550 | 750 |
Motor power(kw) | 2.2-3 | 4-5.5 | 5.5-7.5 | 11-15 | 18.5-22 | 22-30 | 30-37 |
Turbine speed (r / min) | 7300 | 6000 | 6000 | 4500 | 3250 | 2930 | 2250 |
Crushing fineness (mesh) | 20-325 | ||||||
Production capacity (kg / h) | 5-70 | 15-150 | 20-200 | 25-500 | 30-1200 | 50-1500 | 60-2000 |
Equipment weight (kg) | 40 | 70 | 85 | 250 | 430 | 480 | 1200 |

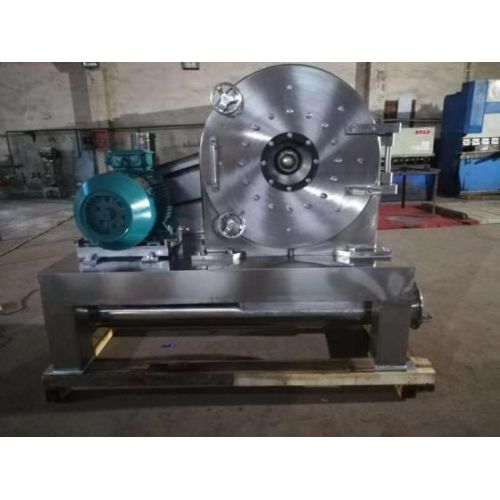

5) Vortexcrusher
Working principle:
Inside the machine, the crushing rotor composed of fourgroups of cutter heads and 56 blades is supported on the bearing seats of theleft and right end covers for high-speed rotation, so that the solid materialparticles are subjected to various mechanisms such as extrusion, tear,collision and shear between the toothed lining plate of the inner cavity andthe blade, so as to achieve the purpose of crushing. At the same time, thehigh-speed rotation of the large and small impeller at both ends of the rotormakes the crushed particles smoothly enter (with large gap) to (with small gap)through the cavity vortex effect between the inlet and outlet, so as to realizecrushing and refinement. Limit the excessive temperature in the cavity, improvethe crushing efficiency, prevent particles from sticking to the cavity, stickingto the knife, blocking teeth and agglomeration, and force the water cooling offour groups of wide cavity water jackets on the surface of the cavity tocontrol the temperature in the cavity to a lower limit
Performance characteristics:
1.The product has a novel structure, can add a wide cavitywith water jacket structure, and has four groups of cooling channels. Thecooling effect is ideal, which can effectively prevent the phenomenon of powdersticking to the cavity and adhesion.
2.Due to the strict dynamic balance calibration process,the machine has the advantages of stable operation, low noise, long servicelife, small volume, convenient installation, energy saving, high shift outputand low failure rate. It is suitable for solid material crushing in variousindustries
Scope of Application:
It is suitable for crushing PVC, pet, PE, PC, LDPE, HDPEand other plastics, bakelite, resin, inorganic minerals, medicines, coatings,dyes, grains, food industries and other materials
Technicalparameters:
Model | SQ-AM-400 |
Spindle speed (r / min) | 5000 |
Crushing fineness(mesh) | 60-120 |
Motor power (kw) | 40 |
1) AgglomerateCrusher
Performance
Themachine adopts the principle of impact crushing. The materials enter thecrushing chamber and achieve the purpose of crushing by using the impact ofrotary hammer and mutual impact of materials. The crushed materials are drivenby the swirling gas and discharged out of the machine through the screen at thelower part of the machine body. The particle size of the product is controlledand adjusted through the aperture of the screen. The coarse particles that donot meet the requirements are repeatedly broken in the crushing chamber, andfinally all are discharged out of the machine through the screen.
The machine has thecharacteristics of low loss, high efficiency, ideal working performance,reliable product quality, safe operation, environmental sanitation and so on.It can be widely used in medicine, food, chemical industry, agriculture,sideline, construction and other industries. It has ideal effect on crushingbroken bricks, broken tiles, cinders, sand blocks and other materials intopowder. It can also crush animal and plant raw materials with hard shells intofeed with smooth, delicate and excellent performance.
Structure
The machine iscomposed of motor, T-shaped hammer (knife and axe) rotating body, feed inlet,discharge outlet base, crushing chamber, etc.The motor drives a plurality ofpendulum bodies on the spindle disk to make circular motion to crush thematerials.
Maintechnical parameters
Model Parameter | SQ-QH-50 | SQ-QH-85 | SQ-QH-100 |
Motor power (kw) | 4-5.5 | 7.5 | 11 |
Spindle speed (R / min) | 950 | 1000 | 1120 |
Product fineness(mesh) | 60-120 | 60-120 | 60-120 |
Equipment weight (kg) | 180 | 310 | 500 |
Production capacity (kg/h) | 50-500 | 200-1500 | 500-2000 |
Overall dimension L*W*h(mm) | 940*650*950 | 1240*760*1130 | 1430*860*1150 |
2) SuperfineMechanical Pulverizer
Working principle:
Atthe same time, the materials enter the crushing chamber through the impactbetween the upper and lower inlet of the crushing chamber or the crushingchamber according to the impact of the shear hammer.The crushed fine powdermoves with the air flow to the upper stage chamber. Due to the high-speedrotation of the grading wheel, the coarse powder returns to the crushingchamber under the action of centrifugal force to continue crushing. The finepowder meeting the fineness requirements is discharged from the exhaust portand enters the cyclone separator and dust collector for collection. The dustygas is separated from gas and solid in the dust collector, and the air flow isdischarged by the induced draft fan.
Features:
l The equipment has simple andcompact structure and is composed of crushing and grading systems.
l The feeding particle size canbe large, and the discharging is adjustable
l Can crush high hardnessmaterials.
l Due to its structuralcharacteristics, the machine has the advantages of low energy consumption,small wear, simple operation and strong controllability.
Scope of application:
Themachine is suitable for chemical industry, building materials, electronics,pharmacy, pesticide, coating, dye, light industry, food, metallurgy, feed andother industries, such as crushing and grading operations of pesticide, quartz,talc, kaolin, carbon black, corundum, white carbon black, aluminum hydroxideand so on.
Graphitesuperfine pulverizer has been used and produced by many manufacturers andcompanies, and has been highly praised.
Technicalparameters:
Parameters \ model | SQ-XGK-400 | SQ-XGK-630 | SQ-XGK-1000 |
Product particle size (d90um) | 5-120 | 8-120 | 8-150 |
Pulverizer power kw | 11(15) | 30(37) | 75(90) |
Grinding disc speed r / min | 5600 | 3550 | 2330 |
Diameter of grading wheel mm | 200 | 315 | 500 |
Maximum speed of grading wheel( R / min) | 6000 | 4000 | 2400 |
Grading wheel power kw | 5.5(7.5) | 11 | 18.5 |
Output (kg / h) | -500 | -1000 | -3000 |
Fan air volume (m3 / min) | 15-20 | 40 | 100 |
Fan power kw | 15 | 30 | 45 |
Overall dimension(L * W * H mm) | 1460*940*1376 | 1500*1432*1750 | 3300*2070*2340 |
Net weight of equipment (kg) | 750 | 1500 | 4000 |
3) UniversalMultifunctional Pulverizer
Working principle:
The universal crusher uses the high-speed relative movementof the movable toothed disc and the fixed toothed disc to crush the crushedobjects through the comprehensive effects of tooth impact, friction andmaterial impact.The machine has the advantages of simple and firm structure,stable operation and good crushing effect. The crushed materials can bedirectly discharged from the grinding chamber of the main machine, and theparticle size can be obtained by changing the mesh screen with differentaperture. In addition, the machine is made of all stainless steel.The innerwall of the casing is machined to achieve smooth surface, which changes thephenomenon of rough and powder accumulation on the inner wall of the previousmodel, and makes the production of drugs, food and chemical industry more inline with national standards and meet the requirements of GMP.
Performance characteristics:
This series of products have the advantages of novel style,simple structure, stable and reliable operation, low noise and small vibration.The discharge outlet adopts air suction device, which has the characteristicsof low temperature rise and large discharge. The inner gear ring in the machineadopts stainless steel material, which has the characteristics of wearresistance, corrosion and so on.If the material is heat sensitive, coolingdevices such as cold water jacket or cold fan can be added.
This equipment has been carefully designed by our engineersand is suitable for the production and processing of small and medium-sizedfactories and laboratories.
The design with dust removal is applicable to theincreasingly strict environmental protection requirements
The integrated design reduces the floor area and spaceheight, and can also be installed and used in some narrow factory laboratories.
Application:
It is widely used in chemical, pharmaceutical, food, dye,pigment, metallurgy, mining, building materials, ceramics, plastics, carbon,additives, feed and other industries.
Technicalparameters:
Model | SQ-XI-50 | SQ-XI-300 | SQ-XI-400 | SQ-XI-60 | SQ-XI-80 | SQ-XI-100 |
Production capacity (kg / h) | 60-200 | 100-300 | 160-800 | 500-1500 | 800-3000 | 2000-5000 |
Spindle speed (r / min) | 4500 | 3800 | 3400 | 2250 | 2000 | 1500 |
Material particle size (mm) | ≤20 | ≤20 | ≤20 | ≤20 | ≤20 | ≤20 |
Crushing fineness (mesh) | 60-150 | 60-120 | 60-120 | 60-120 | 60-120 | 20-120 |
Motor power kw | 4 | 5.5 | 11 | 18.5 | 37 | 55 |
Cooling mode | Air natural cooling / jacket water cooling |
4) HerbalPulverizer
Structure and working principle
The crushing chamber of this machine is composed of casing,door, main shaft, turbine assembly, screen assembly, feed hopper and dischargepipe. It mainly uses the vortex generated at the back of turbine blade to crushmaterials. During operation, the motor drives the main shaft and turbine torotate at high speed. Due to the small gap between the turbine and the gearblock on the screen ring, the materials entering the machine are grinded againin the gap of rotating air flow. In this process, the turbine absorbs a lot ofair, which plays the role of cooling the machine, abrasive and conveying finepowder, The difference is that a certain number of moving needles and staticneedles are added on the turbine and the door respectively, so as to achievethe purpose of pre crushing the materials entering the crushing area. At thesame time, a plane gear ring matched with the outer side of the blade end faceis added on the door to avoid the coarse particles that have not been fullycrushed from running out of the crushing chamber. The crushing fineness ofmaterials depends on the properties of materials, the pore diameter of screenand the throughput of materials and air.
Performance characteristics
1. Compact and reasonable structure, stable operation,convenient installation , and easy maintenance, small floor area needed, large production capacity and no dust pollution.
2. The crushing ratio is large. Usually, the input rawmaterials are within 10mm, and the crushing fineness is adjustable in the rangeof 20-325 mesh.
3. Self-cooling function is good, so it can be appliedto some heat sensitive materials.
4. The machine is a high-speed turbine crusher withhigh efficiency and large crushing capacity.
Scope of use (Applications)
The machine is widely used in chemical industry, dyes,pigments, coatings, pesticides, food, feed, plastics, non-metallic minerals andother industries. It is suitable for crushing medium and low hardness softmaterials such as brittleness and fiber.
Technicalparameters
Model/ Parameter | SQ-UT-150 | SQ-UT-220 | SQ-UT-250 | SQ-UT-350 | SQ-UT-500 | SQ-UT-550 | SQ-UT-750 |
Rotor diameter (mm) | 150 | 220 | 250 | 350 | 500 | 550 | 750 |
Motor power(kw) | 2.2-3 | 4-5.5 | 5.5-7.5 | 11-15 | 18.5-22 | 22-30 | 30-37 |
Turbine speed (r / min) | 7300 | 6000 | 6000 | 4500 | 3250 | 2930 | 2250 |
Crushing fineness (mesh) | 20-325 | ||||||
Production capacity (kg / h) | 5-70 | 15-150 | 20-200 | 25-500 | 30-1200 | 50-1500 | 60-2000 |
Equipment weight (kg) | 40 | 70 | 85 | 250 | 430 | 480 | 1200 |
5) Vortexcrusher
Working principle:
Inside the machine, the crushing rotor composed of fourgroups of cutter heads and 56 blades is supported on the bearing seats of theleft and right end covers for high-speed rotation, so that the solid materialparticles are subjected to various mechanisms such as extrusion, tear,collision and shear between the toothed lining plate of the inner cavity andthe blade, so as to achieve the purpose of crushing. At the same time, thehigh-speed rotation of the large and small impeller at both ends of the rotormakes the crushed particles smoothly enter (with large gap) to (with small gap)through the cavity vortex effect between the inlet and outlet, so as to realizecrushing and refinement. Limit the excessive temperature in the cavity, improvethe crushing efficiency, prevent particles from sticking to the cavity, stickingto the knife, blocking teeth and agglomeration, and force the water cooling offour groups of wide cavity water jackets on the surface of the cavity tocontrol the temperature in the cavity to a lower limit
Performance characteristics:
1.The product has a novel structure, can add a wide cavitywith water jacket structure, and has four groups of cooling channels. Thecooling effect is ideal, which can effectively prevent the phenomenon of powdersticking to the cavity and adhesion.
2.Due to the strict dynamic balance calibration process,the machine has the advantages of stable operation, low noise, long servicelife, small volume, convenient installation, energy saving, high shift outputand low failure rate. It is suitable for solid material crushing in variousindustries
Scope of Application:
It is suitable for crushing PVC, pet, PE, PC, LDPE, HDPEand other plastics, bakelite, resin, inorganic minerals, medicines, coatings,dyes, grains, food industries and other materials
Technicalparameters:
Model | SQ-AM-400 |
Spindle speed (r / min) | 5000 |
Crushing fineness(mesh) | 60-120 |
Motor power (kw) | 40 |
