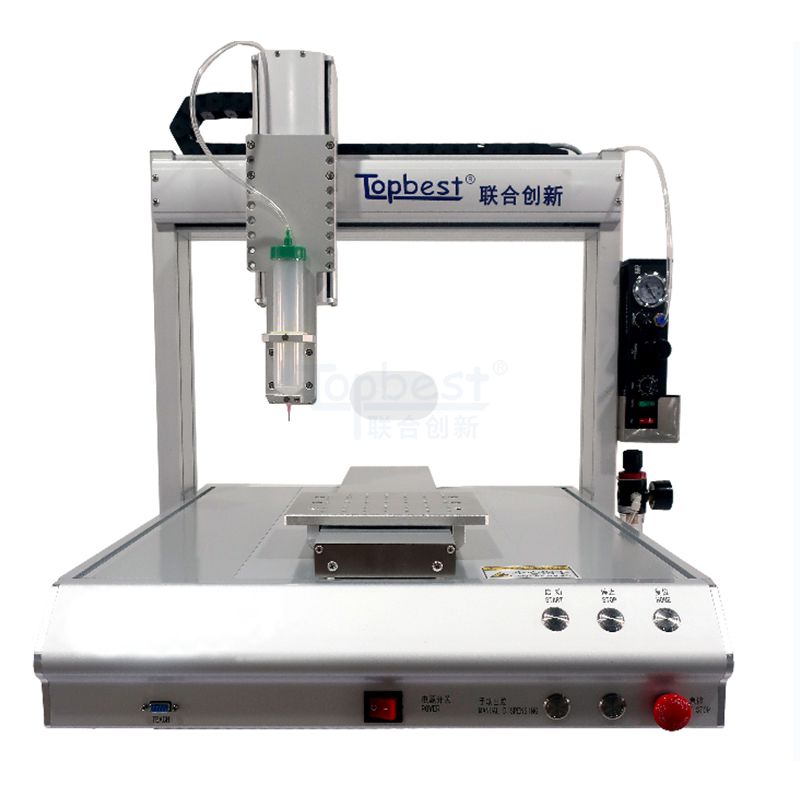

Syringe Type Glue Dispensing Machine TBS-DJ-441

Syringe Type Glue Dispensing Machine

Product Description

Syringe Type Glue Dispensing Machine Functions:

● Desktop type, can be placed on the production line.Small footprint

● Simplified setup and programming via Teach Pendant

● Various functions, such as drawing points, lines, polygons, arcs, circles, irregular curves, continuous tween and three-axis motion;adapts to a wide range

● The fluid dispensing speed, dispensing time, stop the time can be set parameters



Advantages:

● Suitable for wide range of fluid dispensing applications

● Faster cycle and batch times

● Easy integration into any manufacturing operation

● Reduced production, material, and ownership costs

● Suitable for wide range of fluid dispensing applications



MODEL

TBS-DJ-441

TBS-DJ-631

TBS-DJ-6331

Dimension(L×W×H mm)

750X650X750

880×650×750

880X650X750

Weight(kg)

60

75

75

Dispensing range X/Y/Z(mm)

380/380/80

580/280/80

580/280/280/80

Max.jig size

380x380x70

380x380x70

290x280x70

Max.load X&Y-/Z(kg)

10kg/5kg

10kg/5kg

10kg/5kg

Movement speed X&Y/Z(mm/s)

X,Y 600-800MM/S,Z 400MM/S

X,Y 600-800MM/S,Z 400MM/S

X,Y 600-800MM/S,Z 400MM/S

Decomposing ability

0.01mm/s

0.01mm/s

0.01mm/s

Programming method

Teach pendant/Microcomputer

Teach pendant/Microcomputer

Teach pendant/Microcomputer

Repeated accuracy

+/-0.02MM

+/-0.02MM

+/-0.02MM

Power supply

AC220V,50HZ

AC220V,50HZ

AC220V,50HZ

Air pressure

0.4 to 0.8 Mpa

0.4 to 0.8 Mpa

0.4 to 0.8 Mpa

Memory

1000 files

1000 files

1000 files

Display

Teach pendant LCD

Teach pendant LCD

Teach pendant LCD

Motor

Japanese stepping motor

Japanese stepping motor

Japanese stepping motor

Working mode

Dot/Line/Arc/Circle

Dot/Line/Arc/Circle

Dot/Line/Arc/Circle

Driving mode

Synchronous belt+dual guide rails

Synchronous belt+dual guide rails

Synchronous belt+dual guide rails

Dispensing type

Syringe dispensing

Syringe dispensing

Syringe dispensing

Safety operation

Start button

Start button

Start button

Dispensing monitor

No

No

No

Working environment

-5~40℃,humidity 20%~95%

-5~40℃,humidity 20%~95%

-5~40℃,humidity 20%~95%



Suitable glue:

Common UV glue, RTV silica gel, red glue, silver glue, COB black glue, Conductive adhesive, heat – dissipating aluminum paste, quick – drying adhesive, ink, etc



Application fields:

Fiber connector, LED PKG, LCD bonding protection, mobile phone accessories, optical fiber plug glue dispensing, electroacoustic loudspeaker bonding glue dispensing , auto parts, semiconductor packaging, Diode or audion glue dispensing.
