TOBEE1.5x1B AH Hydraulic Slurry Pump for Tanker

Product Description

Min Order Quantity:1 Piece

Supply Ability:30

Port:Tianjin

Delivery Lead Time:Two months

Country/Region:China

City:Shijiazhuang

Product Attributes

  • - Model Number 1.5x1B AH
  • - Place of Origin China
  • - Supply Type In-Stock Items
  • - Condition Used - Very Good
  • - Color Blue
  • - Fuel electricity
  • - Power Hydraulic
  • - Pressure High Pressure
  • - Standard or Nonstandard Standard
  • - Structure Single-stage Pump
  • - Theory Centrifugal Pump
  • - Usage mine
  • - MOQ 1
  • - Drive Type CR
  • - Materials CV
  • - Model ZV
  • - Shaft Seal DC
  • - x-frame type Hyper chrome alloy
  • - Applications Rubber
  • - Related Keywords slurry pump, 1.5x1B AH slurry pump, ah slurry pump, cad drawing slurry pump

Description by Manufacturer

name slurry pump
model AH
Shaft seal Module Design Expeller drive seal, Packing seal, Mechanical seal
Material Liner and Impeller Metal, Rubber, Ceramic, Polyurethane
Farme Type A, B, C, D, E, R, F, G, S, T
Drive Type CR, CV, ZV, DV

Tobee® AH Slurry Pumps Presentation:

Tobee® AH slurry pump are the most comprehensive range of centrifugal slurry pumps for use in mining, chemical and general industry applications. The horizontal slurry pumps are designed for heavy duty applications such as mill discharge, power sector and tailings as well as specialty applications, which are used for continuous pumping of high abrasive, high density slurries.1.5/1B-AH Slurry Pump is end-suction, split-case, centrifugal slurry pumps have set the world standard for heavy duty abrasive pumping applications. With large shaft diameters, heavy duty bearing assemblies and robust slurry pumping capacity, Application customization comes standard with this line by applying a wide variety of metallic and elastomeric parts options, an assortment of seal arrangements, and a standard impeller adjustment mechanism incorporated into every base assembly.

Tobee® AH slurry pumps detailed specification:

√ Slurry Pump wet parts are made of wear-resistant high chromium alloy.

√ Slurry Pump bearing assembly use cylindrical structure, adjusting the space between impeller and front liner easily. They can be removed completely when being repaired. Bearing assembly use grease lubrication. International famous bearing

√ The shaft seal could use the packing seal, expeller seal and mechanical seal for all slurry pump.

√ The discharge branch can be positioned at intervals of 45 degrees by request and oriented to any eight positions to suit installations and applications at its working site.

√ There are the drive types, such as V belt drive, gear reducer drive, fluid coupling drive, and frequency conversion drive devices.

√ Wide performance, good NPSH and high efficiency. The slurry pump can be installed in multistage series to meet the delivery for long distance.


Tobee® AH Slurry Pump Shaft Seal:

Packing seal:

As one of the most commonly used seals for rotating shafts, the packing seal can come with low-flush or full flush arrangement which uses flushing water to prevent media from escaping the pump housing. This kind of seal is suitable for use under all pumping conditions. In situations where corrosive solids or high temperature might be encountered, aramid fiber is used as the packing material for the gland. For high abrasion conditions, a ceramic shaft sleeve is available.

Expeller seal:

The combination of impeller and expeller creates the pressure needed to seal against leakage. Together with the gland seal or lip seal which is used as the shut-down seal, this type of seal can handle sealing requirements for applications where full-flush gland seal is impractical due to lack of water on the site, or sealing water is allowed to enter inside the pumping chamber to dilute the slurry.

Mechanical seal:

TH series heavy duty slurry pump utilizes a leak-proof mechanical seal design which allows easy installation and replacement. Other types of mechanical seal are among options to suit the slurry pump for various pumping applications.

Tobee® AH Slurry Pump Drive Type:

DC Type: The output shaft of a motor is directly connected to the input shaft of a pump via a pump coupler. This type of connection is suitable for applications where the speed of the slurry pump is the same as that of the motor.

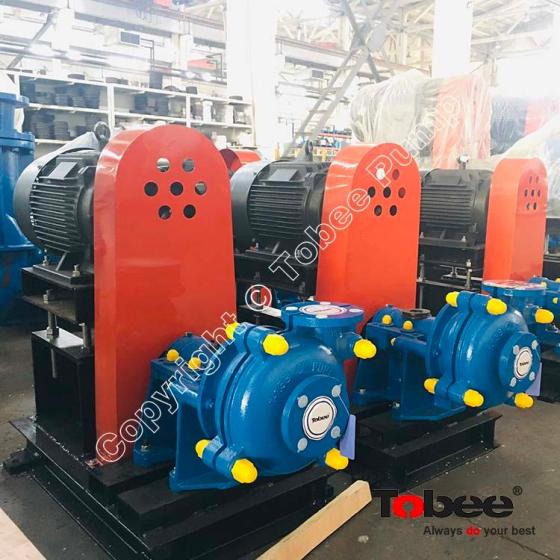

CV Type: The pump is driven by a belt connected to the crankshaft of the engine. This way of connection allows for saving space, easy installation, and fast adjustment of pumping speed. The motor is fixed to themotor support frame which is located on the bearing support above the slurry pump.

ZV Type: Another type of belt drive that allows easy adjustment of pumping speed. The motor is directly fixed to the bearing support. This way of installation is suitable for motors with larger horsepower than is possible with CV type of installation. Due to the installation of motor onto the bearing support, this method helps save installation space.

CR Type: This type of belt drive makes it easier to adjust pumping speed. The installation allows both the motor and slurry pump to be fixed to the ground. The motor is installed to the side of the pump. This installation method is suitable for large-power motors


Tobee® AH Slurry Pumps On-site Applications:

• Mining• Mineral processing• Construction• Chemical and Fertilization• Power generation• Phosphate matrix fertilization• Pulp and paper• Waste sludge• Paper mill wastes and liquors• Precipitated CaCO3• Plaster• Bottom/fly ash, lime grinding• Dirty water• Pulp and paper• Oil and gas• Waste water treatment• Ball mill discharge• Rod mill discharge• SAG mill discharge• Fine tailing• Flotation• Heavy media process• Minerals concentrate• Mineral sands• Coal-washing plant• Coarse sand• Coarse tailing• Dredging• FGD• Wet crushers applications• Wet scrubber systems• Process chemical• Iron and Steel• Ni acid slurry• Fracking slurries• Clay and sand slurries• Kaolin clay• Carbon slurry• Lime mud• Oil sands• Phosphoric acid

Company presentation:

Hebei Tobee Pump CO.Limited is a professional manufacturer in designing and manufacturing Centrifugal Slurry Pumps, Pipes & Fittings, Valves etc. Our factory is located in the High tech Development Zone, Shijiazhuang City, China. We specialized in Horizontal slurry pumps, Vertical slurry pumps, Gravel sand pumps, Dredging pumps, Paper pulp pumps, Molten Salt Pumps, End suction pumps, Double suction pumps, Multistage pumps, Boiler feed water pumps, Self priming pumps, Inline centrifugal pumps, Sea water pumps, Chemical pumps, Irrigation pumps, Fire pumps, API 610 centrifugal oil pumps, Sewage pumps, Submersible slurry pumps, Slurry Pump spare parts, Pipes & fittings and Valves in domestic and over 80 countries in the world.


Price

  • Price US$ \ 400 ~ 1000 / Piece

Packaging & Shipping

  • - PackingWooden Case
  • - Packaging Size1000 x 1000 x 800 ( Millimeters)
  • - Delivery Lead TimeTwo months
  • - Minimum Order 1 Piece
  • - Supply Ability30
  • - Total quantity in Stock151 – 300
  • - Delivery PortTianjin
  • - HS Code8413709990
  • - Shipping Career

Product Image
