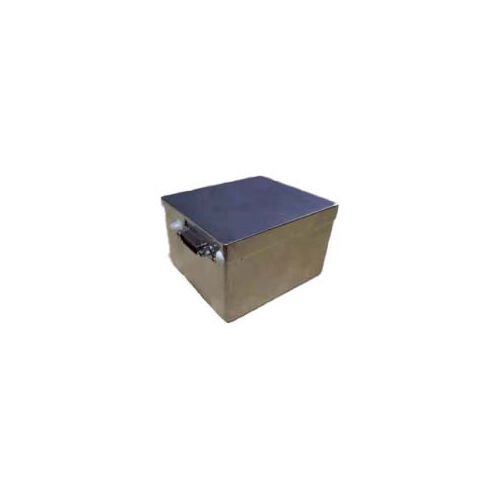

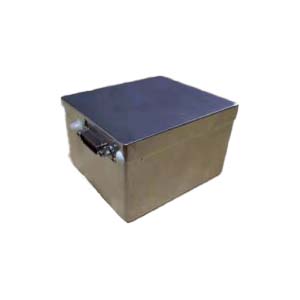

Cost-effective Laser Gyroscope

Cost-effective Laser Gyroscope

Product Description

Cost-effective Laser Gyroscope

ER-RLG-50 (≤0.01°/h)
1. Bias stability: ≤0.01°/h;
2. Measuring range: -500~500°/s;
3. Bias repeatability: ≤0.003°/h.

Main parameters of gyroscope

Bias stability ≤0.01°/h (100s Standard deviation)
Bias repeatability ≤0.003°/h (100s Standard deviation)
Total error of scale factor ≤5ppm
Measuring range -500~500°/s
Start time ≤5s
Operating temperature –40℃~+65℃
Storage temperature –55℃~+85℃
Shock 30g/11ms(half-sine), 75g/6ms(sine)
Vibration 7.2g/5min (Three directions)
Frequency(Hz) 10 100 200 300 600 1000 2000
Power(g2/Hz) 0.1 0.4 0.1 0.02 0.005 0.00003 -6dB
Jitter frequency 500Hz~700Hz, the jitter frequency of type A, type B and type C gyroscopes decreases successively, the jitter frequency difference between two adjacent gyros is more than 40Hz
MTBF 15000h
Storage life 15a
Size (84±1)mm×(75±2)mm×(53±1)mm
Weight 0.6±0.02kg
Power consumption ≤3W

Mechanical interface
Figure 1 Shape and mounting dimensions of gyroscope

Cautions

  1. Gyroscope should be avoided by impact, knock;
  2. Gyroscopes with the same jitter frequency should be avoided in the same inertial navigation equipment;
  3. Pay attention to the use of spring pad when installing the gyroscope. It is recommended to use M4hex socket screw with grade 9 (including) or above, and the recommended torque value is 2.5NM.
