High Accuracy North-Seeking MEMS IMU
Product introduction
Inertial Measurement Unit, referred to as IMU, is a device to measure the attitude angle (or angular velocity) and acceleration of the three axis of the object. Gyroscope and accelerometer are the core devices of inertial navigation system (INS). With the built-in accelerometer sensor and gyroscope, the IMU can measure the linear acceleration and rotation angular velocity from three directions and can obtain the attitude, velocity and displacement information of the carrier through the resolving.

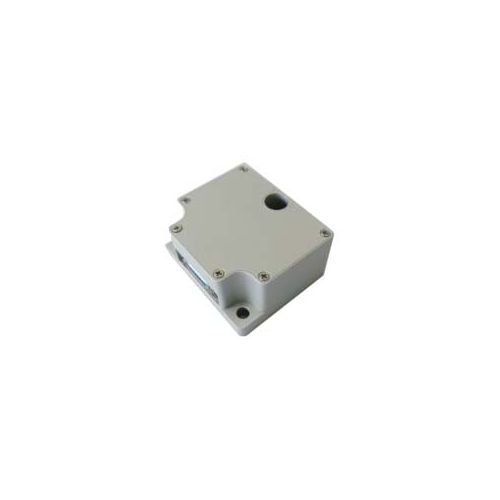

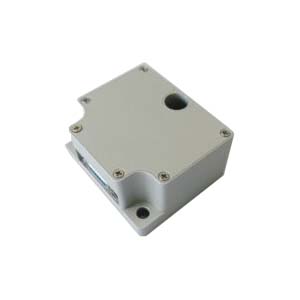

ER-MIMU-05 uses MEMS accelerometer and gyroscope with high quality and reliability, RS422 and external communication, baud rate can be flexibly set between 9600~921600, through the communication protocol to set the user’s required communication baud rate. With X, Y, Z three-axis precision gyro, X, Y, Z three-axis accelerometer with high resolution, can be output by RS422 X, Y, Z three axis of gyroscope and accelerometer’s original hexadecimal complement data (including gyro hexadecimal complement the numerical temperature, angle, the accelerometer hexadecimal temperature, the acceleration hexadecimal complement number); It can also output float dimensionless values of the gyroscope and accelerometer processed by the underlying calculation.
Applications
Petroleum exploration;
Bridge, tall building, tower, dam monitoring
Navigation and control
Attitude reference system
Guidance
Vehicle and ship attitude measurement
Integrated inertial/satellite navigation system
Drilling and production systems
Mobile mapping system
On-the-move
Features
Volume: 44.84 mm×38.88 mm×21.39 mm;
5V power supply, low power consumption 1.0W;
Light weight: ≤60g;
Products include X, Y, Z three-axis MEMS gyro and X, Y, Z three-axis MEMS accelerometer;
RS422 bus communication, baud rate from 9600~921600 can be set.
Parameters
| Item | Parameter | Unit | |
| Gyro performance | |||
| Range | 100 | °/s | |
| Bandwidth (-3dB) | 12 | Hz | |
| Scale Factor at 25°C | 80000 | lsb/deg/s | |
| Scale Factor Repeatability (1σ) | <50 | ppm | |
| Scale Factor VS Temperature (1σ) | 300 | ppm | |
| Scale Factor Non-Linearity (1σ) | <200 | ppm | |
| Bias Instability | 0.02 | °/hr | |
| Bias stability (10s 1σ) | <0.1 | °/hr | |
| Angular Random Walk | <0.005 | °/ √h | |
| Bias error over temperature (1σ) | 3 | °/Hr | |
| Bias temperature variations, calibrated (1σ) | <0.3 | °/Hr | |
| Bias Repeatability (1σ) | <0.1 | °/hr | |
| Accelerometer performance | |||
| Range | 2-10 | 10-30 | g |
| Bandwidth | 100 | 100 | Hz |
| Bias Stability (1s) (1σ) | <20 | <30 | μg |
| Bias Repeatability | 100-300 | 200-500 | μg |
| Bias Temp Coefficient | <10 | <20 | μg/℃ |
| Bias Temp Hysteresis | <0.5 | <0.5 | mg |
| Factor Scale Non-linearity | <500 | <500 | ppm |
| Factor Scale Repeatability | <300 | <300 | ppm |
| Factor Scale Temp Coefficient | 10 | 10 | ppm/℃ |
| Class II Non-linearity Coefficient | <100 | <100 | μg/g² |
| Factor Scale | 4000000-800000 | 4000000-800000 | lsb/g |
| System Performance | |||
| Supply Voltage | 5V±0.25V | ||
| Supply Consumption | 1W | ||
| Interface | RS422 | ||
| Vibration | 6.06g (10~2000Hz) | ||
| Shock | 5000g, 0.1ms | ||
| Operate Temp | -45℃~+ 85℃ | ||
| Storage Temp | -55℃~+ 105℃ | ||
| Weight | ≤60g | ||
| Size | 44.84 mm×38.88 mm×21.39 mm | ||
