Low Cost 3 Axis FOG North Seeker

Low Cost 3 Axis FOG North Seeker

Product Description

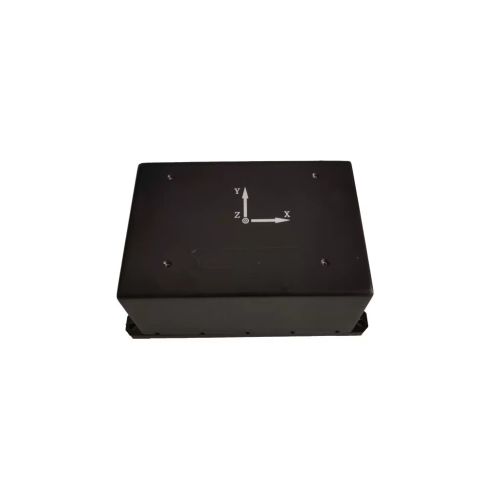

ER-FNS-03 Low Cost 3 Axis FOG North Seeker

Introduction

ER-FNS-03 Low Cost FOG gyro North Seeker adopts closed-loop fiber optic gyroscope as the core component. It is mainly composed of inertial measurement unit (IMU), digital signal processing unit and the organizations of the mechanical parts. It can provide the carrier with true north azimuth angle.

Products are widely used in coal mining, oil drilling, tunnel construction, and geodesy, also can be used for static initial alignment of missile launch, weapon targeting and direction control of radar, antenna, vehicle, and other objects.

Applications

North seeker

Navigation and control

Attitude reference system

Guidance

Vehicle and ship attitude measurement

Integrated inertial/satellite navigation system

Drilling and production systems

Mobile mapping system

On-the-move

Specifications

Parameters ER-FNS-03A ER-FNS-03B
Dimension (mm) 200×100×90mm/210×125×105mm
Sensor 3-Axis FOG 3-Axis FOG
Weight (Kg) 2.0Kg 2.0Kg
Power Supply 12V 12V
Current 1A 1A
Power Consumption ≤12W ≤12W
Start-up Time 5min 5min
Working Latitude -65°~+65° -65°~+65°
North Seeking Precision 1°secψ 0.5°secψ
North Seeking Time 5min 5min
Heading Measurement Range 0°~360° 0°~360°
Pitch Measurement Range -65°~+65° -65°~+65°
Output RS422 RS422
Operating Temperature +5℃~+55℃ +5℃~+55℃
Vibration 10Hz~1000Hz, 5g
Impact 8ms~11ms, 20g, half-sine wave
