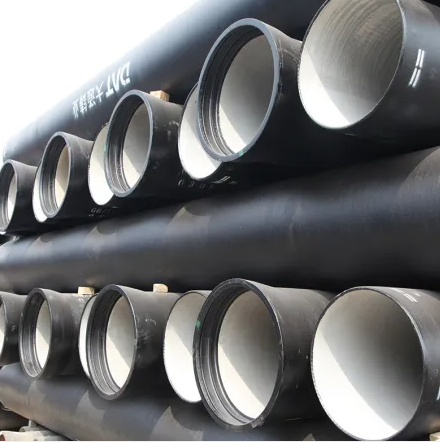

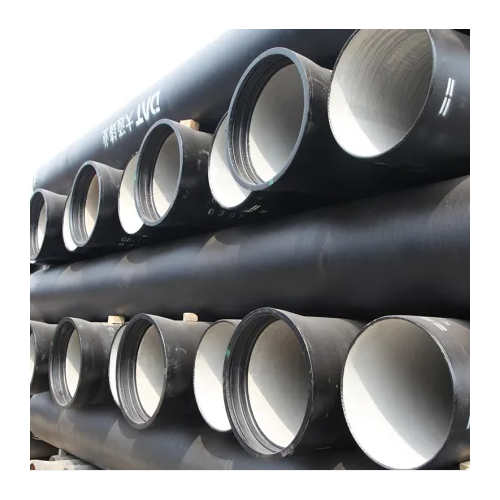

Ductile Iron Pipe

Ductile Iron Pipes are a type of high-strength, durable, and versatile piping solution that are commonly used in water supply systems. They are made from ductile iron, which is a type of cast iron that has been treated with small amounts of magnesium to give it enhanced ductility and flexibility.



we provide top-quality Ductile Iron Pipes that meet the ISO 2531 and BS EN545 standards for potable water application and BS EN598 for sewage application. Our pipes come in effective lengths of 6m/5.7m and are produced using the latest centrifugal casting technology to ensure their durability and strength.



Our Ductile Iron Pipes feature an internal lining that is available in Ordinary Portland Cement, Sulphate-resistant cement, or High-aluminal Cement, depending on your specific requirements. These linings provide excellent protection against corrosion, ensuring that your pipes remain functional for a longer period of time.



In addition to our internal lining, our pipes come with an external coating of Zinc Primer Plus Bitumen or Epoxy Painting. We offer a wide range of coating options to ensure that our pipes meet your specific needs and requirements. Whether you need a coating that provides extra protection against corrosion, UV rays, or other environmental factors, we have the perfect solution for you.



We are dedicated to providing exceptional customer service, and our team of experts is always available to help you choose the right products for your specific needs. Contact us today to learn more about our Ductile Iron Pipes and how they can benefit your business.



Specification

Model Number: DN80-DN2000

Brand Name: Datong

Standard: ISO 2531 & BS EN545 (for potable water application) BS EN598 (for sewage application)

Effective Length: 6m/5.7m

Techinical Process: Centrifugal casting

Internal Lining: Ordinary Portland Cement, Sulphate resistant cement ,High-aluminal Cement.

External coating: Zinc Primer Plus Bitumen or Expoxy Paiting The coating can be accordance with customers' requirements.

Shipment: By bulk ship or 20'/40' containr

Rubber gasket: NBR, SBR, EPDM according to ISO4633/EN681.1

Quality Control: 100% Inspection + Professional Lab Test

Place of Origin: Shanxi, China

Delivery Detail: 20 days after order.



Technical Parameters

Specification	Wall Thickness（mm）		K9 Weight  Ton/pc	C Class  Weight     Ton/pc	C class	CBM/PC （M3/PC）
	C CLASS	K9
DN80	4.4	6	0.077	0.058	C40	0.114
DN100	4.4	6	0.095	0.071		0.136
DN150	4.5	6	0.144	0.106		0.255
DN200	4.7	6.3	0.194	0.146		0.424
DN250	5.5	6.8	0.255	0.21		0.631
DN300	6.2	7.2	0.323	0.282		0.877
DN350	6.3b	7.7	0.403	0.335	C30	1.07
DN400	6.5b	8.1	0.482	0.394		1.35
DN450	6.9	8.6	0.577	0.472		1.651
DN500	7.5	9	0.669	0.565		2
DN600	8.7	9.9	0.882	0.783		2.8
DN700	8.8b	10.8	1.123	0.931	C25	3.78
DN800	9.6	11.7	1.394	1.164		4.98
DN900	10.6	12.6	1.691	1.446		6.174
DN1000	11.6	13.5	2.017	1.759		7.544
DN1200	13.6	15.3	2.758	2.122		10.787



Advantages

Ductile Iron Pipes offer several advantages over other types of pipes, including black iron pipe for water supply. Firstly, Ductile Iron Pipes are much stronger and more durable than black iron pipes.This means that they are less likely to break or crack under pressure or during installation, which can save time and money on repairs and replacements.

Secondly, Ductile Iron Pipes are resistant to corrosion and can withstand harsh environments, making them ideal for water supply systems that carry water containing chemicals or other corrosive substances. This also means that Ductile Iron Pipes have a longer lifespan than other types of pipes, reducing the need for frequent replacements.

Another advantage of Ductile Iron Pipes is their versatility. They can be used for a wide range of applications, including water supply, sewage systems, and gas pipelines. This means that they are a cost-effective choice for municipalities and other organizations that need to install pipes for multiple purposes.

In terms of Ductile Iron Pipe prices, they are generally more expensive than black iron pipes.However, the increased durability and longevity of Ductile Iron Pipes often make them a more cost-effective choice in the long run. Additionally, the cost of Ductile Iron Pipes can vary depending on factors such as the size of the pipe, the length of the pipe, and the location of the installation.

Overall, Ductile Iron Pipes offer several advantages over black iron pipes for water supply systems, including greater strength, resistance to corrosion, and versatility. While Ductile Iron Pipe prices may be higher initially, the long-term cost savings and durability of these pipes make them a wise investment for many organizations.



Application

The application of ductile Iron pipes is quite diverse, and they are commonly used in various industries and applications. The most common applications of Ductile Iron Pipes is water supply systems.

Ductile Iron Pipes are commonly used for water supply systems, as they are strong, durable, and resistant to corrosion. They can withstand high pressures and can carry large volumes of water.



Welcome to Choose Our Ductile Iron Pipe !

Ductile Iron Pipe is a type of iron pipe known for its strength, durability, and ability to withstand high pressures. It is made by using a special casting process that produces a unique microstructure of graphite in nodular form, resulting in a material that is more flexible and less brittle than traditional gray iron.



Shanxi Datong Casing Import & Export Co., Ltd. offers a range of Ductile Iron Pipes in various sizes, including 15 sizes from DN80—1200㎜, with an annual production capacity of up to 50,000 Metric tons. Our factory features a modern workshop spanning 35,000 square meters and boasts advanced production equipment and an automatic production line. Our intermediate frequency electric furnace and spectroscopic analyzer are sourced from abroad, while our 318M3 blast furnace produces 1,000 tons of high-quality molten iron per day.



Our Ductile Iron Pipes are produced using a continuous casting process of both blast furnace and electric furnace, in compliance with both GB13295 and ISO2531 standards. This ensures that our pipes meet the highest quality standards, and can withstand high pressure and heavy loads. Our pipes are ideal for use in water supply systems, including black iron pipe for water supply and iron pipes for water supply.



One of the advantages of our Ductile Iron Pipe is its versatility. It is suitable for a wide range of applications, including water supply, sewage, gas transportation, and mining. Additionally, it is compatible with a variety of joint types, including push-on joint, mechanical joint, flanged joint, and restrained joint.



When it comes to Ductile Iron Pipe Prices, our products are competitively priced and offer excellent value for money. We also offer a range of Ductile Iron Pipe Fittings to complement our pipe products.



For those in need of black iron pipe for water supply or iron pipes for water supply, our Ductile Iron Pipe is an ideal choice. It is corrosion-resistant, making it a long-lasting and cost-effective option for transporting water. Datong Casing pipes are also available in Ductile Iron Pipe Dimensions that meet the specific needs of each project, ensuring a customized and tailored solution for our customers.



In conclusion, our Ductile Iron Pipe is a high-quality and versatile product that is competitively priced and offers excellent value for money. With its superior strength and durability, it is an ideal choice for a wide range of applications, including water supply and sewage. Please contact us for product catalog and quotation!
