Essential details
- Applicable Industries:
Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Home Use, Retail, Construction works
- Condition:
Brand New
- Type:
Hollow Block Making Machine, Paving Block Making Machine, Interlock Block Making Machine, Curbstone Block Machine, Autoclaved aerated concrete block (AAC), Other
- Brick Raw Material:
Cement; Sand; Stone; Fly ash
- Processing:
Brick Production Line
- Method:
Hydraulic pressure
- Automatic:
Yes
- Production Capacity (Pieces/8 hours):
Other, 4480 pcs/8hours, 2500 pcs/8hours, 3400 pcs/8hours, 1920 pcs/8hours, 5760 pcs/8hours, 1500 pcs/8hours, 1280 pcs/8hours, 3000 pcs/8hours, 12000 pcs/8hours, 3200 pcs/8hours, 2560 pcs/8hours, 1000 pcs/8hours, 800 pcs/8hours, 20000 pcs/8hours
- Place of Origin:
Shandong, China
- Brand Name:
WEIDA
- Voltage:
220v/380v/415v/440v
- Dimension(L*W*H):
4500x2300x2980mm
- Warranty:
2 Year
- Key Selling Points:
Automatic
- Brick size:
400*100*200 mm, 400*120*200 mm, 200*100*60 mm, 300*150*100 mm, 400*150*200 mm, 240*115*90 mm, 200*200*60 mm, 150*150*100 mm, 400*200*200 mm, 230*220*115 mm, Other
- Machinery Test Report:
Provided
- Marketing Type:
New Product 2023
- Warranty of core components:
2 Year
- Core Components:
PLC, Gear, Motor, Pump, Bearing, Gearbox, Other
- Raw material:
Sand; Fly Ash; Cement; Concrete; Stone
- Block Type:
Hollow Paving Curbstone Interlocking Solid Brock
- Molding cycle:
15-20s
- Pallet size:
1420x900x25/30mm
- Product Name:
Automatic Concrete Making Machine
- Model:
QT12-15
- Power:
54KW
- Motor:
Siemens Motor
- Mould:
Heat Treatment
- Advantage:
Germany Technology
- After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
- After-sales Service Provided:
Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
- Certification:
ISO9001/QA/CE/Intertek
Some mainly parts and new point design introduce
A: Brick conveyor
tranfer the finished block/brick from mold to stacker
B: Control station
Worker can control it and control the machine make brick.

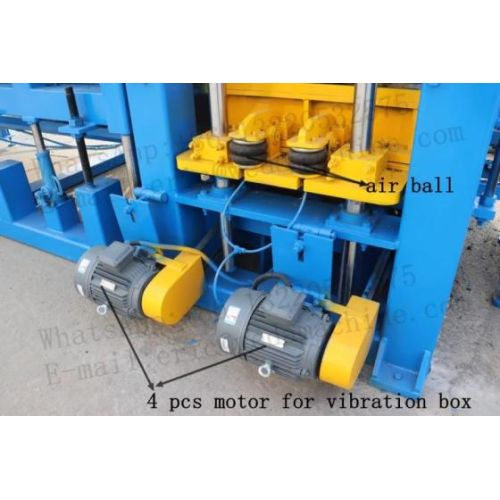

C: Vibration motor
New design: we adopt 4 motors(each side 2 motors) drive the vibration box, ensure the vibration stronger, and make stronger brick.
D: Air ball
This design for reduce the the vibratory force to the machine, ensure the machine running smoothly.
E: Mold frame
The mold movement adopt hydraulic cylinder, ensure the mold movement more smoothly and make the brick size more accuracy.
F: Hydraulic station
Hydraulic station mainly including the pump, oil tank and valve assembly and motor
G: Hopper
Storage the mixed raw materials
H: Pallets table
it will delivery pallet to the bottom of mold.

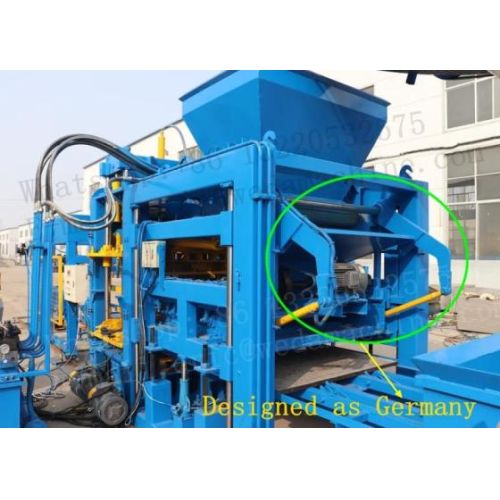

I: Feeding materials system
This is the best design for feeding materials, and it will reduce the strength to the machine, and also have faster speed for feeding raw materials.
J. Pallet box
The pallets will be putted into it in advance, and then automatic be delivery to the brick machine.

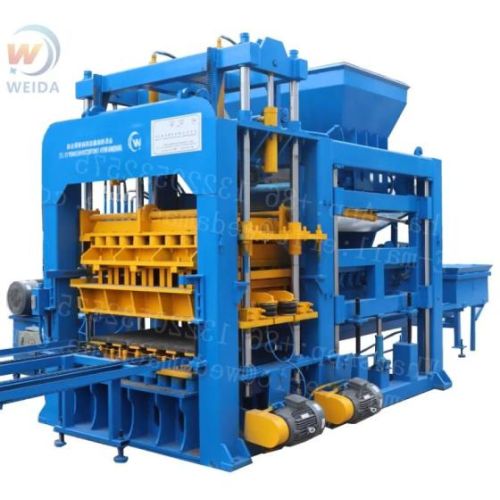

Host machine feature
1. This host block/brick machine including hydraulic station and control box.2. This machine block/brick mold can be changed and the brick/block height can be adjusted.
3. Many mainly parts adopted the advanced Germany technology and make this brick machine not only have faster speed, but also stable and make highest quality brick.
4. The electric part adopted Siemens PLC, Schneider switch and all are famous brand, have good quality.
5. The brick mold adopted heat treated, have higher strength and hardness, very wear-resisting6. It can make hollow block/brick; color paver; big curbstone and some other brick/block.

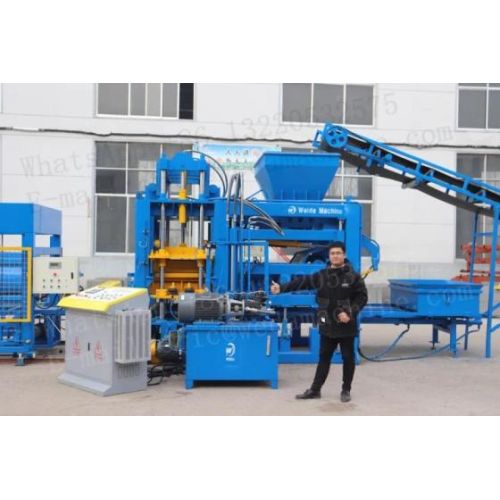

WEIDA QT12-15 Automatic Block/brick
Production Line
| Pallet is necessary for brick machine, but you can get from your local if your local have. |
| Air compressor will use for the brick machine air ball for reduce the strength to brick machine. |
| Stacker is use for collect pallet with brick and stack them together. |
| Host machine set, making the different bricks you want |
| Belt conveyor will be used for delivery the mixed materials to the hopper of brick machine. |
| JS1000 mixer used for mixing the raw materials |
| Belt conveyor will be used for delivery the mixed materials to the JS1000 mixer |
| 3-Hopper batching machine is used for storage different raw material in advance, according to your local situation, you also can choose the 2-hopper batching machine. |
