VSI Vertical Shaft Impact Crusher: Revolutionizing Crushing Efficiency

Introduction

Welcome to our comprehensive guide on VSI vertical shaft impact crushers, a cutting-edge solution in the field of crushing technology. At Shijiazhuang Shanbao Machinery Equipment Sales Co., Ltd., we are dedicated to providing you with top-quality equipment that enhances productivity and efficiency in your crushing operations. In this article, we will delve into the key features, benefits, and applications of VSI vertical shaft impact crushers, and why they are poised to revolutionize the crushing industry.

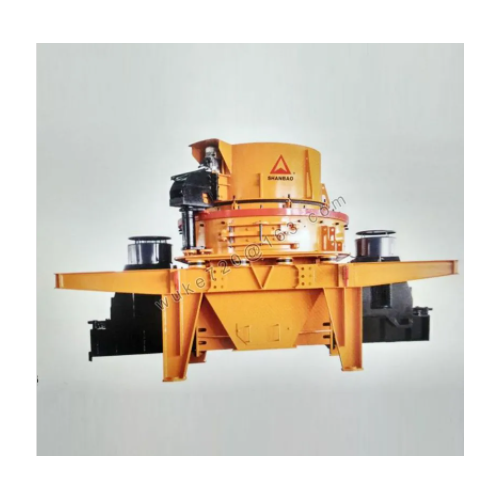

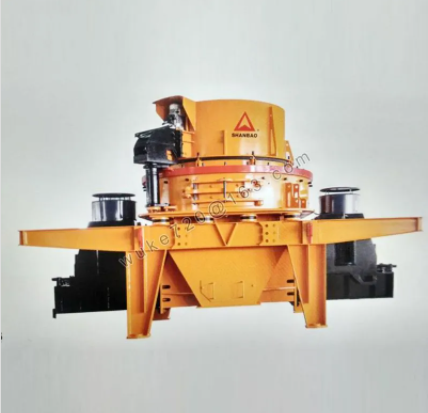

The VSI/S series vertical shaft impact crusher is an impact crusher developed by our company for the ROS(Rock On Steel) mode and the ROR(Rock On Rock) mode. ROS mode is mostly used for material sand making operations while ROR mode for material shaping operations.Eeach model is equipped with three or five-door rotors, and there are 3 basic speeds to meet different requirements.



Application fields

Widely used in construction fields such as construction aggregates, highway aggregates, high-speed railway ballasts, and high-specification concrete aggregates.



Suitable material

Widely used in sand making and shaping operations of basalt, granite, limestone, quartzite, gneiss, diabase, cement clinker and other raw materials



Product Features

1. Optimize the design of wear parts, and adjust the configuration of wear parts according to the users raw material conditions to reduce production costs;

2. Compared with the traditional vertical shaft impact crusher, it has a larger throughput and a larger output;

3. Personalized configuration for each user to ensure sand formation rate and shaping effect;

4. Easy to operate, safe and reliable;

5. Special sealing and convenient maintenance;

6. Hydraulic configuration, thin oil lubrication;

7. One machine with multiple functions, flexible application, and cost reduction;

8. Special feeding bin design reduces dust emission.

Model	Feeding Mode	Main uses	Feeding Size Range		Capacity(t/h)	Rotational Speed(rpm)	Power(kW)	Weight (excluding motor)(ton)
			Soft Rock (<150Mpa)(mm)	Hard Rock (150-350Mpa)(mm)
VSI-950	central feeding	sand making	5-45	5-40	150-250	1165/1485/1660	2×160	14.9
					210-320	1165/1485/1660	2×200
VSIS-950	side-flow material & central feeding	shaping	5-45	5-40	200-320	1165/1485/1660	2×160	13.1
					280-450	1165/1485/1660	2×200
VSI-950F	central feeding	sand making	5-25	5-20	135-225	1165/1485/1660	2×160	14.8
					190-285	1165/1485/1660	2×200
VSIS-950F	side-flow material & central feeding	shaping	5-25	5-20	180-285	1165/1485/1660	2×160	13.0
					250-400	1165/1485/1660	2×200
VSI-1100	central feeding	sand making	5-50	5-45	250-380	1120/1260/1390	2×220	16.5
					280-450	1120/1260/1390	2×250/2×280
VSIS-1100	side-flow material & central feeding	shaping	5-50	5-45	310-500	1120/1260/1390	2×220	14.5
					350-550	1120/1260/1390	2×250/2×280
VSI-1100F	central feeding	sand making	5-28	5-25	225-340	1120/1260/1390	2×220	16.5
					250-400	1120/1260/1390	2×250/2×280
VSIS-1100F	side-flow material & central feeding	shaping	5-28	5-25	280-450	1120/1260/1390	2×220	14.5



Understanding VSI Vertical Shaft Impact Crushers

What is a VSI Vertical Shaft Impact Crusher?

A VSI (Vertical Shaft Impact) crusher is a specialized machine designed to break down aggregate materials into smaller particles. It utilizes high-speed rotating impellers or anvils to impart kinetic energy to the materials, resulting in efficient and precise crushing. Unlike traditional crushers, such as jaw crushers or cone crushers, VSI crushers offer unique advantages by producing superior cubical-shaped end products with high gradation and reduced flakiness.



Key Components and Working Principle

VSI vertical shaft impact crushers consist of several essential components that work in harmony to deliver exceptional performance. These components include:

1. Feed Hopper: The feed hopper is responsible for receiving and distributing the feed material evenly onto the rotor.

2. Rotor: The rotor plays a crucial role in the crushing process. It comprises a series of impeller shoes or anvils that accelerate the material towards the crushing chamber.

3. Crushing Chamber: The crushing chamber accommodates the feed material and facilitates the high-speed impact crushing process. It ensures optimal particle-to-particle impact, resulting in precise and efficient crushing.

4. Distributing Cone: The distributing cone evenly distributes the material across the entire width of the rotor.

5. Wear Parts: Various wear parts, such as anvils, anvils shoes, and rotor tips, are crucial for maintaining the crusher's performance and minimizing downtime.



The working principle of a VSI vertical shaft impact crusher revolves around the rapid acceleration and impact of the feed material against the crushing chamber walls and anvils. This process enables efficient reduction of hard and abrasive materials, producing high-quality, well-shaped end products.



Advantages of VSI Vertical Shaft Impact Crushers

VSI vertical shaft impact crushers offer a multitude of advantages that make them a preferred choice for various crushing applications:

1. Superior Particle Shape: VSI crushers excel at producing cubical-shaped end products, which are highly desirable in many industries, including construction and concrete production.

2. Precise Gradation Control: With a VSI crusher, you can achieve excellent control over the gradation of the final product, ensuring it meets the specific requirements of your application.

3. High Production Efficiency: Thanks to their unique crushing process, VSI crushers are highly efficient and capable of processing a wide range of materials, including hard and abrasive ones.

4. Versatility: VSI crushers are versatile machines suitable for various applications, such as aggregate production, mining operations, and recycling.

5. Low Maintenance Requirements: Designed with simplicity and durability in mind, VSI crushers are known for their robustness and minimal maintenance needs, reducing downtime and maximizing productivity.



Elevate Your Crushing Efficiency with Our Premium Vertical Shaft Impact Crushers

Are you in search of a reliable and high-performance vertical shaft impact crusher? Look no further! Shijiazhuang Shanbao is here to meet your crushing needs. As a leading manufacturer and distributor of top-quality crushing equipment, we take pride in offering the finest selection of vertical shaft impact crushers on the market.



Unveiling Our Vertical Shaft Impact Crusher

Our vertical shaft impact crushers are designed to revolutionize your crushing operations by delivering unparalleled efficiency, superior performance, and exceptional reliability. Equipped with advanced technology and built with precision engineering, our crushers are at the forefront of the industry, setting new standards for productivity and product quality.



Unmatched Price-to-Value Ratio

At Shijiazhuang Shanbao Machinery Equipment Sales Co., Ltd., we understand the importance of finding the perfect balance between quality and affordability. That's why we offer our vertical shaft impact crushers at competitive prices without compromising on the excellence of our products. We believe that investing in top-notch crushing equipment shouldn't break the bank, and our pricing reflects that commitment.



Tailored Solutions for Your Unique Requirements

We recognize that each crushing application is unique, and one size does not fit all. That's why we offer personalized services to cater to your specific needs. Our team of experts will work closely with you to understand your requirements, providing custom-designed production lines that maximize efficiency and productivity. With our comprehensive knowledge and extensive industry experience, we guarantee tailored solutions that exceed your expectations.



Unwavering Commitment to Customer Satisfaction

Customer satisfaction is our top priority. With nearly two decades of experience in the market, we have built a reputation for excellence and reliability. Our commitment to delivering high-quality products, maintaining reasonable prices, and ensuring punctual delivery time sets us apart from the competition. We take pride in the trust and satisfaction our customers have placed in us, and we strive to exceed their expectations at every step.



Your Partner in Success

By choosing Shijiazhuang Shanbao Machinery Equipment Sales Co., Ltd., you are not just purchasing a vertical shaft impact crusher; you are gaining a trusted partner in your success. Our dedicated team is ready to provide unrivaled support, from assisting you in selecting the perfect crusher for your application to offering comprehensive after-sales service and spare parts storage. With us by your side, you can focus on what you do best while we take care of your crushing equipment needs.



Experience the Difference Today

Don't settle for ordinary when you can have extraordinary crushing efficiency. Contact Shanbao today and discover how our vertical shaft impact crushers can elevate your operations to new heights. Trust in our quality, rely on our expertise, and let us be your preferred partner in achieving success. Together, we will reshape the future of crushing technology.
