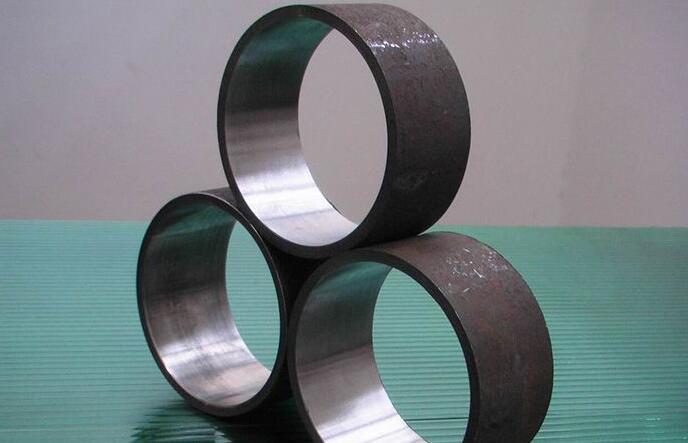

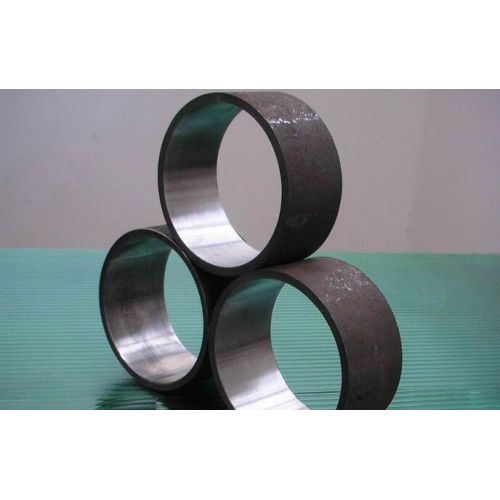

Pipeline Steel Clad Plate
Pipeline Steel Clad Plate
Product Description
Overview
Pipeline steel clad plate is a perfect combination of carbon steel and stainless steel which features the excellent cost effectiveness ratio when being applied in industries like gas, oil, heat exchange, fluid pipe, chemical fertilizer pipe and so on. It can help you save the engineering cost greatly yet with better performance.
Features
The thickness of the expensive corrosion resistant metal is made as thin as possible with the required strength being provided by the backing steel. The cladding ratio and the size of the clad plates can be produced to meet customer's requirements. In other words, flexibility of materials and made-to-order sizes of the cladding metal and backing steel makes it possible to reduce the material cost.
Specifications
| Item Name | Pipeline Steel Clad Plate |
| Type | Welded |
| Welding line type | Spiral welded |
| Thickness | 3-7mm |
| Outer diameter | 219-3220mm |
| Length | 12000mm (max) |
| Standard | GB |
| Materials | Stainless steel+Carbon steel |
| Stainless steels | 304,321,316(L),310S,etc |
| Carbon steels | Q235,Q345,20R,16MnR,etc |
| Pressure | 4Mpa (min) |
| Application | gas/oil/heat exchange/ fluid pipe/ chemical fertilizer pipe and so on |
| Package | Standard export sea-worthy package |
| Delivery Time | Usually 15-25 days depends on the quantity |
| Payment terms | TT, L/C, DP or Negotiable |
| Container Size | 20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High)40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High)40ft HC:12032mm(Length)x2352mm(Width)x2698mm(High) |
| Note | We are so able to produce other standard as per the clients' requirements. Just let us know. |
