Union Conial Fig 340 NPT/BSP GALVANIZED/ BALACK

Union Conial Fig 340 NPT/BSP GALVANIZED/ BALACK

Product Description

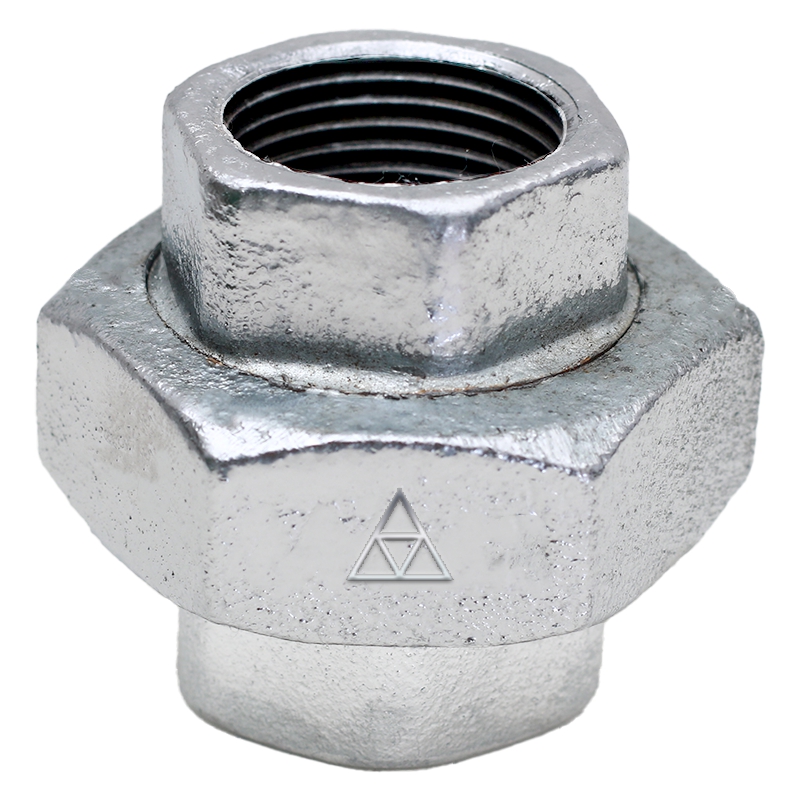

Malleable iron pipe fittings: Union Conial Fig 340 NPT/BSP GALVANIZED/ BALACK

Type: Union

Galvanized/Black Malleable Iron Pipe Fittings Standard Specification

Standard American Class 150 Brithish Standard European
  ANSI/ASME B 16.3
Dimention ANSI/ASME B 16.14 KSB 1531 EN 10242
  ANSI/ASME B 16.39
Threads ANSI/ASME B1.20.1 BS 21 ISO 7-1
    BS 2779 ISO 228-1
Material ASTM A-197 BS EN 1562 EN1562
Zinc Coating ASTM A-153 BS 143&1256 EN10242
Reinforcement Banded Banded Beaded

Size: 1/4”---6”

Threaded Standard: BS / NPT/DIN

Surface: Hot dipped galvanized, Toast galvanized, Black

Usage: Fire Protection (Fire Fighting), plumbing, infrastructure construction, decoration, etc.

Tensile Strength: ≥33 KG/MM2

Elongation: ≥8%

Hydness: <HB163

Hydraulic Test Pressure: 25 KG/MM2

Working Pressure: 16 KG/MM2

Packing: Carton/ Bags /Pallet

Delivery: 45 days after the payment

Payment: TT, LC, etc.
