Magnetic Chamfer Strip

In fact, the construction market is too small compared to all Neodymium magnet markets, and Neodymium magnet is also too small to extensive construction accessories.

Product Description

Magnetic Steel Triangle Chamfer Strip Brief Introduction





Magnetic chamfer strip is a magnetic shuttering solution for the precast concrete industry!

In fact, the construction market is too small compared to all Neodymium magnet markets, and Neodymium magnet is also too small to extensive construction accessories. Almost none of the magnet suppliers have interest or knowledge in the application of magnet in the construction market. We focus our assembly attention on developing and manufacturing Neodymium magnet assemblies for the construction industry, especially the precast concrete industry.

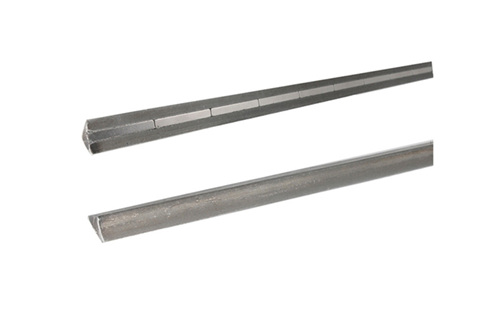

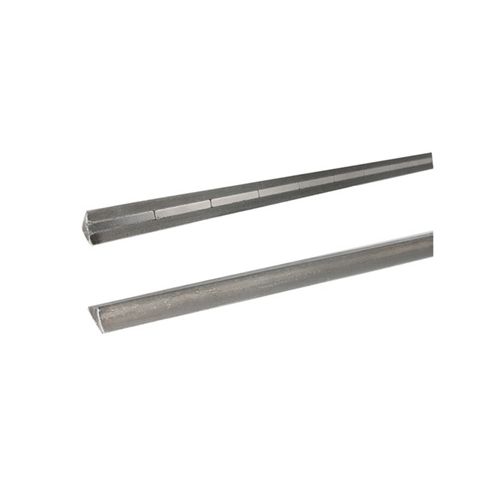

Our magnetic chamfer strip is designed to create beveled edges on corners and faces of concrete wall panels and small concrete items. The reusable magnetic chamfer strip is made of high-quality steel with embedded strong magnets. The strong magnets integrated at the surface of the chamfer ensure fast and accurate placement of the chamfer in steel formwork construction without slipping or sliding. The magnetic chamfer can be delivered in several different sizes with magnets on a single side, double sides or the hypotenuse along the full 100% length or just along 50% of the length. Thanks to using in many customers, some of our magnetic chamfers have been recognized as the standard design or size in the precast concrete industry.





Characteristics of magnetic chamfer strip





1. Reusable and durable

2. Easy to operate

3. Quick to position, remove and clean

4. No screws, bolts or welding necessary to accurately position chamfers on formworks, therefore, preserving surface finish to increase the lifetime

5. The excellent quality result on the concrete panels due to much of the building finish problems eliminated



Advantages over Competitors





Unbeatable know-how in Neodymium magnet, the most important component to ensure the quality of magnetic chamfers

More sizes available to save tooling cost

Standard sizes in stock and available for immediate delivery

Custom-made solutions available upon request



Magnetic steel chamfer strips Technical Data



Part Number A
(mm)
B
(mm)
C
(mm)
Length
(mm)
Length of Magnet Type of Magnetized Side Maximum Operating Temperature
(°C)
HM-ST-10C 10 10 14 3000 50% or 100% Single 80
HM-ST-15C 15 15 21 3000 50% or 100% Single 80
HM-ST-20C 20 20 28 3000 50% or 100% Single 80



Why Precast Plants Need Magnetic Chamfer





1. Chamfered edges produced by the magnetic chamfer have an excellent appearance.

2. The chamfered edges of the precast concrete elements are more difficult to chip than sharp edges.

3. It’s worth investment because it is reusable and makes operation efficient.



How Magnetic Chamfer Produced





1. Machine a steel chamfer from the steel and the plain surface should be ensured during the machining process.

2. Machine a groove in the steel chamfer and the size and depth of the groove should be controlled well.

3. Embed Neodymium magnets in the groove and seal it by glue.

4. Inspect many aspects of the magnetic chamfer including appearance, size, magnetic force, shape, etc.



If we can be of any further assistance, please do not hesitate to contact us. We are here to help you with your need!
