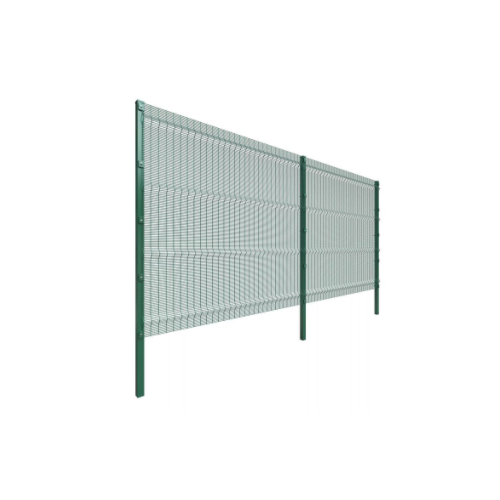

Anti climb 358 Mesh Fence

358 anti climb fence, known as "prison mesh fencing", is a high security anti-climbing and anti-cutting welded wire fence. Galvanized wire, commonly, is welded into fencing panels with extremely fine opening holes, which cannot be penetrated by hand fingers or cut by bolt cutters. Therefore it is highly recommended for high security needed area and private living field.

The name—358 high security fence comes from the size of panel mesh opening and wire diameter: 3'' × 0.5'' × 8 gauge, approximately equals to: 76.2 mm × 12.7 mm × 4 mm. As a welded wire fence, galvanized after welded and then PVC coated is recommended for a sturdy structure and corrosion resistance ability. For added protection, this product will provide the longest delay to the intruder allowing your security personnel additional time to deal with an intrusion. This is a product where our experience and advice can save you money.Welcome to CONTACT US  for more information.

• Prison Mesh is incredibly strong and can withstand cutting attempts using standard cutting tools.

• The space between the mesh itself means that it is difficult to climb.

• Pre-Galvanisation and Powder Coating is available as standard, meaning that the gate is protected against the development of rust.

• Powder Coating is also available in various RAL Colours so you are able to co-ordinate your fencing to your surroundings, whilst giving it a smooth and sophisticated finish.

• This fencing type can be installed on both soft and hard ground types by using either Dig-In or Bolt –Down Posts.

• Available with a clip or clamp fixing. Clamp Bar fixings are only available as a Dig In option.

Specification:

• 358 mesh panel size

  • Mesh pattern: 76.2 mm (3") × 12.7 mm (0.5").

  • Wire diameter: 4 mm horizontal wire and vertical Wire.

  • Weld strength: range 540–690 N/m2.

  • Surface treatment: 358 mesh fence panels made from galfan wire, then PVC powder coating (Min. 100 micron), or PVC powder painting. It provides additional protection and increases the potential life span.

  • Colors: green (RAL 6005), black (RAL 9005). All RAL color is available.

  • Accessories: posts, post base feet, barbed wire, slotted clamp bars, post cap, bracket, bolts, spacer, nuts, washer, clips, etc.

• Fence posts

  • Material: high grade steel for maximum strength and rigidity.

  • Post section: 60 × 60 mm, 80 × 80 mm, 100 × 100 mm, 120 × 120 mm.

  • Post Plate thickness: 2.5 mm or 3.0 mm, 4.0 mm, 5.0 mm.

  • Finish: inside and outside galvanized (Min. 275 g/m2), subsequently covered with a polymer powder (Min. 60 micron ).

  • Colors: same as panel.

  • Post cap: metal caps or plastic cap.

  • Metal clips and clamps are hot dip galvanised then powder coating in green or black color.

Prison guard mesh is designed to be extremely difficult to climb. The mesh is so tight that most people can’t get their fingers through it in order to gain any kind of purchase. This means that most people are simply unable to get the grip that they need in order to climb these panels. They also, unlike solid panels, offer excellent visibility through the fence. This means that you can still actively observe what is happening on the outside of your fence and easily spot any potential intruders.358 Prison Mesh is by far the most secure and rigid of all our mesh systems. This prison mesh is stylish yet also provides a good level of privacy compared to other mesh systems.

Prison mesh fencing is ideally suited where maximum security is required and the small gaps of the mesh and the thickness of the wire make scaling and cutting Prison Mesh difficult. The prison mesh fencing is fixed to the post with full length stretcher bars and insert bolts and there is 3 whole positions at each fixing point for stepping of the fence where required.
