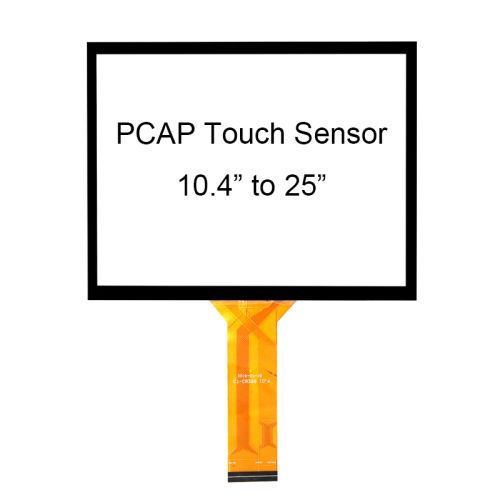

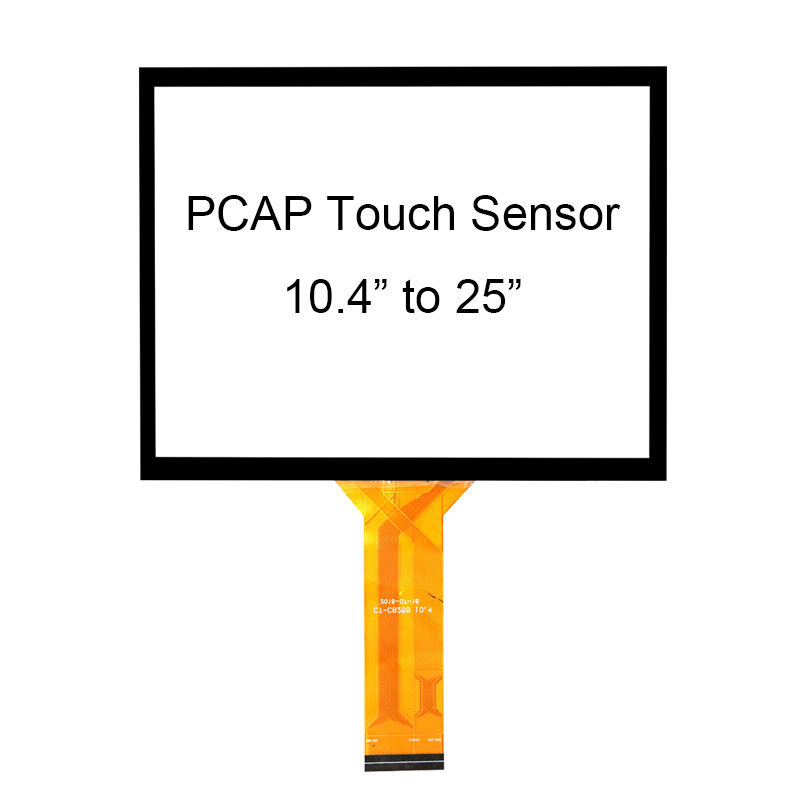

10.4 to 25 Inch Projected Capacitive Touch Sensor

10.4 to 25 Inch Projected Capacitive Touch Sensor

Product Description

Projected Capacitive Touch Sensor

For medium size projected capacitive touch screen sensors from 10.4 inch to 25 inch, ITO technology touchscreen sensor is optically bonded with a tempered cover glass via optical clear adhesive. The surface hardness of the strengthened cover glass is above 6H, supporting single touch to multitouch (10 points). They are compatible with Windows, Android, Linux operating systems. Most of such size capacitive touch screens, it works with a controller board, on which there are USB connector, IIC connector and RS232 connector for option.



Structure

GG (glass-on-glass), ITO technology PCAP touchscreen sensor glass optically bonded with strengthened front glass.

GFF(glass-on-film-on film), two layers of ITO touchscreen sensor films optically bonded with cover lens.



Type

COB (chip on board), touch IC from ILITEK, USB/RS232/IIC interface connectors are soldered on the controller board.



Touch Points

Multi-touch, finger touch, supporting thin-gloved hand touch (latex gloves for example), thick glove touch
