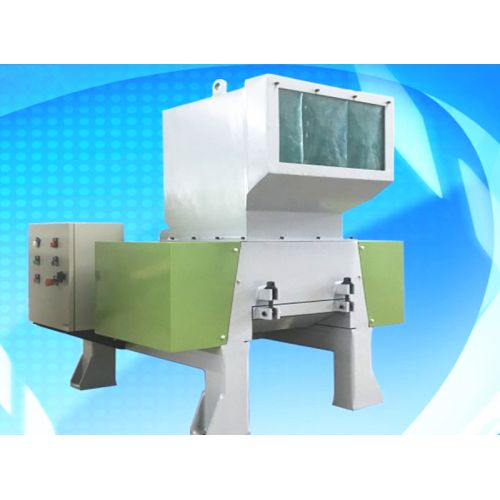

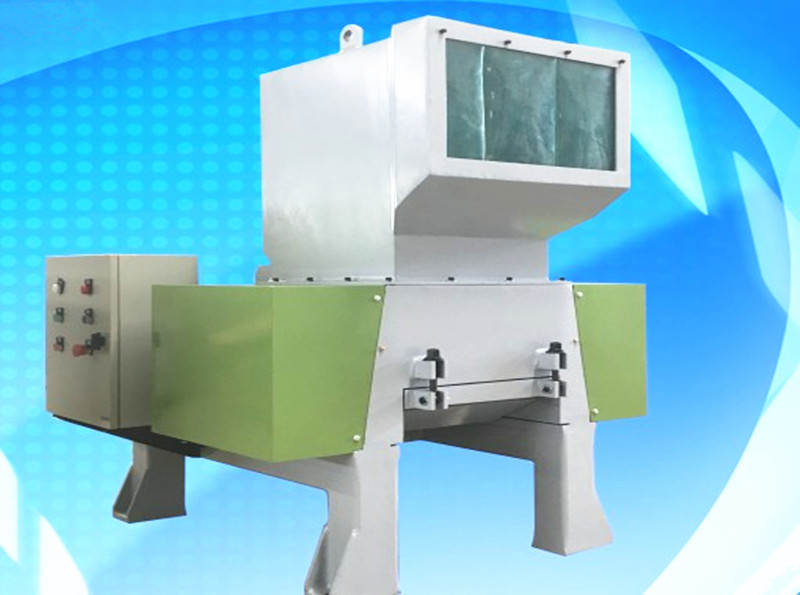

Economic Small Plastic Granulator/Crusher
Economic Small Plastic Granulator/Crusher
Product Description
The small plastic granulator is also popular as a plastic crusher. It features a compact design and small footprint. This is a popular pelletizer used primarily in small recycling facilities. It has also been adopted by some manufacturing plants as an in-house waste management solution.
The blade adopts stepped distribution which can improve the cutting force and enhance working efficiency. Movable screen and dismounting convenience are easy for cleaning and changing. Sound insulation interlace is used in the feeding mouth to reduce the noise level and improve the working environment. A limited switch is installed in the feeding mouth to protect the operator's safety. This machine is specially used for recycling of material head, leftover material, scraped injection molding and PET bottles. It can improve work efficiency matching with crusher. The discharge of this machine is equipped with a screen to control the crushed granules below a certain particle size. Thus it can make the final pellets suitable for processing in the next recycling step.
Attn: This machine can match an automatic suction device and dust collector.
Grinder Specification
| Model | Motor Power | Hopper Size | Capacity/Hour | Rotor Dia. | Blade Material |
| OGZ3060 | 22kw | 600*250mm | 300~400kg | Φ300mm | D2 |
| OGZ3580 | 30kw | 800*300mm | 500~600kg | Φ350mm | D2 |
Plastic granulator pelletizing applications
Plastics: PET bottles, HDPE containers, plastic pipes/tubes, nylon scrap, PP flakes, plastic packaging, molding scrap (sprues, runners, cleaners)
Rubber: Hoses, rubber sheets, rubber mats, rubber tubes (such as tire inner tubes), bicycle tires, rubber blocks, rubber seals
Paper: Cardboard, newspaper, office paper, kraft paper, paper cores, cardboard tubes, paper packaging
Wood: Wood blocks, branches, slats
