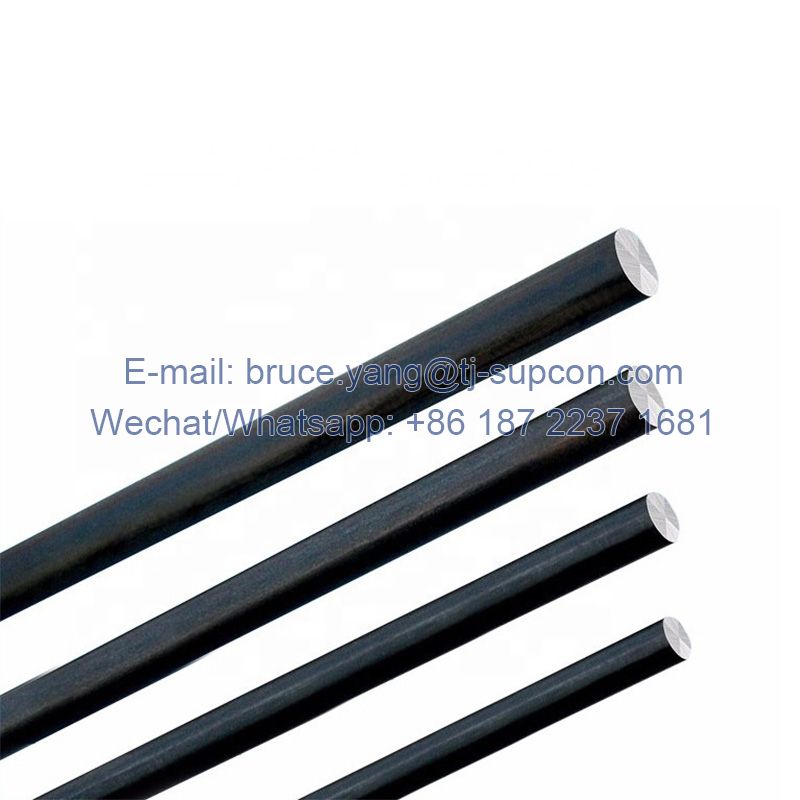

PC Steel Bar

PC Steel Bar

Product Description

PC steel bars are mainly used in the construction industry. It is the main steel for pipe pile foundations. It has high strength, small amount of metal materials, convenient use, and easy quality assurance. It has a wide range of uses in the construction industry.

Features of PC steel bars

PC steel bars (also referred to as Prestressed Concrete Steel Wire) is high tensile, low relaxation steel wire made from high-carbon steel and widely used for prestressed and post-tensioning technology in various shapes of PC structures. It has the following characteristics and advantages:

● High tensile strength and low relaxation

● More bonding stress between wire and concrete

● Stable modulus of elasticity

If you have any questions, please feel free to contact us! We will provide you with the most professional answer in the shortest possible time.

PC steel bars Properties

Product Name PC steel bar
Type of Surface Spiral Ribbed, Indented, Plain
Materials SWRH82B
Diameter 4.0mm, 4.8mm, 5.0mm, 6.0mm, 7.0mm, 8.0mm, 9.0mm
Tensile Strength 1470Mpa-1770Mpa
Relaxation (%) ≤2.5
Elongation (%) ≥3.5
Standard ASTM A 421, GB/T5223, BS5896, JISG3536, and required standard.
Packing Packed in coils (around 700-1300kg/coil). Each coil is strapped by steel bands at 8 places, fully wrapped with anti-rust plastic & PP woven sheet.
Application PC Wire is characterized with high tensile strength and low relaxation. It's widely used in production of prestressed spun concrete poles, PHC Piles, in construction of large scale railroad, high-way bridges, building trusses, overhead crane beams, industrial and civil prefabricated concrete slabs, wall board, power station, etc.
Our Advantages

● Extensive experience in exporting.

● Professional team to manage production and control product quality.

● Equipped with advanced testing facilities and abide by the principle of testing each coil produced.

Application of PC steel bars

Centrifuge tube pile
Viaduct pier
Railway sleepers
Electric pole
