Pyramid Mesh Fence

Product Description

Min Order Quantity：10 Set

Supply Ability：5000 Set/Sets per Month

Port：tianjin

Delivery Lead Time：Negotiable

Country/Region：China

City：Shijiazhuang

Product Attributes

- Place of Origin China
- Supply Type OEM Service
- Condition New
- Related Keywords Pyramid Mesh Fence, Mesh Panel Fencing

Description by Manufacturer

Pyramid Mesh Fence

Material: Low carbon steel wire

Wire: 6/5/6mm,8/6/8mm

Mesh: 50*200mm,50*100mm, etc.

Height: 1.2m-3m

Width: 2-3m

Post: 60*60mm,80*80mm,100*100mm,etc.

Accessories: post caps, clips, nuts and bolts.

Surface treatment: Hot dipped galvanized, PVC coated, Powder coated

Packaging: pallets

Certificates: ISO9001, BV,SGS

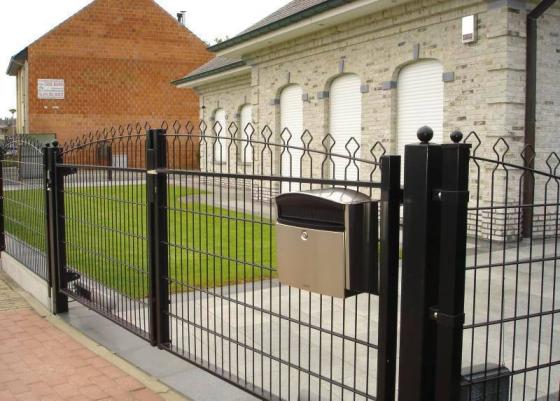

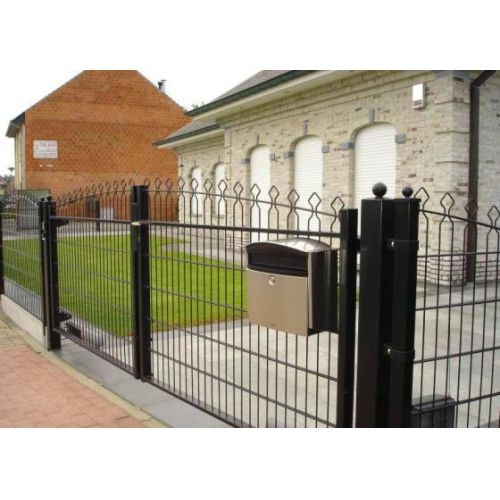

This decorative pyramid mesh fence is very popular in the Middle East. This decorative pyramid fencing is made of high quality rod steel, Double horizontal wire welded to vertical wire, The panel became more strong. And it with unique and beautiful PYRAMID design.

Mesh Panel Fencing features twin 8mm&6mm wires welded either side of 6mm&5mm vertical wires, giving would-be intruders little chance of breaking through. It is made of high quality low carbon steel wire, galvanized wire. Then will Pyramid Mesh Fence hot dipped galvanized,powder coated or pvc coated. It looks modern and attractive. Mainly used for security protection in construction site, residential building, sports field, warehouse, highway or airport service area, railway station, etc.

Double wire mesh panel

The mesh aperture for this twin-wire type of welded mesh fence is 200mm x 50mm. Twin horizontal wires at each intersection give a rigid but flat profile to this mesh fencing system, with vertical wires at 5mm or 6mm and horizontal wires at 6mm or 8mm depending on the height of the mesh panel and the site application. The height of the mesh panel can be from 1.0M up to 2.4M, with the finish galvanized and polyester coated in a range of standard RAL colors. This system not only makes the panel extremely strong and stable but also makes the panel extremely difficult to cut through. The double wire mesh fencing system is among the most comprehensive, cost effective security fencing systems in the world today.

Posts

The Double Wire Mesh Fence are attached with high strength steel posts. The common posts of the double wire mesh fence are SHS tube, RHS tube, Panels are fixed to steel posts using sturdy clamps and secured with pin hex security screws, with no visible fixings on the back of posts.

Installation manner

1)The post popular buried under the ground 600mm-800mm and pouring concrete when installation them.

2) Welded flange base under the post ,and use setscrews to install on the hard ground.
