Hooked Woven Crimped Wire Vibrating Screen Mesh for Coal Mine

Product Description

Min Order Quantity:100 Square Inch

Supply Ability:10000000 Square Meter/Square Meters per Week

Port:Tianjin

Delivery Lead Time:7 days for ready goods

Country/Region:China

City:Shijiazhuang

Product Attributes

  • - Model Number XH-01
  • - Place of Origin China
  • - Supply Type In-Stock Items
  • - Condition New
  • - Color Black
  • - Related Keywords Hooked Woven, Crimped Wire Vibrati, Coal Mine

Description by Manufacturer

Hooked Woven Crimped Wire Vibrating Screen Mesh for Coal mine


Material: black wire, spring steel wire, manganese steel wire and stainless steel wire.
Surface treatment: galvanized or painted.
Wire diameter: 0.71mm - 12.5mm.
Mesh size: 1mm - 100mm.
Hole type: square, rectangular and long slot.

Specification:
Width of the grid: up to 2.200 mm
Length of the grid: up to 5.000 mm or in roll form up to 50 m
Dimensional tolerances in length and width: -0 mm /+1 mesh width (customary)
On request fixed measures with tolerances of +/-2 mm in length and width



Name

Vibrating Screen Mesh

High carbon steel:

65Mn,45#,50#,55#,60#,70#,,72A

Wire diameter

0.8mm-12.7mm,Our finished wire is inspected by third party SGS,Tolerance+_0.03mm .

Aperture/Opening

2mm to 100mm,tolerance +-3%



Weaving type:
Plain weave.
Pre-crimped.
Flat top.
Intermediate crimped.
Lock crimped.


Application:
Mainly used as screen mesh, it is widely used in many industries, such as mining screen, quarrying screen, the screen deck, screen wire for stone crusher, Classifying Trommel; Vibrating screen; Road construction equipment; The Asphaltum mix round equipment and the mine vibrating screens, chemical industry, pharmacy, machinery, protection, construction.


Price

  • Price US$ 15 / Square Inch

Packaging & Shipping

  • - Delivery Lead Time7 days for ready goods
  • - Minimum Order 100 Square Inch
  • - Supply Ability 10000000 Square Meter/Square Meters per Week
  • - Total quantity in Stock1001 – 1500
  • - Delivery PortTianjin
  • - HS Code5911200090
  • - Shipping Career

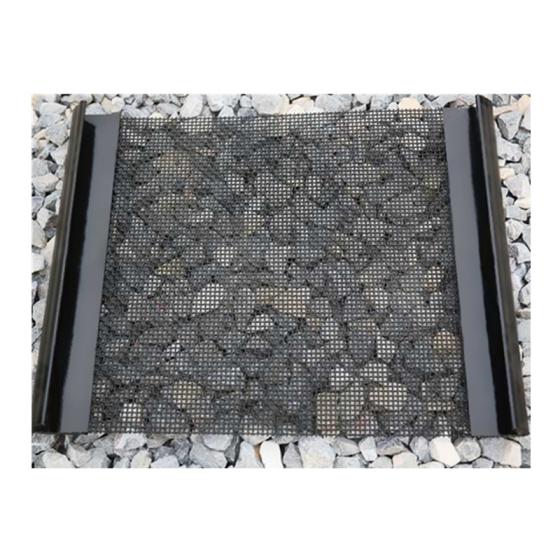

Product Image

Description by Manufacturer

Hooked Woven Crimped Wire Vibrating Screen Mesh for Coal mine


Material: black wire, spring steel wire, manganese steel wire and stainless steel wire.
Surface treatment: galvanized or painted.
Wire diameter: 0.71mm - 12.5mm.
Mesh size: 1mm - 100mm.
Hole type: square, rectangular and long slot.

Specification:
Width of the grid: up to 2.200 mm
Length of the grid: up to 5.000 mm or in roll form up to 50 m
Dimensional tolerances in length and width: -0 mm /+1 mesh width (customary)
On request fixed measures with tolerances of +/-2 mm in length and width



Name

Vibrating Screen Mesh

High carbon steel:

65Mn,45#,50#,55#,60#,70#,,72A

Wire diameter

0.8mm-12.7mm,Our finished wire is inspected by third party SGS,Tolerance+_0.03mm .

Aperture/Opening

2mm to 100mm,tolerance +-3%



Weaving type:
Plain weave.
Pre-crimped.
Flat top.
Intermediate crimped.
Lock crimped.


Application:
Mainly used as screen mesh, it is widely used in many industries, such as mining screen, quarrying screen, the screen deck, screen wire for stone crusher, Classifying Trommel; Vibrating screen; Road construction equipment; The Asphaltum mix round equipment and the mine vibrating screens, chemical industry, pharmacy, machinery, protection, construction.


Price

  • Price US$ 15 / Square Inch

Packaging & Shipping

  • - Delivery Lead Time7 days for ready goods
  • - Minimum Order 100 Square Inch
  • - Supply Ability 10000000 Square Meter/Square Meters per Week
  • - Total quantity in Stock1001 – 1500
  • - Delivery PortTianjin
  • - HS Code5911200090
  • - Shipping Career
