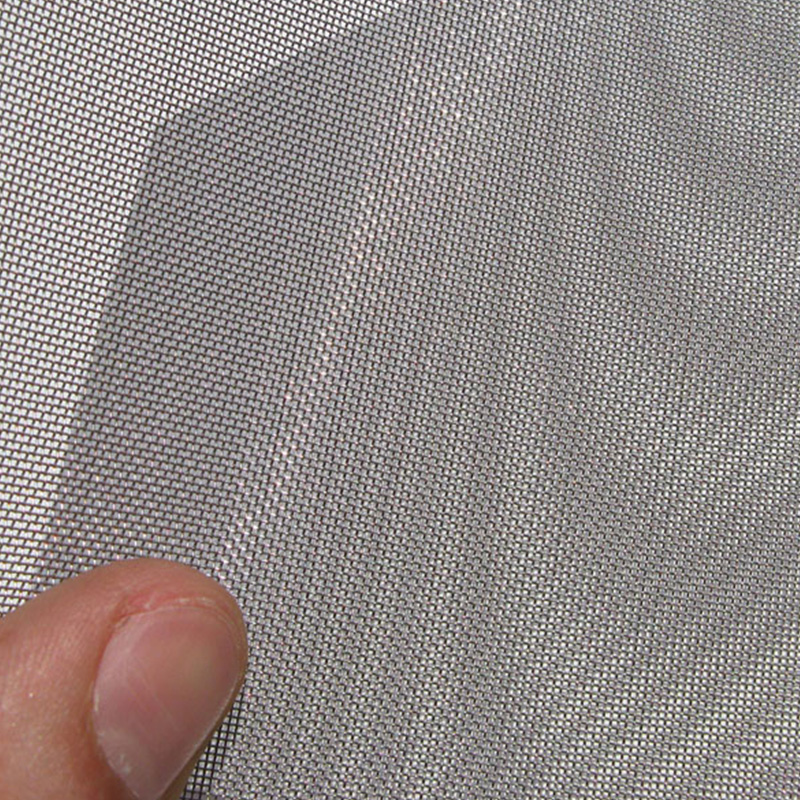

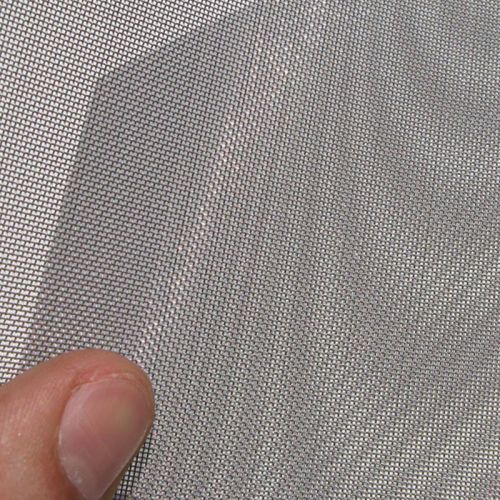

Stainless Steel Plain Woven Mesh

Woven wire mesh or woven wire cloth, is woven by machine. It is similar to the process of weaving clothing, but it is made of wire. The mesh can be woven in different weave styles. Its purpose is to produce solid and reliable products to adapt to various complex application environments.High precision technology makes the production cost of woven wire mesh higher, but it also has a very wide range of uses.

The main materials are 304 stainless steel wire mesh, 316 stainless steel wire mesh, 310 stainless steel wire mesh, 904L stainless steel wire mesh, 430 stainless steel wire mesh, and other stainless steel grade. The most popular ones are 304 stainless steel wire mesh and 316 stainless steel wire mesh, which can be used in most application environments and are not expensive. And some special materials are used to meet the high requirements of the use environment, such as Inconel wire mesh, Monel Wire Mesh, Titanium Wire Mesh, Pure Nickel Mesh, and Pure Silver Mesh, etc.

WOVEN WIRE WEAVE STYLES

The Plain Wire Cloth Weave is the most common wire cloth used and it is one of the simplest wire cloths. The plain wire cloth is not crimped before weaving, and each warp wire passes over/under the wires running through the cloth at 90 degree angles.

Plain Weave Stainless Steel Wire Mesh SPECIFICATIONS

Material: Stainless steel wire 304, 304L, 316, 316L, 310,310S etc.

Weaving type: Plain weave, Twill weave, Dutch twill.

Wire diameter: 0.022mm - 3.5mm.

Aperture size:

Plain weave up to 425 mesh.

Twill weave up to 635 mesh.

Dutch weave up to 400 × 2800 mesh.

Features

Stainless steel wire mesh have the features of wear resistance, heat-resisting, acid-resisting, alkali resisting, durable structure, and corrosion resistance.

Meantime stainless steel woven mesh also have high temperature resistance, good electric conductivity and washing resistance.

Application

In acid, alkali environment conditions sieving and filtering.

Petroleum industry as mud mesh,.

Chemical fiber industry as screen mesh.

Plating industry as acid cleaning mesh.

Packing:

rolls/panels wrapped with waterproof paper then covered with hessian-cloth.

water-proof paper and wooden pallet/box according to request.
