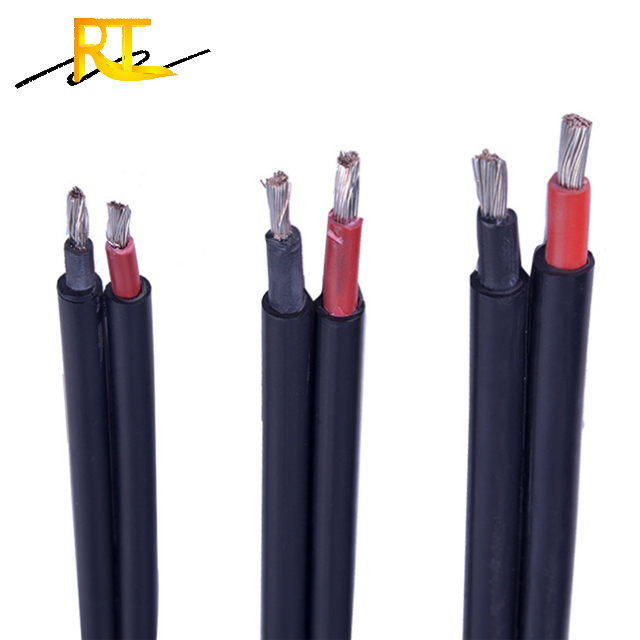

4mm 6mm 16mm DC Solar Cable Tinned Copper Conductor Red Black Twin Cable Electrical Wire

4mm 6mm 16mm DC Solar Cable Tinned Copper Conductor Red Black Twin Cable Electrical Wire

Product Description

Application

Updated harmonised (H1Z2Z2-K) European standard solar cable intended for the interconnection within photovoltaic systems such as solar panel arrays. Suitable for fixed installations, internal and external, within conduit or systems, but not direct burial applications. Our solar cable is ozone-resistant, and is tested for durability. For installations where fire, smoke emissions and toxic fumes create a potential risk to life and equipment.



Construction

H1Z2Z2-K Solar Cable

Conductor

Class 5 flexible tinned copper conductor

Insulation

Halogen-free cross-linked compound

Sheath

Halogen-free cross-linked, flame retardant compound

Sheath colour

Black

Other colours available on request



Solar Cable Standards

TUV Rehinland 2 PfG 1169/08.2007

Ozone Resistance: According to EN 50396 part 8.1.3 Method B

Weathering- UV Resistance: According to HD 605/A1

Acid & Alkaline Resistance: According to EN 60811-2-1 (Oxal acid and sodium hydroxide)

Flame retardant: According to EN 50265-2-1, IEC 60332-1, VDE 0482-332-1-2, DIN EN 60332-1-2

Low smoke emission: According to IEC 61034, EN 50268

Halogen free: According to EN 50267-2-1, IEC 60754-1

Low corrosivity of gases: According to EN 50267-2-2, IEC 60754-2



Characteristics

Voltage Rating (Uo/U)

AC: 600/1000V

DC: 900/1800V

Temperature Rating

Fixed: -40°C to +90°C

Minimum Bending Radius

Fixed: 4 x overall diameter

Flexed: 5 x overall diameter

Maximum Voltage (Umax)

1.8kV DC (conductor/conductor, non earthed system, circuit not under load)

Maximum Conductor Temperature

+120°C (for 20000h)

Test Voltage

6.5kV AC according to BS EN 50395

Sheath Colour

Black

Note

Other colours available on request
