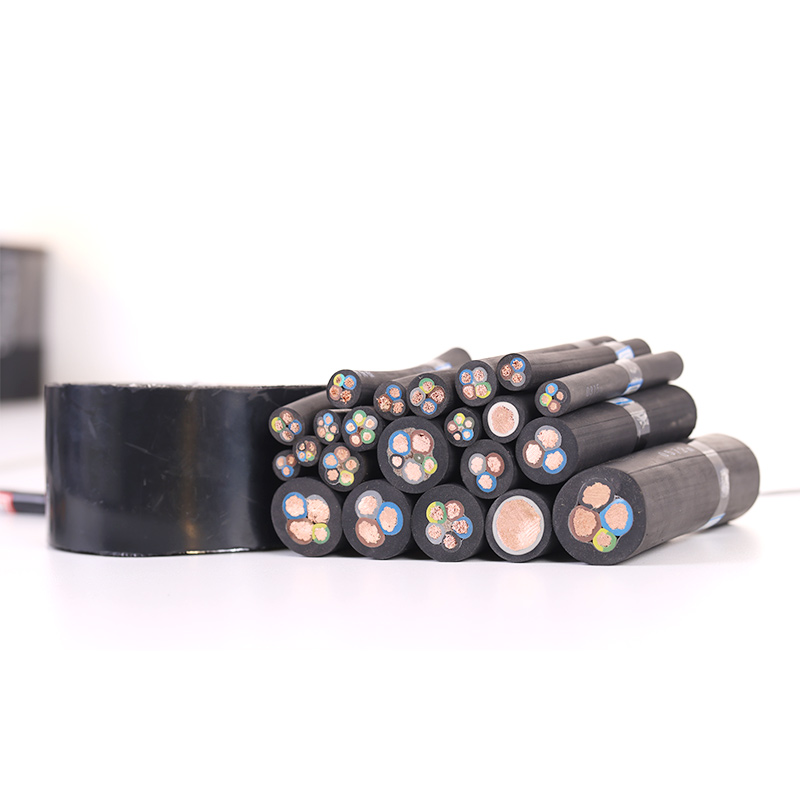

Waterproof Flexible Rubber Submersible Pump Cable

Waterproof Flexible Rubber Submersible Pump Cable

Product Description

Rubber Submersible Cable Main Features

Polyvinyl chloride cable

Excellent sheathing properties when submerged in water
High resistance to moisture, abrasion, oil and liquid particles
Good flexibility and electrical properties

Rubber cables

Designed for potable water applications.
Excellent flexibility in the temperature range.
Very good water absorption properties.
Excellent abrasion and weather resistance.
Suitable for use in harsh environments.
Excellent resistance to oils and other chemicals.
Conforms to CENELEC HD 22.1.S2, DIN VDE 0282 part 810, IEC 245, CEI 20-19 and
BS 6007, BS 6899 standards
Printed on each metre of cable

Rubber Submersible Cable Application

For submersible pumps and irrigation equipment in deep wells.
For wiring between equipment located at the mouth of a well and the motor of a submersible pump installed in a deep well.
For drinking water supply, mine dewatering industry, swimming pools, fountains, offshore drilling rigs
For use in sewage treatment plants, seawater filtration plants, aquariums

Rubber Submersible Cable Characteristics

Voltage Rating Uo/U

450/750V

Test Voltage

2500V

Temperature Rating

Fixed: -15ºC to 70ºC

Flexed: -5ºC to 70ºC

Maximum short circuit temperature: 250ºC

Minimum Bending Radius

Height < 12 mm: 3 x H

Height > 12 mm: 4 x H
