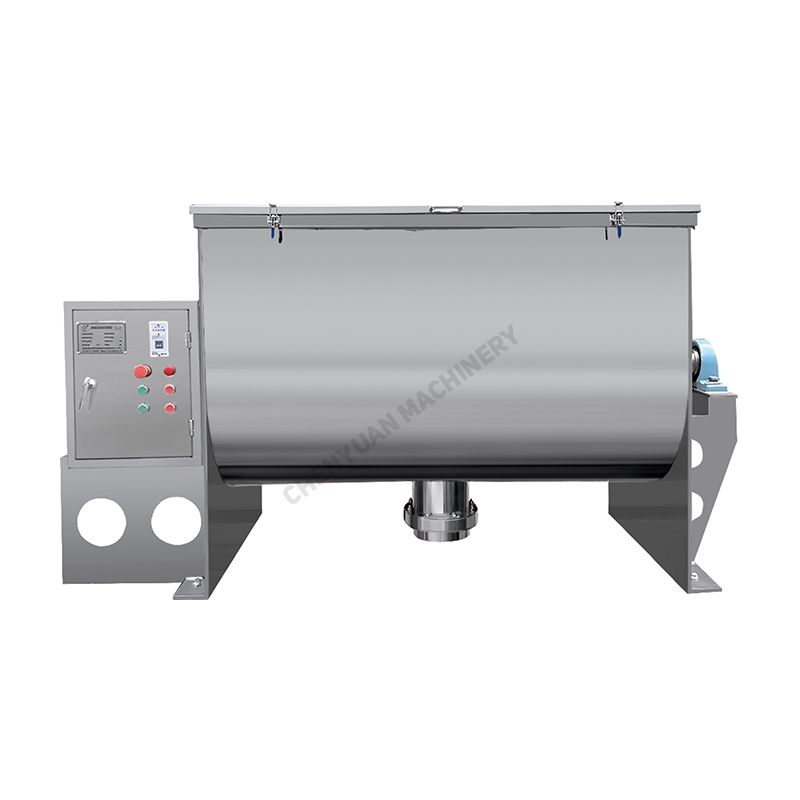

WLDH Horizontal Spiral Ribbon Mixer
WLDH Horizontal Spiral Ribbon Mixer
Product Description
The Horizontal Spiral Ribbon Mixer from ChenYuan is an advanced, high-efficiency mixing equipment designed for a wide range of applications. It provides uniform blending with low energy consumption and minimal material damage. This versatile mixer is ideal for industries that require precise and consistent mixing, including pharmaceuticals, food processing, chemicals, and construction.
Main Overview
The horizontal ribbon mixer consists of a U-shaped container, a ribbon agitating blade and a transmission component; the ribbon-shaped blade is generally made into a double or triple layer, and the outer spiral gathers the material from both sides to the center, and the inner spiral the material transportes from the center to the sides to form a convective mixing. The ribbon mixer has good effects on the mixing of viscous or cohesive powders and granules and the mixing of liquid and paste materials in the powder. The cylinder cover can be made into a fully open door to facilitate cleaning and replacement of the equipment or product.
Technical Parameter
|
Model |
Full volume(M³) |
Loading coefficient |
Motor power(kw) |
Dimensions (L×W×H) |
Equipment weight |
| WLDH-0.1 | 0.1 | 0.4-0.8 | 2.2 | 1190×740×770 | 330 |
|
WLDH-0.3 |
0.3 |
0.4-0.8 |
5.5 |
2030×630×980 |
720 |
| WLDH-0.5 | 0.5 | 0.4-0.8 | 7.5 | 2320×730×1130 | 980 |
|
WLDH-1 |
1 |
0.4-0.8 |
11 |
2800×920×1320 |
1700 |
| WLDH-1.5 | 1.5 | 0.4-0.8 | 15 | 3180×1020×1550 | 1800 |
|
WLDH-2 |
2 |
0.4-0.8 |
15 |
3310×1120×1640 |
2100 |
| WLDH-3 | 3 | 0.4-0.8 | 18.5 | 3750×1290×1820 | 3000 |
|
WLDH-4 |
4 |
0.4-0.8 |
22 |
4200×1400×1990 |
3980 |
| WLDH-5 | 5 | 0.4-0.8 | 22 | 4220×1500×2100 | 4620 |
|
WLDH-6 |
6 |
0.4-0.8 |
30 |
4420×1610×2260 |
6180 |
| WLDH-8 | 8 | 0.4-0.8 | 37 | 4700×2150×2470 | 8200 |
|
WLDH-10 |
10 |
0.4-0.8 |
45 |
5520×2960×2720 |
8920 |
| WLDH-12 | 12 | 0.4-0.8 | 45 | 5720×3010×2840 | 9520 |
|
WLDH-15 |
15 |
0.4-0.8 |
55 |
5840×3540×2940 |
9950 |
