Teardrop Pallet Racks

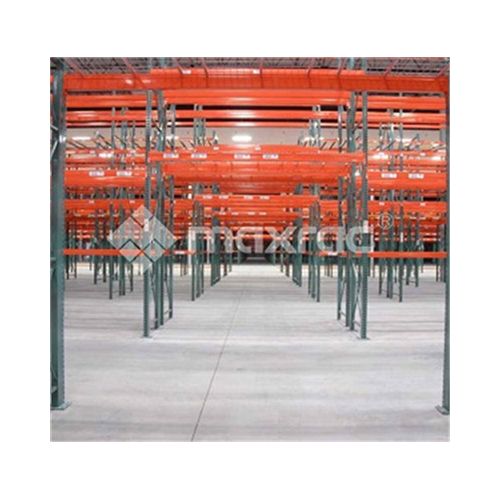

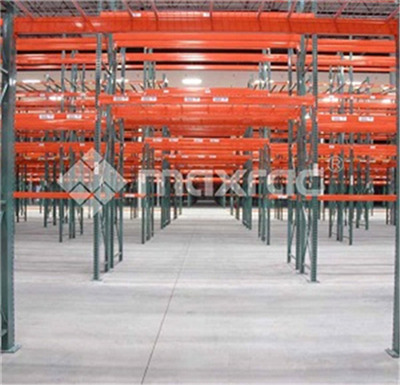

Teardrop Pallet Rack is the most widely utilized pallet racking storage systems in US. It is design for fast and simple assembly without the need for clips or other fasteners. Colors are most often green uprights and orange beams.

Product Description

Teardrop Pallet Rack is the most widely utilized pallet racking storage systems in US. It is design for fast and simple assembly without the need for clips or other fasteners. Colors are most often green uprights and orange beams. All products have been designed and tested based on RMI guidelines.

In most case the the type of hole pitch upon on your preference. The 76.2mm(Superlock pallet racking) and 50mm pitch pallet racking(Ezlock pallet racking) are available.



Advantage:

1. Designed to be compatible with most teardrop pallet rack styles

2. Simple installation and reconfiguration with no special tools or training required

3. Easily move beam levels to accommodate any kind of product sizes



Specification:

Upright  80x70, 90x70, 105x70,   120x85mm
Hole Pitch  50.8mm
Box Beam size 80x50, 90x50, 100x50, 110x50, 120x50,   130x50, 140x50, 160x50
Upright Thickness 1.8/2.0/2.5/2.75/3.0 mm
Beam Thickness 1.5/1.8/2.0 mm
Frame Height Up to 12000mm
Beam Length Up to 6000mm
Capacity per layer 500-4000KG
Finsh Powder coating (different color acceptable) or hot dip galvanized on request



FAQ:

Please inform us of the following information for quick racking solution:



Length of rack or bays wide

Depth of rack or pallet deep

Level of rack

Height of each level

Pallet size

Loading capacity of per pallet
