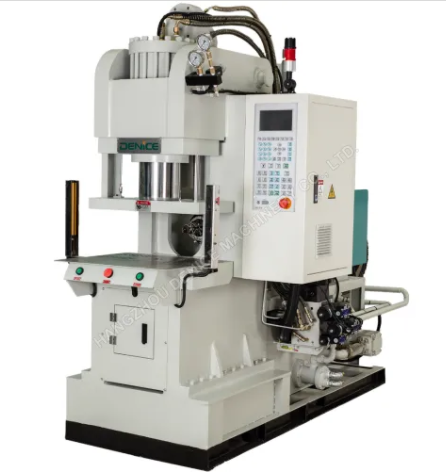

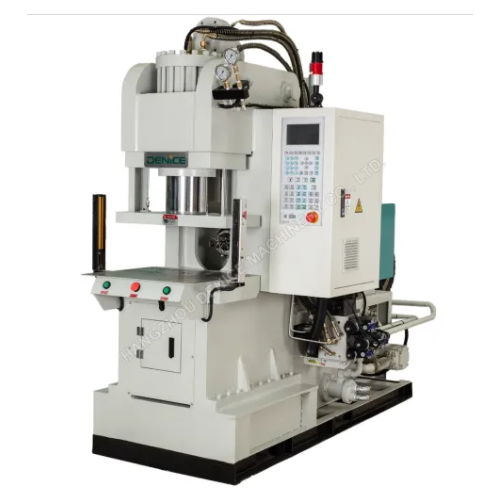

plug making machine DC-450
Our Plug Making Machine is engineered for precision and efficiency, making it the ideal choice for a wide range of industries.
Product Description
Product Description
* Vertical clamping, horizontal injection, ease to put and take out items.
· * No column, three sides open, tending to produce long plastic products.
· * Completely model of the machine, in order to increase production efficiency double slide table (DC-DS) or rotary table（DC-R）series can be selected.
Specification
| Specification | |||||
| Model | Unit | DC-450 | |||
| (Injection Unit) | Screw diameter | mm | Ф32 | Ф36 | Ф40 |
| Maximum injection pressure | Kg/cm2 | 1531 | 1210 | 980 | |
| Theoretical shot volume | cm3 | 105 | 132 | 163 | |
| Maximum shot weight | g/Oz | 97(3.4) | 122（4.3） | 151（5.3） | |
| Injection rate | cm3/sec | 66 | 84 | 104 | |
| ( Clamping Unit ) | Clamping force | ton | 45 | ||
| Minimum mold thickness | mm | 175（Can be customized according to customer requirements） | |||
| Opening stroke | mm | 200 | |||
| Open daylight | mm | 375（As required） | |||
| Nozzle Center Height | mm | 150±20 | |||
| Nozzle Center Distance | mm | 75 | |||
| Ejector force | T | 1.1 | |||
| Ejector stroke | mm | 88 | |||
| (Others) | Pump motor power | Kw | 7.5 | ||
| Hydraulic system pressure | Kg/cm2 | 140 | |||
| Barrel heating power | Kw | 4.75 | |||
| Total wattage | Kw | 12.25 | |||
| Oiltank capacity | L | 184 | |||
| Machine weight (approx.) | T | 3.2 | |||
| Machine dimensions(approx.) | m | 2.2×0.9× 2.1 | |||
Plug Making Machine with Rotor Making Capabilities
Our Plug Making Machine is engineered for precision and efficiency, making it the ideal choice for a wide range of industries. Here's why it stands out:
Vertical Clamping, Horizontal Injection: Our Plug Making Machine features vertical clamping and horizontal injection, ensuring ease of use and efficient item placement and retrieval. This design enhances your production process by streamlining the workflow.
Space Optimization: With a column-free structure and three-sided accessibility, our machine is optimized for the production of long plastic products. This unique feature sets us apart, as it allows you to create items that were once challenging to manufacture with ease and precision.
Tailored for Efficiency: At Hangzhou DENICE, we understand that efficiency is key. That's why our Plug Making Machine is meticulously designed to maximize production output. Whether you require a double slide table (DC-DS) or rotary table (DC-R) series, we offer flexibility to choose the configuration that suits your specific needs, ensuring a seamless and productive manufacturing process.
Why Choose Hangzhou DENICE Machinery Co., Ltd.?
-
Uncompromising Quality: We are unwavering in our commitment to delivering the highest quality machinery. Each machine is built to withstand rigorous production demands, ensuring longevity and reliability.
-
Versatile Solutions: With our standard series machines, single slide plate series, double slide plate series, and rotary table series injection molding machines, we cater to a wide spectrum of industry needs. Moreover, we can customize special machines with industry-specific characteristics to meet your unique requirements.
-
Innovation at the Core: Innovation is at the heart of our operations. We continuously invest in research and development to stay at the forefront of technological advancements, ensuring that our customers benefit from the latest manufacturing breakthroughs.
At Hangzhou DENICE Machinery Co., Ltd., we don't just build machines; we forge partnerships. Your success is our success, and we are dedicated to providing the machinery and support you need to thrive in a competitive market.
Choose precision. Choose efficiency. Choose Hangzhou DENICE Machinery Co., Ltd. Experience the future of manufacturing today.
