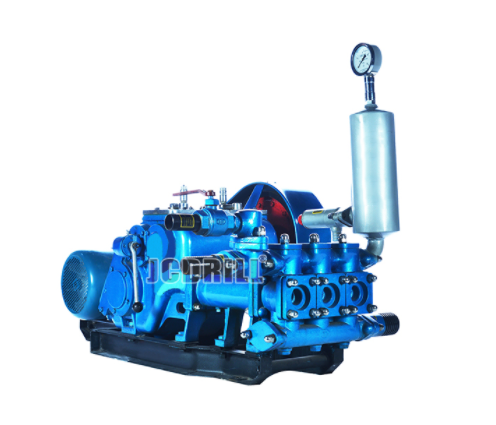

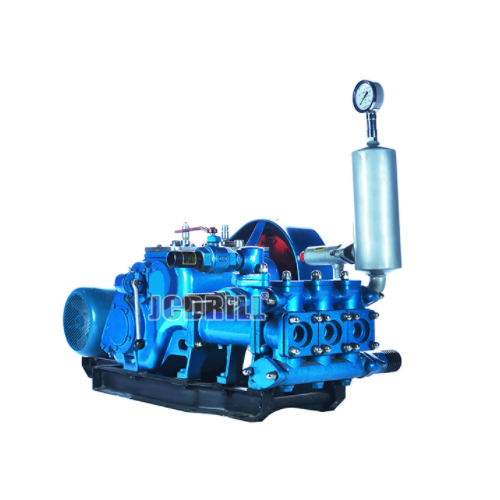

BW 250 water Drilling Mud Pump, 250L/min with 25bar triplex. single acting reciprocation piston pump
Product Description
BW 250 water Drilling Mud Pump, 250L/min with 25bar triplex. single acting reciprocation piston pump
BW250 mud pump are mainly used for irrigation agricultural machinery.the main characteristic is the high pressure, lift much, less energy consumption, easy operation, high quality and durable, easy to move, especially for mountain terraces of irrigation.
They are also the main equipment of the geological survey, the main role in the process of core drilling boreholes is to supply fluid(mud or water), making it circulate during drilling and carry rock waste back to the ground, in order to achieve and maintain the bottom hole clean and lubricate drill bits and drilling tools with cooling.
>> Characteristics
>> Projects: Construction drilling of the projects e.g. prospection, geotechnical investigation(geological exploring), railway, road, port, bridge, water conservancy and hydropower, tunnel, well, industrial and civil construction;
>> Exploration: Coal mining exploration, Ore exploration;
>> Water well: Small hole diameter water well drilling;
>> Pipe-installing: Geothermal pipe-installing for heat pump;
>> Foundation piling: Small-diameter hole foundation piling drilling.
>> Specification
Horizontal, three-cylinder single-acting, reciprocal piston pump, used to supply flushing fluid to the drilling well in engine
Name | BW-250 | |||||||
Type | Horizontal,Three-cylinder single-acting, | |||||||
reciprocal piston pump | ||||||||
Stroke | 100 mm | |||||||
Liner Dia | 80mm | 65mm | ||||||
Gears | I | II | III | IV | I | II | III | IV |
Pump Speed | 200 | 116 | 72 | 42 | 200 | 116 | 72 | 42 |
(times/min) | ||||||||
Displacement | 250 | 145 | 90 | 52 | 166 | 96 | 60 | 35 |
(liter/min) | ||||||||
Pressure | 2.5 | 4.5 | 6 | 6 | 4 | 6 | 7 | 7 |
(MPa) | ||||||||
Volume fraction | 85% | |||||||
Combined efficiency | 72% | |||||||
Input power | 15 Kw | |||||||
Triangle | Type B ×5 Groove 410 mm | |||||||
leather belt | ||||||||
pitch dia. | ||||||||
Input speed | 500 r/min | |||||||
Max | 2.5 m | |||||||
Suction head | ||||||||
Suction | φ76 mm | |||||||
Pipe Dia. | ||||||||
Discharge | φ51 mm | |||||||
Pipe Dia. | ||||||||
Measurement | 1100 × 995 × 650 mm | |||||||
Weight | 500 Kg |
