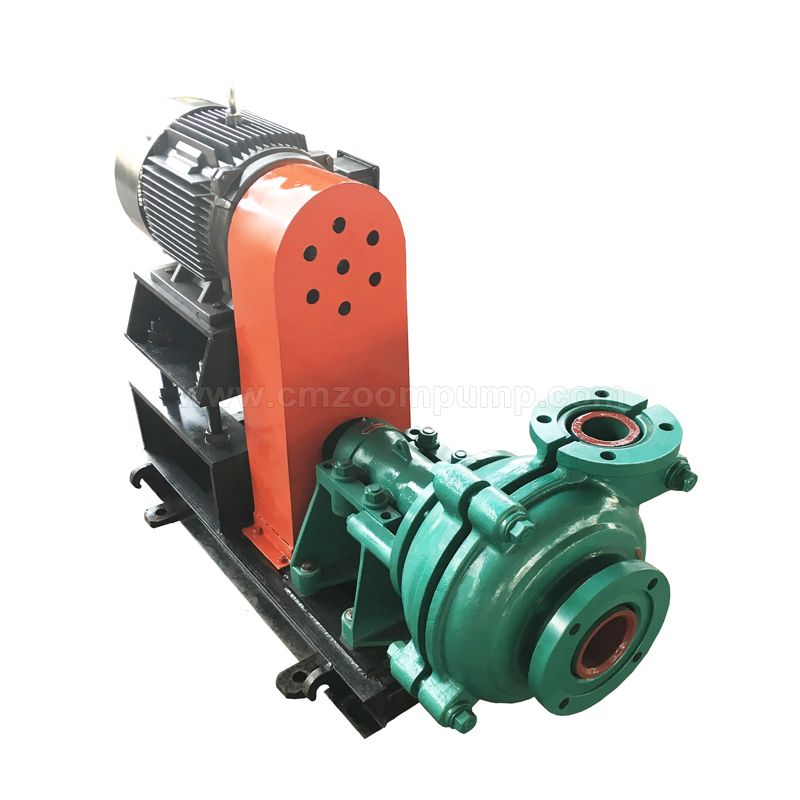

Horizontal Cantilever Centrifugal Slurry Pump

The type CH slurry pump is a horizontal, double-layer, end suction design, with a tangential discharge nozzle. Engineered to handle high concentrations of fine abrasive solids in suspension or corrosive/abrasive mixtures.CH(R) type pumps are suitable for conveying liquids containing suspended solid particles in metallurgy, mining, coal, electric power, buildingmaterials and other industrial sectors. Such as concentrate, tailings, ash, cinder, cement, soil, gravel and other strong hardness, strong corrosion, high concentration slurry. The temperature of the solid-liquid mixture to be transported generally does not exceed 80°C, and the weight concentration can reach 60%.

Slurry transportation is at the heart of a mine site, so it’s crucial your pumping equipment is up to the task. Is your existing pump vibrating, cavitating or leaking? Does your pump shaft keep breaking? Maybe you’re experiencing problems with wear life? Whatever your issue, our industry-leading Chongmu Fluid Machine Horizontal Cantilever Centrifugal Slurry Pumps can help. Designed to offer high performance, reliability and low total cost of ownership, when you purchase a Chongmu Fluid MachineHorizontal Cantilever Centrifugal Slurry Pump, you aren’t just getting a heavy-duty product which can handle highly abrasive slurries; you’re gaining access to our global support network of expert service teams, who will work with you to solve your problems and improve your slurry transportation process.Welcome to Contact Us if you are interested in our products.

• Wide range of high quality materials (metallic as well as rubber)
• Optimized high efficiency hydraulics ensure high efficiency and minimized wear in the largest operating range
• Heavy-duty bearings offer LB10 bearing life of more than 50,000 hours
• Vertical design with hydraulics available
• Fast and effective maintenance due to easy assembly and dismantling of main pump parts

What is a centrifugal pump?

Centrifugal pump is the most common type of slurry pump. These pumps utilize a rotating impeller to move multiple type of slurry which varies in concentration of solids, size and sahpe of solid particles through a standard centrifugal pump to the target llocation.

What is horizontal cantilever centrifugal slurry pump used for?

The CH(R) type pump is a horizontal cantilever centrifugal slurry pump developed by our company, based on the needs of users and combined with slurry pump technology at home and abroad. The equipment is ideal for conveying solid-liquid mixtures containing suspended solid particles (such as ore, ash, coal slime, silt and gravel, etc.)

Specialized in the centrifugal pump industry for more than 20 years, Chongmu also provides best quality Vertical Slurry Pump, Centrifugal Water Pump, Sewage Pump whloesale with thoughtful custom and after-sale service, welcome to contact us for detailed information!

Features Of Horizontal Cantilever Centrifugal Slurry Pump:

1. Hydraulic model: a hydraulic model designed with CFD flow simulation technology, with high hydraulic efficiency;

2. Double-layer pump casing structure: the inner layer （volute) is made of high-chromium alloy anti-wear cast iron, and the outer layer (pump body, pump cover) is ordinary gray cast iron or ductile iron,

3. The pump body and pump cover can be reused by replacing the wearing parts (volute), which saves costs;

4. Bearing body: It adopts a cylindrical structure, and the axial position of the rotor part can be easily adjusted through the thread, so that the water pump can run safely and efficiently;

5. Lubrication: The bearing adopts grease lubrication, compact structure, clean and hygienic;

6. Sealing form: Packing seal or expeller seal is adopted, and mechanical seal can also be adopted according to user requirements.

7. Discharge outlet position: It can be installed in 8 different positions at 45° intervals according to needs.

8. We can also produce CM, CHH series slurry pumps.

9. The pumps has wide performance range, good cavitation performance and high efficiency. All series of products can adopt multi-stage series technology to meet long-distance transportation.

Applications Of Horizontal Cantilever Centrifugal Slurry Pump:

CH(R) type slurry pump is mainly used in mineral processing, coal processing plant qualified media transport,metallurgy, coal, power plants, building materials and other industrial sectors to transport liquids containing suspended solid particles.  Horizontal Cantilever Centrifugal Slurry Pump also can be used in the tailings transport of mines, flue gas desulfurization of the peripheral system,part of the main slurry system without sharp edges CW≤30% median particle size of small occasions.The Horizontal Cantilever Centrifugal Slurry Pumps are suitable for metallurgy, mining, coal, electric power, building materials and other industries.

From horizontal and vertical slurry pumps designed for heavy-duty applications including mill discharge and tailings processing to submersible, horizontal dewatering and Mixed Flow Pumps, there’s a Chongmu Fluid slurry pump to suit your needs. When you need a slurry pump for mining, chemical or industrial applications, Speak To Our Team Of Chongmu Fluid Pump Experts, trusted for over 20 years.

• Mining and mineral processing
• Aggregates (sand and gravel)
• Power (bottom ash, lime slurry for flue gas desulphurization(FGD))
• Food industry
• Wastewater
• Chemical slurries

The performance parameters are as follows:

Flow rate: 3m³/h~ 5400m³/h,

Head: H=5m~118m,

Speed: n=200～3800r/min,

Operating temperature: T ≤ 100 ℃

Horizontal Cantilever Centrifugal Slurry Pump Structure:

(1) Metal lined slurry pump:

(2) Rubber lined slurry pump:

Designed to offer high performance, reliability and low total cost of ownership, when you purchase a Chongmu Fluid MachineHorizontal Cantilever Centrifugal Slurry Pump, you aren’t just getting a heavy-duty product which can handle highly abrasive slurries; you’re gaining access to our global support network of expert service teams, who will work with you to solve your problems and improve your slurry transportation process.Welcome to Contact Us for more information.
