Thermal Insulated Wall Systems



Introducing YW Kuku Trading Company, a pioneering force in the realm of insulated, fire-rated, and architectural facade systems, as well as state-of-the-art roofing systems in China. As a beacon of innovation, our mission is to redefine excellence in construction, and our unwavering commitment is encapsulated in our flagship product: THERMAL INSULATED WALL PANELS.

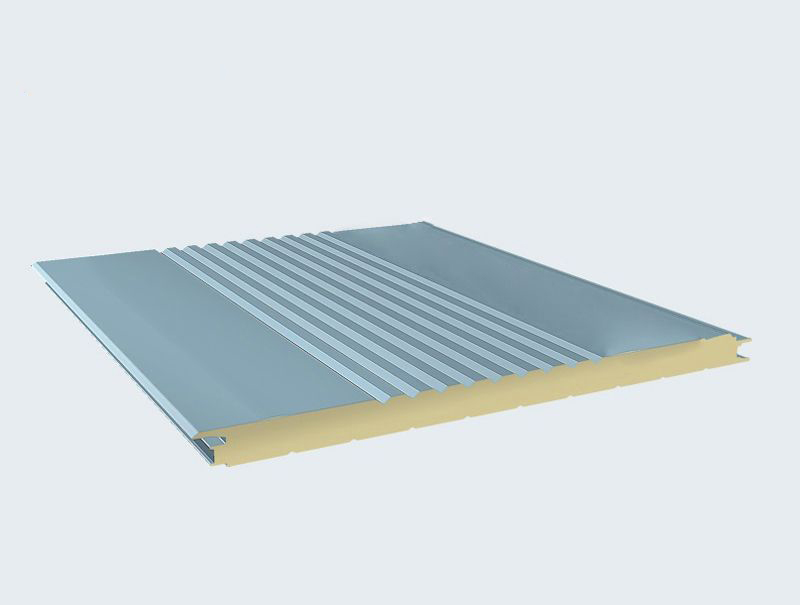

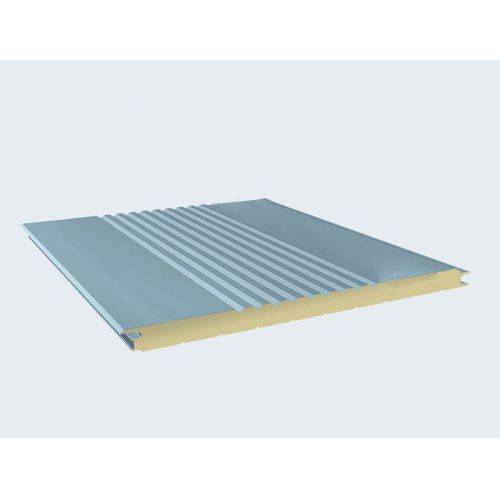

The sandwich panels with insulating core in rigid plastic foam (PUR & PIR), consist the ideal solution for façade claddings and partition walls with increased thermal insulation requirements. It's easy and fast to install vertically or horizontally and is available in a variety of products and applications with a range of colours and profiles.



Splend insulated metal panels are eco-friendly products and highly sustainable for construction. The core of each panel is made from polyurethane (PUR/PIR), which is environmentally friendly. Since our insulated metal panels have a high R-Value, it allows for building constructed by Splend to have an improvement in energy efficiency.



The outer layer of splend insulated metal panels consists of color Steel on each side that sandwiches the pu foam core. The edges of each sp insulated metal panel have a “Z-lock” snap to install design that allows our panel systems to eliminate thermal bridging, otherwise known as heat loss.

Advantages:

The Benefits of Thermal Insulated Wall Systems are as follows,



▼Energy-saving, Eco friendly

▼Fireproof (Class B1)

▼Waterproof, Wetproof

▼Sound Insaltion

▼Easy & Fast Installation

▼Heat Insulation & Preservation

▼Lightweight Economy



Using Splend panels will give you confidence in an environmentally friendly, highly thermal efficient, and durable building. It’s a victory for you and the environment!



Application:

The Application of Thermal Insulated Wall Systems are as follows,



The Thermal Insulated Wall Panels are applied as external walls and internal division walls, installed vertically or horizontally on single- or multi-span structure.



▼Industrial halls

▼logistic centers

▼Offices

▼Clean Rooms

▼Warehouses

▼sport halls

▼Food Processing

▼Food Preparation Areas

▼Commercial Buildings



Detailed Information:

Product Detail



Product Fixing



At YW Kuku Trading Company, we recognize that every detail counts when it comes to architectural perfection. Our Thermal Insulated Wall Panels go beyond aesthetics and functionality – they embody meticulous craftsmanship in their installation. With two distinct fixing options – Visible Fixing and Concealed Fixing – we ensure that your architectural vision is realized with precision, stability, and finesse.



The Visible Fixing method brings forth a sense of rugged elegance. As each panel is secured to the structure, the fixings are intentionally exposed, creating a dynamic interplay between the panels and their hardware. This method is ideal for designs that seek to make a bold statement, where the hardware becomes an integral part of the aesthetic narrative.



For those who prioritize a seamless and uncluttered visual appeal, our Concealed Fixing method offers a solution of refined sophistication. Here, the fixings are ingeniously concealed behind the panels, leaving a clean and sleek surface unmarred by visible hardware. This method is perfect for designs that demand a polished, uninterrupted finish.









Surface Textures





Elevate your architectural canvas with our Thermal Insulated Wall Panels, each adorned with a selection of captivating surface textures that redefine the tactile and visual experience. Immerse yourself in a realm of textural luxury that amplifies the aesthetics of your spaces.



The Flat surface texture is an ode to understated sophistication, offering a canvas for your design aspirations to flourish.

The Micro-Rib texture. Delicate ridges  create a tactile harmony, adding a layer of finesse to your spaces.

The Square-Rib texture make a sense of structured elegance. This texture strikes a balance between visual intrigue and tactile engagement.

The Embossed texture transforms your walls into immersive works of art. Intricate designs come alive under your touch, each contour inviting you to appreciate the craftsmanship.









Specification



Product Core Options	PUR/PIR
Core Thickness	40/50/60/75/80/100/125/150/200/220mm
Core Material Density	40 ±2kg/m³
Steel Thickness	0.3mm-0.8mm
Cover Width	400-1150mm
Lengths	Not more than 11.8m for container
Metal Type	Hot dip zinc/, Al-Zn coated/ stainless steel/ /aluminum coated
Steel Option	BlueScope, Baosteel, Union steel, YIEH PHUI, etc.
Coating Option	PE/PVDF/SMP/HDP
Colour Option	RAL Colour or Custom Colors
Fire Resistance	Non-flammable
Fire Rating	Grade B1
Fixing details	Visible fixing and concealed fixing
Profile	Flat，Micro-rib, Square-rib, V8-rib, Wave and Embossed





Installation



1, First of all, it must carry on the construction preparation before installation, include personnel, materials, etc. All will be well prepared.



2, Before the installation of PUR/PIR wall panel, it should check whether the verticality and levelness of metope purlin installation requirements, wall frame column vertical degree meets the requirement.



3, Before installation PUR/PIR wall panel, it should first mounting plate bottom water retaining plate and the bottom of the window to block water board, water retaining plate and wall frame beam connection with self tapping screw fixation.



4, PUR/PIR wall panel links with ground.



Cooperate With Us



In a sea of possibilities, YW Kuku Trading Company is your compass to uncharted excellence. Our THERMAL INSULATED WALL PANELS redefine your perception of insulation and aesthetics, merging them into a symphony of innovation.

Embrace a partnership that transcends products – with YW Kuku, you invest in a transformative journey. Your vision finds resonance in the elegance of THERMAL INSULATED WALL PANELS, and your aspirations are nurtured by the legacy of PU PANEL WALL mastery.

Welcome to a world where construction isn't just a project; it's an art form crafted with precision, care, and a touch of YW Kuku excellence. Contact us now!
