Graphite Boat for Lithium Battery Powder Sintering

Product Description

Min Order Quantity:10 Piece

Supply Ability:5000pcs per month

Port:Shanghai

Delivery Lead Time:30~90 days for OEM

Country/Region:China

City:Yichun

Product Attributes

  • - Place of Origin China
  • - Supply Type OEM Service
  • - Condition New
  • - Color gray
  • - Related Keywords graphite boat, graphite boats, graphite sintering boat, graphite tray, graphite box

Description by Manufacturer

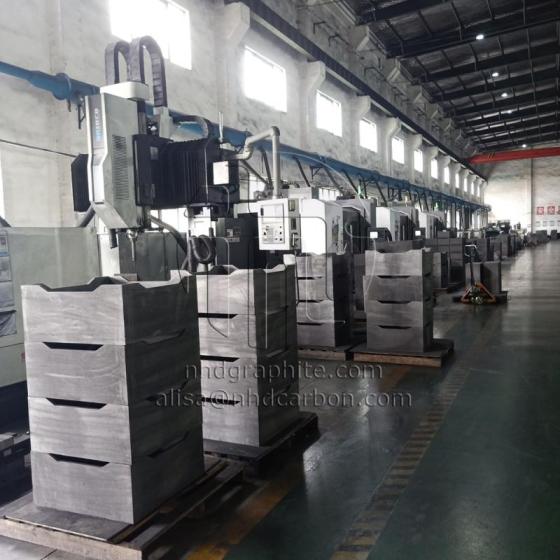

What is Graphite boat?

Graphite box (graphite boat) itself is a carrier, we can put the raw materials and parts we need to locate or finalize the design together in which high temperature sintering molding. Graphite box is made of artificial graphite by mechanical processing. So sometimes it's called a graphite box, sometimes it's called a graphite boat. The graphite box is mainly used in various vacuum resistance furnaces, induction furnaces, sintering furnaces, brazing furnaces, ion nitridation furnaces, tantalum niobium smelting furnaces, vacuum quenching furnaces, etc.

Performance characteristics of graphite boat / graphite box / graphite sagger

1. Thermal stability: for the use of hot and cold conditions, special treatment to ensure the reliability of product quality.
2. Corrosion resistance: uniform and fine material structure, delay the erosion of the use of degrees.
3. impact resistance: the ability to withstand high thermal shock, so the process can be assured.
4.Acid resistance: the addition of special materials significantly improved the physical properties of the material, excellent performance in terms of acid resistance, and greatly extend the service life of graphite.
5. High thermal conductivity: high content of fixed carbon ensures good thermal conductivity, shortens dissolution time, and significantly reduces energy consumption.
6. Pollution control: strict control of the material composition, to ensure that the pollution of the material greatly reduced.
7. Quality stability: uniform static pressing forming technology, process and quality control system more fully ensure the stability of the material.
8. Advanced processing technology, tolerance and appearance are better than customer standards;
9. With professionals who are familiar with customers' related industries, they can provide professional customization and supporting services.


Instructions for use of graphite boat / graphite box

1. The columns of the graphite box must be vertical and stable: the columns of the graphite box must be supported by fire-resistant clips to prevent them from swaying at high temperatures. The graphite box column on the outer ring shall not be inclined to the kiln wall, but may be slightly inclined to the center of the kiln.

2. After filling the kiln, seal the kiln door: the kiln door should preferably be built with refractory bricks on the inner and outer layers. The inner layer should be flush with the inner wall of the kiln wall, and the outer layer should be flush with the outer wall of the kiln wall, and each layer should be painted. Fire clay. When building the kiln door, leave a fire observation hole, and the position of the fire observation hole should be fixed every time the kiln is installed to avoid sudden high and low, large and small, which will affect the correct temperature measurement.

3. The height of the graphite box column: it should be determined according to the kiln structure and the temperature rise of various parts in the kiln. In general, the graphite box column near the vent should be lower to reduce the resistance of the flame to rise. Although the graphite box column in the middle can be taller, there should be enough space between the top of the kiln and the rising flames to converge here, and then redistribute them to the fire channels of the fire absorbing holes.

Price

  • Price US$ 50 ~ 600 / Piece

Packaging & Shipping

  • - Packingwooden box
  • - Package Weight 500 ( Kilograms )
  • - Delivery Lead Time30~90 days for OEM
  • - Minimum Order 10 Piece
  • - Supply Ability5000pcs per month
  • - Total quantity in Stock1 - 10
  • - Delivery PortShanghai
  • - HS Code681510
  • - Shipping Career

Product Video
