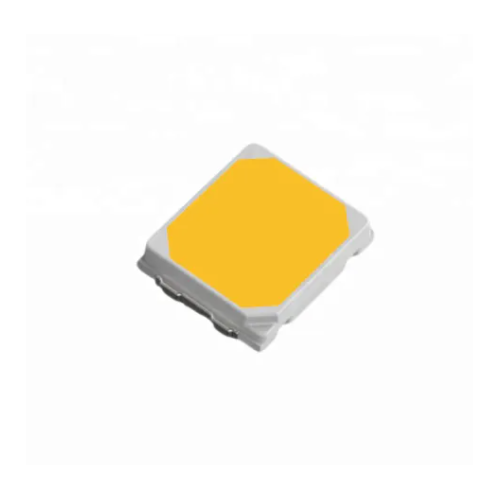

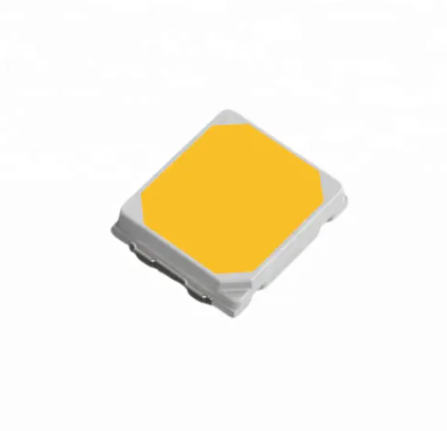

2835 3V 60mA 24-34LM SMD LED

Moonleds 2835 0.2w series is a superior overall system solution for projects in need of excellent quality of light, high lumen output and high efficacy. High bright compact design, and industry standard smd package 0.2w 2835 are available in a broad range of CCTs, CRIs to meet your specific needs. High bright compact design, widely used in various lighting applications.

Product Description

2835 0.2W 3V 60mA 24-34LM SMD LED Factory Price



Moonleds 2835 0.2w series is a superior overall system solution for projects in need of excellent quality of light, high lumen output and high efficacy. High bright compact design, and industry standard smd package 0.2w 2835 are available in a broad range of CCTs, CRIs to meet your specific needs. High bright compact design, widely used in various lighting applications.



Product Features

-2835 0.2W 3V 60mA 24-34V SMD LED

-Compact SMD design with high brightness

-Copper base with ultra stability

-0.2W 0.5W 1W available

-Package Size: 2.8(L) ×3.5(W) ×0.65(H) mm

-White colors are available in(2300K- 25000K)

-Super long lifetime: > 30000 hrs



Product Specification


Standard If: 60mA   Typical  Vf: 3V   Power: 0.2W
Color CCT(K) CRI(Ra) 2.8-3.4V @60mAlm Part Number Efficacy(lm/w)@60mA
Warm White 2900-3200 70 26-28 MN-S2835E13C3026A 140-150
Neutral White 3800-4200 70 28-30 MN-S2835E13C4028A 150-160
Pure White 4700-5300 70 28-30 MN-S2835E13C5028A 150-160
Pure White 5500-6000 70 30-32 MN-S2835E13C5530A 150-160
Cool White 6000-6500 70 30-32 MN-S2835E13C6030A 140-150







CRI 80 0.2W 2835 SMD LED specifications





Standard If: 60mA   Typical  Vf: 3V   Power: 0.2W
Color CCT(K) CRI(Ra) 2.8-3.4V @60mAlm Part Number Efficacy(lm/w)@60mA
Warm White 2900-3200 80 24-26 MN-S2835E13C3024B 140-150
Neutral White 3800-4200 80 26-28 MN-S2835E13C4026B 150-160
Pure White 4700-5300 80 26-28 MN-S2835E13C5026B 150-160
Pure White 5500-6000 80 28-30 MN-S2835E13C5528B 150-160
Cool White 6000-6500 80 28-30 MN-S2835E13C6028B 140-150





Product Dimension

Tolerance +-0.1mm



2835 3V 60mA 24-34LM SMD LED
