Installed the America solar tile roof pv mounting & asphalt roof mounting system 1kw

Detailed Product Description

1)ISO 9001,AS/NZS 1170
2)Fit all kinds of panels
3)Warranty: 10 years
Model Number: America solar tile & asphalt roof

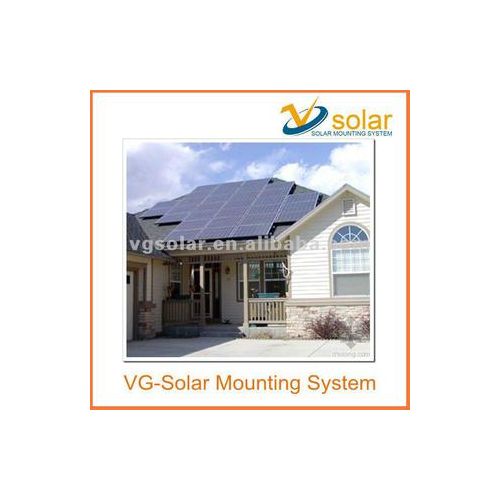

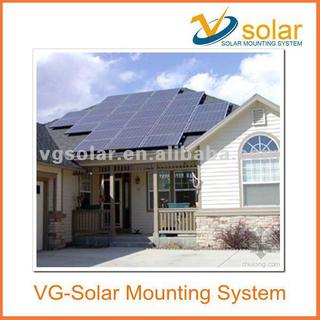

About VG-Solar Pitched Roof & Asphalt roof

VG-Solar Pitched Roof mouting System is applicable to a large array photovoltaic system in open areas.

This system is designed to engineer with a minimum amount of installed footing at greatly reduced labor. The system integrates with ordinary OD60*3.5 galvanized and paint steel pipe and anodized aluminum GR rail.

The special tilt-in module, the clamp and the U bolt make the installation easy and quick. The customized length can eliminate the weld and cut onsite to keep the high anticorrosive performance, the structure strength and the appearance.

Techincal Information

Material	Aluminum AL6005-T5 & SUS 304
Standard	AS/NZS 1170, TUV
Install Site	Roof
Install Angle	0-60 degree
Max Building Height	20 m
Wind load	130mph(60m/s)
Snow Load	30psf(1.4kN/m2)
Anticorrosive	Anodized or hot galvanized
Color	Natural or Customized
Warranty	10 years
Duration	More than 20 years

Benifits

1. Easy to install. The tilt-in module can be put into the extruded rail from the any location and can be high pre-assembly with the clamp and roof hook to minimize the time and cost of installation

2.Offer unmatched durability: with all structural components comprised of high class stainless steel and anodized aluminum alloy, it is designed for twenty years service life and backed by ten years warranty.

3.Stand up to extreme weather. The VG-Solar Ground mounting system is designed to stand up to the extreme weather complied with the AS/NZ 1170 and other international structure load standard by the skilled engineer. The main support components also have been test to guaranty its structure and load-carrying capacity.

4.Provide broad installation flexibility. These systems accommodate most commercially available framed solar panels and diverse roof types, and they can scale easily from small to large, multi-megawatt installations.
