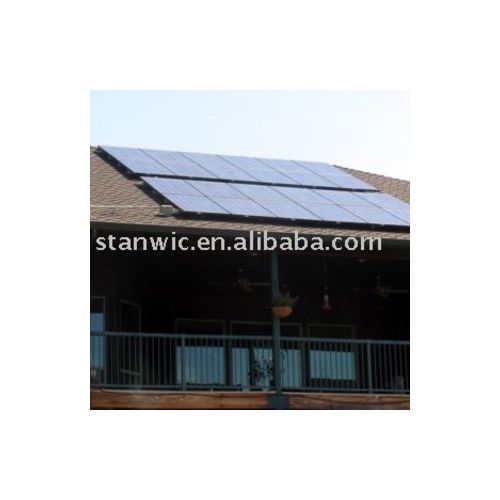

pitched tile roof mounting frame

Specifications

solar mounting systems 1 High reliability, 10-year warrant 2 Comply with AS/NZA1170 3 ODM/OEM welcomed 4 low cost

Tile roof mounting system is designed in accordance with prevailing standards and regulations and are manufactured from aluminum and stainless steel.This enables us to guarantee high durability and complete recyclability of our components.

This type is especially suitable for tile roofed house and windy or snowy area.

Main components:

I-Rail

Our light rail is the most cost-effective rail in the industry. Its slim profile design saves aluminum and expense. Yet it’s more than strong enough for flush mount applications. Modules can be easily attached.

Splice Kits

I-Rail can be mounted end to end in order to create continuous rows of modules. Simply splice as many Solar Mounts together as required.

Inter and end clamps

Inter and end clamps quickly and securely mount your modules to our rails from the top. Ideal for flush mount projects, our aluminum alloy components reliably clamp onto any point of the module frame.

Hook components

A variety of hooks and wood screws quickly and securely connecting the roof beams and rail I.

Nice solar adjustable roof tilt racking system is applicable to install the usual framed module to tilt a certain angle with the roof. The solar system can be a fixed angle or adjustable such as 10~15 deg, 15~30 deg and 30~60 deg for your requirement. The special extruded aluminum rail, the tilt-in module, the clamp kit and the round leg can be high pre-assembly and make the installation easy and quick to save your labor cost and time. The customized length can eliminate the weld and cut onsite to keep the high anticorrosive performance, the structure strength and the appearance.

Benefits:

Easy to install:

The tilt-in module can be put into the extruded rail from the any location and can be high pre-assembly with the clamp and roof hook to minimize the time and cost of installation

High durability:

all structural components comprised of high class stainless steel and anodized aluminum alloy, it is designed for twenty

Stand up to extreme weather :

This system is designed to stand up to the extreme weather complied with the AS/NZ1170 and other international structure load standard by the skilled engineer. The main support componets also have been test to guaranty its structure and load-carrying capacity.

Long warranty:

10-year quality Assurance
Design life for 20 years, 10 quality assurance, to provide customers with highly reliable quality assurance.
