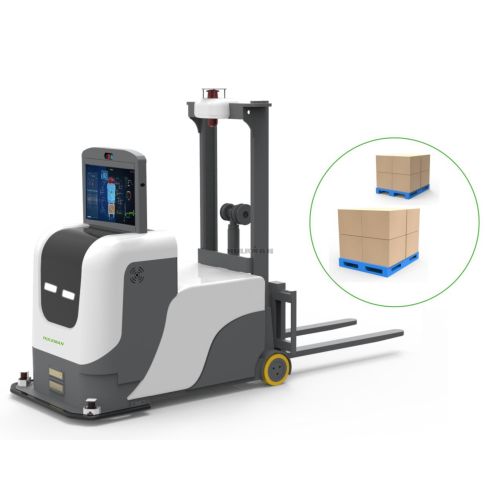

1.5Ton AGV Counterbalanced Electric Stacker

1.5Ton AGV Counterbalanced Electric Stacker

Product Description

AGV uses laser navigation SLAM algorithm to automatically scan the inside environment of car, senses the location of the goods, takes the goods out of car and realize intelligent unloading. When loading, the AGV will scan the environment and automatically stack the goods neatly, and load in car.

Adaptation: Transmission Lines, Package Machines.

3300mm Right Angle Stacking Aisle (1000*1200mm Pallet, 1000mm Incoming Fork)

1.5Ton AGV Counterbalanced Electric Stacker

Model

LDB1500C

Rated Load Capacity

1500kg

Navigation Method

Laser Navigation

Lifting Height

3000mm (can customize)

Turning Radius

1800mm

Dimension (L x W x H)

2779*1020*2249mm

Fork Size

1200*100*40mm

Max. Traveling Speed (loaded/unloaded)

1.0/1.2m/s

Body Weight (without load)

2000kg

Positioning Accuracy

±10mm

Max. Gradeability (loaded/unloaded)

5/8%

Communication Method

WIFI/5G

Fork Ground Clearance (Mini)

45mm

Right Angle Stacking Aisle

(1000*1200mm pallet,1000mm incoming fork)

3300mm

Battery Capacity

48/160Ah

Battery Type

LiFePO4

Charging Method

Manual/ Automatic

Charging/Working Time

1/8 Hours

Security

Laser Scan, Safety Contact Edge
