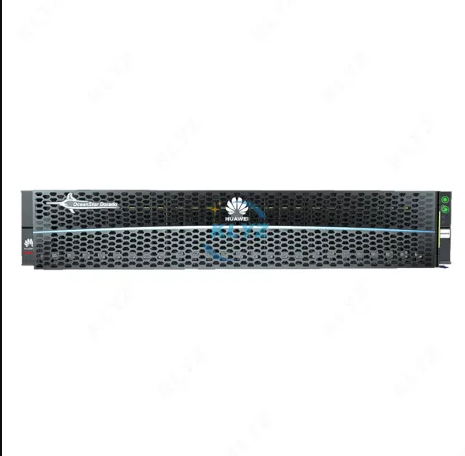

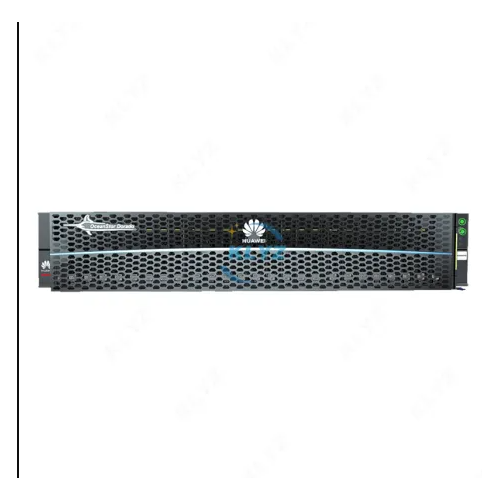

HUAWEI Oceanstor Dorado 5000/6000 V6 storage system
Huawei OceanStor Dorado 6.0.0 full flash system adopts Huawei smart chip and FlashLink Intelligent algorithms, a full range of end-to-end NVMe architectures, provide 20 million IOPS, with first-class performance, twice the industry's second strongest.
Product Description
PRODUCT DESCRIPTION
HUAWEI dorado 5000/6000 V6 storage system
Huawei OceanStor Dorado 6.0.0 full flash system adopts Huawei smart chip and FlashLink ® Intelligent algorithms, a full range of end-to-end NVMe architectures, provide 20 million IOPS, with first-class performance, twice the industry's second strongest.
Huawei OceanStor Dorado 5000 V6 and Dorado 6000 V6 are the next generation of full-flash solid-state hard disk (SSD) storage systems with enhanced customization capabilities for key enterprise businesses.
Both provide high availability, utilization and availability for large and medium-sized enterprises through mass storage, high-speed data access and environmental protection design. The storage system combines the high performance and high reliability of the key business of the enterprise, adopts Huawei's new hardware platform and the fully interconnected architecture of SmartMatrix, and provides symmetrical dual-live services.In addition, the system also adopts innovative hardware independently developed by Huawei, FlashLink intelligent algorithm designed for flash media, end-to-end (E2E) nonvolatile memory high-speed (NVMe) architecture, intelligent and efficient smart series, and high reliability of Hyper series, which can realize key businesses that are always online. In addition, the built-in AI acceleration module (the first in the industry) makes storage more intelligent and suitable for application operation. Dorado 5000 V6 and 6000 V6 perform well in database, virtualization and big data analysis scenarios, which are very suitable for operators, finance, government, manufacturing and other industries.
Technical Specifications
| Model | OceanStor Dorado 5000 | OceanStor Dorado 6000 | |||
| Hardware Specifications | |||||
| Maximum Number of Controllers | 32 | 32 | |||
| System Cache | 256 GB-8 TB | 1 TB-16 TB | |||
| Supported Storage Protocols | FC,iSCSI,FC-NVMe,NVMe over RoCE,NFS,CIFS,NDMP,S3* | ||||
| Front-End Port Types | 8/16/32 Gbps FC/FC-NVMe,10/25/40/100 GbE,25/100 Gbps NVMe over RoCE | ||||
| Back-End Port Types | SAS 3.0/100GbRDMA | ||||
| Maximum Number of Hot-Swappable I/O Modules per Controller Enclosure |
12 | ||||
| Maximum Number of Front-End Ports per Controller Enclosure |
48 | ||||
| Maximum Number of SSDS | 3,200 | 4,800 | |||
| SSDs | 1.92 TB/3.84TB/7.68 TB/15.36TB palm-sized NVMe SSD,960 GB/1.92 TB/3.84 TB/7.68 TB/15.36TB SAS SSD | ||||
| SCM Supported | 800 GB SCM/1.6TB* | ||||
| Software Specifications | |||||
| Supported RAID Levels | RAID 5,RAID 6,RAID 10*,and RAID-TP(tolerates simultaneous failures of 3 SSDs) | ||||
| Number of LUNs | 16,384 | 32,768 | |||
| Value-Added Features | SmartDedupe, SmartVirtualization, SmartCompression, SmartMigration, SmartThin, SmartQoS, SmartTier*, SmartCache, SmartQuota,SmartMulti-Tenant, HyperSnap, HyperReplication, HyperClone, HyperMetro, HyperCDP, HyperLock,HyperEncryption，HyperDetect*， CloudBackup* |
||||
| Storage Management Software | DeviceManager UltraPath DME-IQ | ||||
| Physical Specifications | |||||
| Power Supply | SAS SSD enclosure: 100V–240V AC±10%, 192V–288V DC, -48V to -60V DC Controller enclosure/Smart SAS disk enclosure/Smart NVMe SSD enclosure: 200V–240V AC±10%, 100–240V AC±10%,192V–288V DC, 260V–400V DC, -48V to -60V DC |
SAS SSD enclosure: 100V–240V AC±10%, 192V–288V DC, -48V to -60V DC Controller enclosure/Smart SAS SSD enclosure/Smart NVMe SSD enclosure: 200V–240V AC±10%, 192V–288V DC, 260V–400V DC, -48V to -60V DC |
|||
| Dimensions(H X W X D) | SAS controller enclosure: 86.1 mm × 447 mm × 820 mm NVMe controller enclosure: 86.1 mm × 447 mm × 920 mm SAS SSD enclosure: 86.1 mm × 447 mm × 410 mm Smart SAS SSD enclosure: 86.1 mm x 447 mm x 520 mm NVMe SSD enclosure: 86.1 mm x 447 mm x 620 mm |
SAS controller enclosure: 86.1 mm × 447 mm × 820 mm NVMe controller enclosure: 86.1 mm × 447 mm × 920 mm SAS SSD enclosure: 86.1 mm × 447 mm × 410 mm Smart SAS SSD enclosure: 86.1 mm × 447 mm ×520 mm NVMe SSD enclosure: 86.1 mm x 447 mm x 620 mm |
|||
| Weight(with disks) | SAS controller enclosure: ≤ 45 kg NVMe controller enclosure: ≤ 50 kg SAS SSD enclosure: ≤ 20 kg Smart SAS SSD enclosure: ≤ 30 kg Smart NVMe SSD enclosure: ≤ 35 kg |
SAS controller enclosure: ≤ 45 kg NVMe controller enclosure: ≤ 50 kg SAS SSD enclosure: ≤ 20 kg Smart SAS SSD enclosure: ≤ 30 kg Smart NVMe SSD enclosure: ≤ 35 kg |
|||
| Operating Temperature | –60 m to +1800 m altitude: 5°C to 35°C (bay) or 40°C (enclosure) 1800 m to 3000 m altitude: The max. temperature threshold decreases by 1°C for every altitude increase of 220 m |
||||
| Operating Humidity | 10%RH to 90%RH | ||||
*For further details on specififications with an asterisk for a specifific project, please contact Huawei sales.
