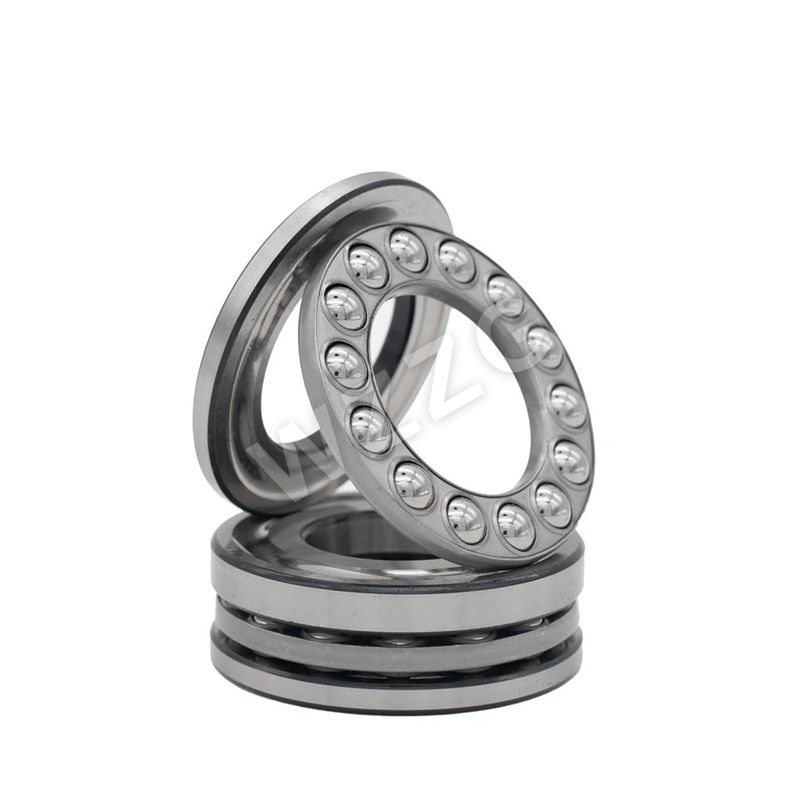

WZZG 51120 (1pcs) High quality 8117 plane thrust ball bearings 100*135*25 mm

Thrust ball bearings are designed to withstand thrust loads at high speeds and consist of washer-shaped rings with ball rolling grooves. Because the ferrule is in the shape of a pad, the thrust ball bearing is divided into two types: flat bottom pad type and self-aligning spherical pad type. In addition, this bearing can withstand axial loads, but not radial loads.

WZZG plane thrust ball bearings 51120

Plane thrust ball bearings are designed to withstand thrust loads at high speeds and consist of washer-shaped rings with ball rolling grooves. Because the ferrule is in the shape of a pad, the thrust ball bearing is divided into two types: flat bottom pad type and self-aligning spherical pad type. In addition, this thrust ball bearing can withstand axial loads, but not radial loads.

There are two key points in the assembly of plane thrust ball bearings. One is the control of the pressing quality of the cage and the steel ball, and the other is the control of the nominal height T after the bearing is assembled.

Plane thrust ball bearings specs

Brand Name: WZZG

Model Number: 51120

Size: 100*135*25 mm

Inside diameter: 100mm

Outer diameter: 135mm

Thickness: 25 mm

Number of Roller Columns: Single Column

Material: Chrome Steel GCr15
