19 Inch Industrial Monitors 1000 Nits For Industrial Control Retail Display
Touch Think the fourth generation of industrial-grade IP65 LCD monitors are designed for harsh environments, such as high and low temperatures, moisture, dust, splashing water, and dirt environments.
Product Description

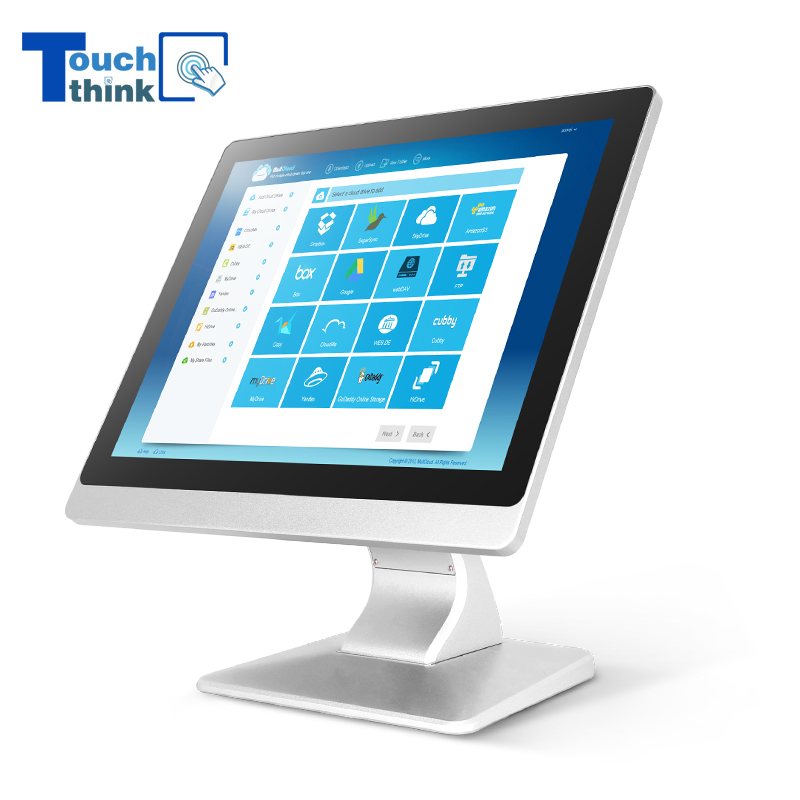

19 inch Industrial Touchscreen Monitor
Model: TPC190-M4
Touch Think the fourth generation of industrial-grade IP65 LCD monitors are designed for harsh environments, such as high and low temperatures, moisture, dust, splashing water, and dirt environments. The industrial waterproof aluminum alloy front bezel panel offers a number of add-on optional features like types of touch screens: capacitive touch screen, resistive touch screen, non-touch screen, etc. Or other operational temperature ranges, high brightness, viewing angle, and more customization services.
Product Features
1280x1024 HD
Fitted with a native HD IPS panel, the industrial monitor displays excellent image quality, high-definition colors, and a perfect 85/85/85/85° viewing angle, supporting a customized 178° viewing angle. The display screen is designed with anti-glare and offers self-adjustment brightness in outdoor devices.
IP65 Rated Dust-proof and Water Proof
The front panel of the industrial monitor is designed to be rated dust-proof and waterproof. Full-enclosed seamless dust-proof design for the whole shell. This industrial monitor has excellent performance in harsh environments, such as wet, moisture environments, or dusty environments.
The newest Fanless Cooling System
Fitted with a fanless cooling system. The industrial display runs without noise, providing a mute comfortable working environment for users. What's more, with a fanless cooling system, the inner electronic components are well-protected during a long time running because of its better heating-dissipation, and no dust will be inhaled into the inner structure.
EMC/EMI Standard Anti-interference
Touch Think series of industrial touch screen monitors are compliant with EMC/EMI standardized anti-interference, they are suitable for being equipped in multiple electronic device environments, such as central control devices, security houses, and engineering construction projects.
| Screen parameters | Screen size | 19 inch |
| Model | TPC190-M4 | |
| Resolution | 1280*1024 | |
| Proportion | 5:4 square screen | |
| Gray-scale response time | 5ms | |
| Panel Type Industrial | Control A/A+ style TFT | |
| Point distance |
0.264mm |
|
| Contrast | 1000:1 | |
| Backlight type | LED, using life length≥50000h | |
| Display color |
16.7M |
|
| Visual angle | 160/160 (178° full view angle is customizable ) | |
| Brightness | 350cd/m2 (high brightness customizable) | |
| Touch-type | Resistive / capacitive / mouse control | |
| Number of touches | ≥ 50 million times | |
| Other parameters | Power Supply | 4A External Power Adapter |
| Power Performance | 110-240V, 50-60HZ | |
| Input voltage | 12-24V | |
| Anti-static | contact 4KV-air 8KV (can be customized ≥16KV) | |
| Power | ≤48W | |
| Anti-vibration | GB2423 standard | |
| Anti-interference | EMC | EMI anti-electromagnetic interference | |
| Dustproof and waterproof | Front panel IP65 dustproof and waterproof | |
| Housing Material | Black/Silver, Aluminum Alloy | |
| Installation method | Embedded, desktop, wall-mounted, VESA, panel mount | |
| Ambient temperature | <80%, non-condensable | |
| Working temperature | -10°C～60°C (customizable -30°C～80°C) | |
| Language menu | Chinese, English, German, French, Korean, Spanish, Italian, Russian | |
| O/I interface parameters | Signal Interface | DVI, HDMI, VGA |
| Power connector | DC with ring attachment (optional DC terminal block) | |
| Touch interface | USB | |
| Other interfaces | Audio input and output |
