Plastic ball magnetic water float level switch for coffee machine
Product Description
Specifications
Description

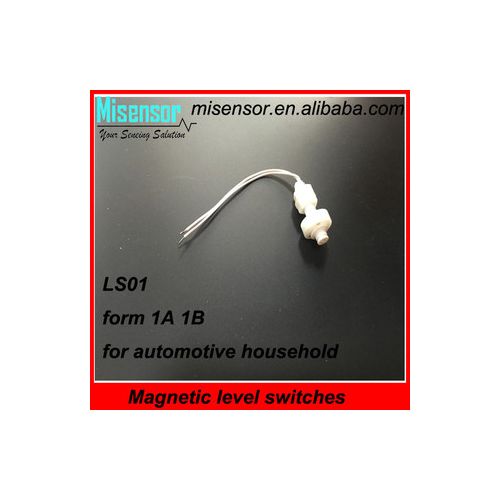

一. Plastic ball magnetic vertical water float type level switch LS01 show.
1. Feature of level switch.
A,Classic design,compact size.
B,Choise normal open or close, can customized.
C,No standby power requirement.
D,Customer can define activited distance,cable lenght and connector.
E,Hermetically sealed,suit to tough environment and long life.
2. Specifications of level switch.
Type LS01 LS02 LS03 LS04 LS05 LS11 Features smallest high
performance high
performance two floats two floats screw
fastening Contact form A1 1B 1A 1B 1A 1B 2A 2B 2A 2B 1A 1B Contact rating(w) 10 10/50 10/50 10/50 10/50 10/50 Max.switching votage(v) 200/300 200/300 200/300 200/300 200/300 200/350 Min.breakdown voltage(v) 250/450 250/500 250/500 250/500 250/500 250/500 Max.switching current(A) 0.5 0.5 0.5 0.5 0.5 0.5 Max.carry current(A) 1.0/2.5 1.0/2.5 1.0/2.5 1.0/2.5 1.0/2.5 1.0/2.5 Operation temp -20 to +80℃ Housing material pp
4. Applications of level switch.
A,Level control
B,Level measurement
C,Household appliances, automobile, test and measurement and control technology in the liquid container monitoring.
二. Misensor show
1.Introduction of Misensor
Misensor is a highly innovative leader in the Position and Movement Sensor Solutions using Reed Switches, Hall effect and MR technology. Our production base is located in Shanghai, China. We produce a wide range of Proximity switches, Door magnetic switches, Float switches, Level sensors, Flow switches, Flow sensors, Fuel Level sensors, Thermal reed switches, displacement sensors, Elevator Magnetic Reed Switches, Reed relays and Reed switches for the applications of automobile, household appliances, security, test and measurement, medical and industrial field. Our many years of experience and the expertise of our employees ensure competent service over our entire product line of standard items, as well as the development of customers' specific items according to customers' specific requirements and applications.
"Misensor, Your Sensing Solutions!" We are committed to solve your switching and sensing problems.
2,Hot items in Misensor.
1, Reed switches (RS series)
2,Magnetic proximity switches (MS series)
-PCB mounting
-screw fastening
-Cylindrical type
3,Door contacts
4,Magnetic level switches (LS series)
-Vertical type
-Horizontal type
-SUS type
-Multi-float
-Continuous liquid
5,Magnetic flow switches (FS series)
6,Car sensors.
-Automotive level switches
-Thermal reed switches
-Temperature sensors
-Fuel level sensors
-AdBlue level sensors
7,Elevator magnetic reed switches
8,Reed relay
-Standrad reed relays
-Current relays
-High Voltage relays
9, Magnetic
10,Customized products.
Terms
| FOB Price: | $3 |
| Minimum Order: | 100 pcs |
| Port: | GUANGDONG/SHANGHAI,CHINA |
| Payment Terms: | 100% T/T IN ADVANCE. |
