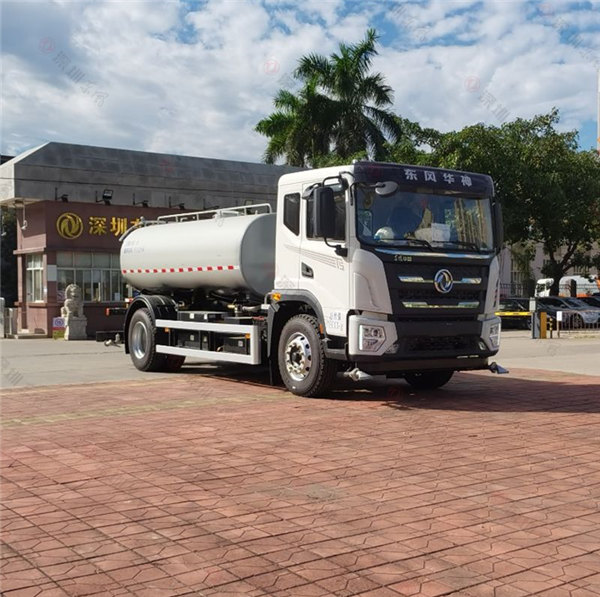

10T HUASHEN WATER SPRAYING TRUCK
10T HUASHEN WATER SPRAYING TRUCK
Product Description
The Pure Electric 10T Water Spraying Truck is a highly efficient sanitation vehicle designed for road watering and cleaning. It features multiple operation modes, including road surface washing, duckbill watering, dust suppression spraying, and greening irrigation. The vehicle uses a large-flow, low-pressure water pump to clean road surfaces, water hedges, and irrigate green spaces, making it ideal for urban road cleaning and green belt irrigation.
The 10T Water Spraying Truck is equipped with a low-pressure water system and an electrical control system. Front sprinkler nozzles are installed at the front, while left and right low-pressure hedge sprinklers, rear sprinklers, greening sprayers, a water monitor, and other devices are installed at the rear. It is capable of road surface washing, watering, greening irrigation, water monitor washing, spraying, and dust suppression. The Sanitation Truck is primarily used for road cleaning, watering, dust control, and greening irrigation.
Application
This vehicle is suitable for urban road surface cleaning, including washing, watering, dust suppression, and spraying operations for green belts.
Urban road cleaning: suitable for daily cleaning of urban main roads, secondary roads and sidewalks, removing dust and stains on the road through high-pressure washing or low-pressure spraying to keep urban roads clean.
Green belt irrigation: For urban parks, green belts on both sides of the street, square green areas and other areas, the vehicle can be used for regular watering to promote plant growth and maintain the beauty of urban greening.
Dust suppression: In places where dust is easily generated, such as construction sites, demolition sites and unpaved roads, water mist is sprayed to reduce the dust content in the air, improve air quality and reduce environmental pollution.
| Technical Parameter | |||
| Vehicle Model | EQ5180GSSSBEV | ||
| Chassis | Chassis Model | EQ1180TLEVJ1 | |
| Chassis Motor Rating/Peak Power (kW) | 120/200 | ||
| Chassis Power Battery Pack Capacity (kWh) | 210.56 | ||
| Chassis Power Battery Type/Manufacturer | Lithium iron phosphate/ CATL | ||
| Wheelbase (mm) | 4500 | ||
| Performance of Operation | Low Pressure Water Spraying | Model | 65QZB50-110 (Shandong Weijia/Hangzhou Weilong) |
| Watering Width (m) | ≥ 12 | ||
| Hedge Width (m) | ≥ 24 | ||
| Rear Water Cannon Range (m) | ≥ 35 | ||
| Rated Power of Drive Motor (kW) | 40 | ||
| Full Power Single Operation Time (h) | 5~7 | ||
| Charging Mode | DC Fast Charge (support dual fast charge) | ||
| Charging Duration (h) | ≤2.5，≤1.5（Double-gun fast charging, supported by electric pile) | ||
| Total Volume of Water Tank (m3) | 9.5 | ||
| Driving Performance | Maximum Speed (full load) km/h | 89 | |
| Maximum Climbing Gradient | 20% | ||
| Quality Parameters | Complete Vehicle Curb Weight (kg) | 8700 | |
| Maximum Total Mass (kg) | 18000 | ||
| Rated Load Mass (kg) | 9105 | ||
| Structure Size | Overall Dimension (L × W × H) (mm) | 8020 X 2510 x 2850 | |
| Approach Angle (°) | 15 | ||
| Departure Angle (°) | 10 | ||
