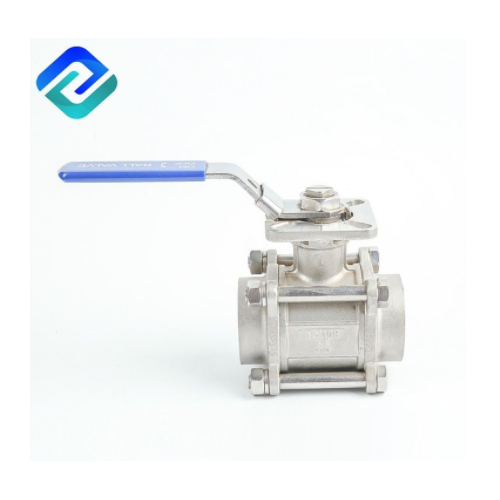

1000 wog cf8m stainless steel 3 PC ball valve

The three-piece ball valve is composed of a valve body, two valve covers, a ball, a valve stem, a packing gland, a handle, a lock nut and other important parts.

Product Description

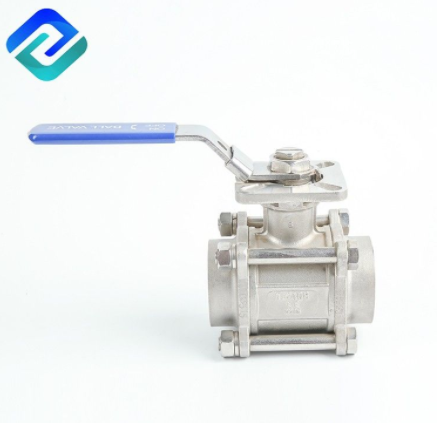

1000 wog cf8m stainless steel 3 PC  ball valve



The three-piece ball valve is composed of a valve body, two valve covers, a ball, a valve stem, a packing gland, a handle, a lock nut and other important parts.

The medium of the three-piece ball valve can be used from left to right and right to left, clockwise to close, counterclockwise to open.

The main performance and structural characteristics of the three-piece ball valve:

1. Full-bore design with large flow, large flow and low resistance.

2. The three-piece valve body structure is resistant to pressure and corrosion. If a hard seal is used, it can be resistant to wear and high temperature.

3. All parts are precision processed with high-quality stainless steel materials, and the sealing is made of high-quality PTFE polytetrafluoroethylene,

which has a good sealing effect and corrosion resistance.

4. Adaptation temperature: soft seal -40-200 degrees, hard seal -40-400 degrees.

5. Rotate the switch at 90 degrees, which has the function of quickly switching off.



Material

Stainless Steel: SS304, SS316, CF8, CF8M

Type

 3PC Ball Valve, Swing Check Valve, Y-Type Check Valve, Wafer Check Valve,

Gate Valve, Globe Valve, H71 Check Valve, Butterfly Valve, Foot Valve

Class

1000PS

Standard

Design: DIN3202-M3, DIN3357, EN12516, ASME B16.34
Testing: API598, EN12266, JIS, BS

Size

1/8” to 4” for Threaded End

Connection

RF FF RTJ

Application

NPT, BSP, BSPT, DIN2999, Flange End

Certificate

CE / ISO / SGS

1000 wog cf8m stainless steel 3 PC  ball valve



FAQ:

Q: Are you trading company or manufacturer ?
A: We are factory.

Q: What's your MOQ ?
A: MOQ is 1000 usually. But MOQ of each product is different.

Q: Can I get a sample for testing ?
A: Yes, we can provide you a sample for reference, but you may pay for the sample and shipping fee.



Q: What's the payment term?
A: We accept T/T, western union, L/C and Trade Assurance. For bulk order by T/T and Western Union, we will require 30% deposit first and 70% balance before delivery.
