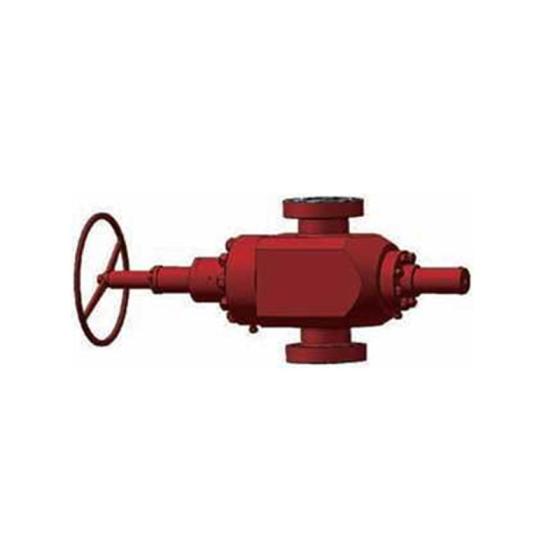

Ball Screw Gate Valves
Product Description
Delivery Lead Time：45~75days
Country/Region：China
City：Shanghai
Product Attributes
- - Place of Origin China
- - Supply Type In-Stock Items
- - Condition New
- - Related Keywords Ball Screw Gate Valves
Description by Manufacturer
Ball Screw Gate Valves
The body and flanges are integral (non-welding). Shot Blasting for every parts of valve. Phosphating to improvecorrosion resistance.
rac valves - ball screw gate valves supplier is a type of large bore gate high pressure valve whichwere improved from Cameron FLS-R gate valve, its the main component of frac tree, the frac valve is often usedon the top of the wellhead on high pressure oil well, can do the frac job for Isolating the fluid from the well.The body and flanges are integral (non-welding). Shot Blasting for every parts of valve. Phosphating to improvecorrosion resistance.
Features:
Valve with Ball Screw
Ball screw structure lowers operating time
Gate valve design
Stem structure is pressure balanced with switch indicator
wellhead equipment manufacturers Specifications:
Applies to big bore high pressure system
Working pressure:2000 PSI-20000 PSI
Connection: Flange* Thread、Union、BW
Size: 1 13/16"-7 1/16'
Working temperature:K. L .P. R .S. T. U. V
Material Class :AA.BB.CC ,DD .EE.FF.HH
Specification level: PSL1-PSL4
Performance Requirement: PR1. PR2
AQE wellhead valves Application： Oil, Chemical industry, etc.
Medium： Oil、Gas、Water.etc
Learn more information about wellhead equipment,you can visit our website .
Packaging & Shipping
- - Delivery Lead Time45~75days
- - Shipping Career
Product Image
Description by Manufacturer
Ball Screw Gate Valves
The body and flanges are integral (non-welding). Shot Blasting for every parts of valve. Phosphating to improvecorrosion resistance.
rac valves - ball screw gate valves supplier is a type of large bore gate high pressure valve whichwere improved from Cameron FLS-R gate valve, its the main component of frac tree, the frac valve is often usedon the top of the wellhead on high pressure oil well, can do the frac job for Isolating the fluid from the well.The body and flanges are integral (non-welding). Shot Blasting for every parts of valve. Phosphating to improvecorrosion resistance.
Features:
Valve with Ball Screw
Ball screw structure lowers operating time
Gate valve design
Stem structure is pressure balanced with switch indicator
wellhead equipment manufacturers Specifications:
Applies to big bore high pressure system
Working pressure:2000 PSI-20000 PSI
Connection: Flange* Thread、Union、BW
Size: 1 13/16"-7 1/16'
Working temperature:K. L .P. R .S. T. U. V
Material Class :AA.BB.CC ,DD .EE.FF.HH
Specification level: PSL1-PSL4
Performance Requirement: PR1. PR2
AQE wellhead valves Application： Oil, Chemical industry, etc.
Medium： Oil、Gas、Water.etc
Learn more information about wellhead equipment,you can visit our website .
Packaging & Shipping
- - Delivery Lead Time45~75days
- - Shipping Career
