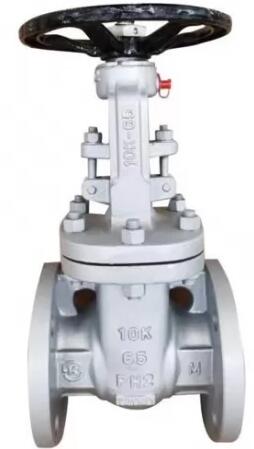

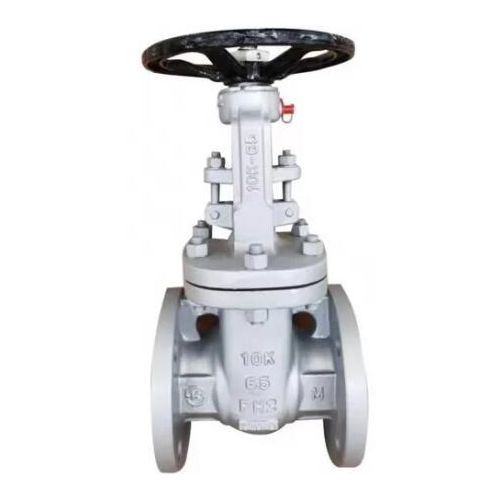

JIS Standard Gate Valve 20k/10k

JIS Standard Gate Valve 20k/10k

Product Description

JIS Standard Gate Valve 20k/10k Standard



Design: JIS B2083, B2073

Pressure range:20k, 10k

Face to Face: JIS B2002

RF Flange Standard: JIS B2220

Testing Standard: JIS B2003.

No Part name Material
1 Body JIS G5151 SCPH2
2 Seat ASTM A105 + 13Cr
3 Wedge disc JIS G5151 SCPH2 + 13Cr
4 Stem ASTM A182 - F6a
5 Bolt ASTM A193 Gr.B7
6 Nut ASTM A194 Gr.2H
7 Gasket Graphite + Carbon steel
8 Bonnet JIS G5151 SCPH2
9 Backseat bushing ASTM A276 - 410
10 Packing  Flexible graphite
11 Stem nut ASTM A439 D-2 / Cooper alloy
12 Handwheel ASTM A536 60
