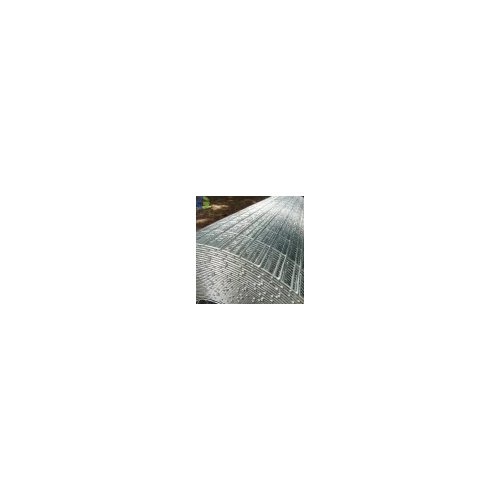

Galvanized Welded Mesh

Galvanized Welded Wire Mesh is made of high quality low carbon steel wire welded on automatic digital controlled welding equipment. It is welded with plain steel wire. The finished products are flat with sturdy structure, it has well erosion-resisting and rustproof properties.

Product Description

Galvanized Welded Wire Mesh

Galvanized Welded Wire Mesh is made of high quality low carbon steel wire welded on automatic digital controlled welding equipment. It is welded with plain steel wire. The finished products are flat with sturdy structure, it has well erosion-resisting and rustproof properties. The mesh is commonly used in construction, fencing, and industrial applications, as well as for other purposes such as animal cages or enclosure.

Characteristics

* Hot dipped galvanizing after welding

* Hot dipped galvanized before welding

* Electro galvanizing after welding

* Electro galvanized before welding

Electro galvanized welded mesh

It is designed for building fencing and in other infrastructural purposes. It is a corrosion resistant wire mesh that is largely used in structural building.
It is also available in different forms like rolls and panels for industrial uses.

Hot dipped galvanized welded mesh

It is generally made up of plain steel wire. At the time of processing it goes through a hot zinc covering process.
This type of welded mesh ware with square opening is ideal for animal cage structuring, fabricating the wire boxes, grilling, partition making, grating purposes and machine protection fencing.

Specification

Mesh Size

Wire Gauge Diameter

In mm

In Inch

BWG No.

MM

6.4mm

1/4Inch

BWG24-22

0.56mm- 0.71mm

9.5mm

3/8Inch

BWG23-19

0.64mm - 1.07mm

12.7mm

1/2Inch

BWG22-16

0.71mm - 1.65mm

15.9mm

5/8Inch

BWG21-16

0.81mm - 1.65mm

19.1mm

3/4Inch

BWG21-16

0.81mm - 1.85mm

25.4x 12.7mm

1 x 1/2Inch

BWG21-16

0.81mm - 1.85mm

25.4mm

1Inch

BWG21-14

0.81mm - 2.11mm

38.1mm

1 1/2Inch

BWG19-14

1.07mm - 2.50mm

25.4mm x 50.8mm

1 x 2Inch

BWG17-14

1.47mm - 2.50mm

50.8mm

2Inch

BWG16-12

1.65mm - 3.00mm

50.8mm to 305mm

2 to 12Inch

At Request

Roll width

0.5m-2.5m, according to request.

Roll length

10m, 15m, 20m, 25m, 30m, 30.5m, according to request.



Multiple uses

Fences, cages and fences
Farm, Garden and Agricultural Use
And window safety protection device.
Archaeological use
architectural engineering
Filling plate
High security application
Garden greening and stone cage
Stone retention
Greenhouse utilization
Particle separation
General industrial use
