5.7'', 320*240 dots, Graphic LCD Module
DGM32024001-V1 is a 320x240 monochrome graphic LCD module display which has the module dimension of 160x109 (W*H) mm and diagonal size 5.7 inch. industrial appliances.
Product Description
Product Description
Graphic LCD module, 5.7", 320*240 dots, White led backlight, 8-bit parallel
DGM32024001-V1 is a 320x240 monochrome graphic LCD module display which has the module dimension of 160x109 (W*H) mm and diagonal size 5.7 inch. DGM32024001-V1 LCD display is designed to STN Negative blue mode or FSTN black and white mode, and built into RA8835A controller or EQV; it communicates via 6800/8080 8-bit parallel interface and connected by 20 pins. We have two color backlight for this product: white and blue. It is often used in industrial appliances.
Specifications:
|
Part No |
DGM32024001-V1 |
|
Size |
5.7" |
|
Resolution |
320X240 dots |
|
Outline Dimension |
160.0X109.0X13.5mm |
|
Viewing Area |
122.0X92.0mm |
|
Dot Size |
0.33X0.33mm |
|
Dot Pitch |
0.36X0.36mm |
|
Display Mode |
STN Negative Blue, FSTN Black and White |
|
Controller: |
RA8835A or EQV |
|
Connector |
20 pin |
|
Interface Type |
8 bit Parallel |
|
Backlight Type |
LED White |
|
Weight |
220g |
Welcome to contact us for further cooperation.

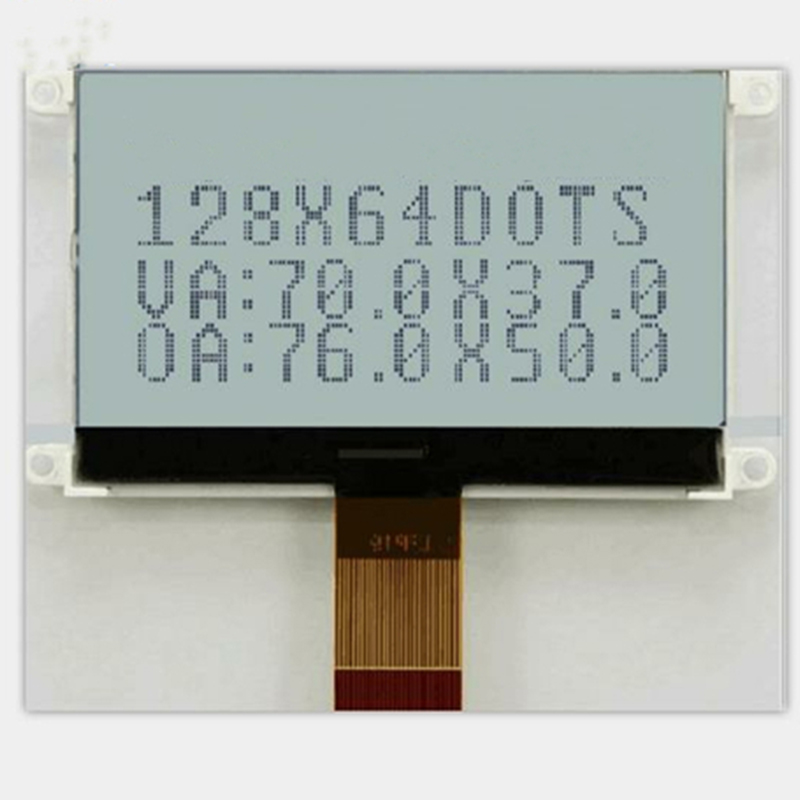

Detail Image
