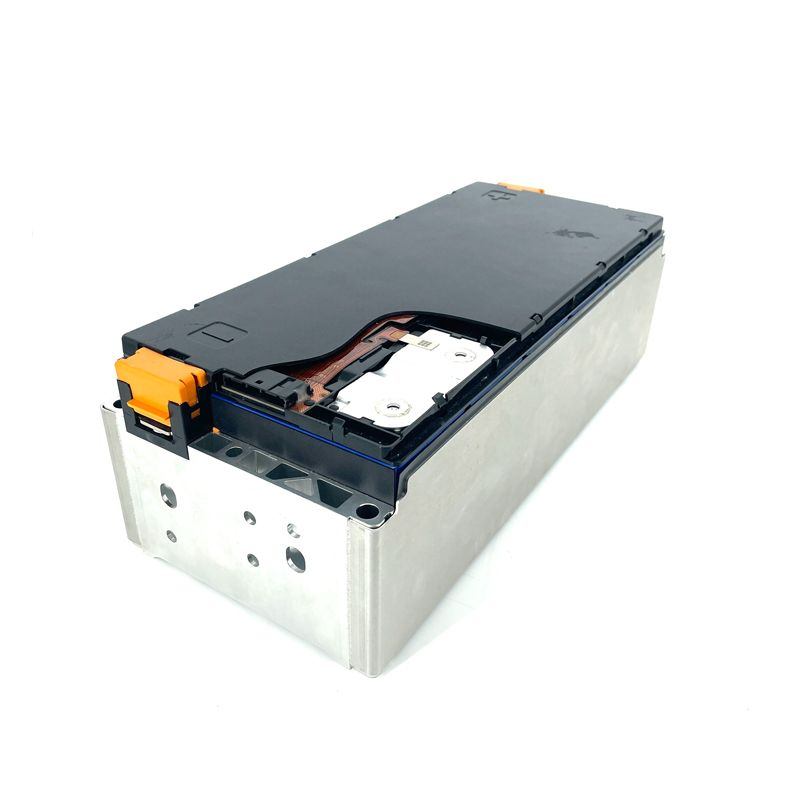

NCM114AH 1P6S VDA Module

NCM114Ah Standard Module is the typical 355 module and is composed of 1P6S NCM114Ah, data collecting unit of BMS and fixed fittings. - The capacity and voltage of NCM114Ah Standard Module is 22.44V114Ah.

Product Description

NCM114AH 1P6S VDA Module

NCM114Ah Standard Module is the typical 355 module and is composed of 1P6S NCM114Ah, data collecting unit of BMS and fixed fittings.
- The capacity and voltage of NCM114Ah Standard Module is 22.44V114Ah.
- Standard module as the standard group structure can be connected in series to expand voltage and in parallel to expand capacity.

NCM114Ah 1P6S VDA MODULE

No.

Items

STANDARD MODULE

Note

NCM 114AH1P6S

1

Nominal voltage(V)

22.44

@1/3C,22.08@1C

2

Operating voltage(V)

min

16.8



3

max

26.4



4

Nominal capacity(Ah)

114

@1/3C,25°C,100%DOD

5

Nominal energy(KWh )

2.558

@1/3C,25°C,100%DOD

7

Group mode

1P6S



8

End of life residual capacity (Ah)

91.2

@1/3C,25°C,100%DOD

9

Module weight(kg)

12.1±0.3



10

Maximum continuous charge current(A)

114



11

Maximum continuous discharge current(A)

114



12

Maximum pulse discharge current(≤10s)(A)

342



13

SOC operating range(%)

0-97



14

Insulation requirements(MΩ)

≥500



15

Module cooling method

Natural cooling



16

Module heating method

NO



17

Shipping capacity (SOC)

30%

SOC is consistency in the same batch

18

Dimension L (mm)

355



Dimension W (mm)

151.5

Dimension H (mm)

108.5



NCM114AH 1P6S VDA Module Dimensions



NCM114Ah 1P6S VDA MODULE

                             DRAWING                                                        INTERFACE TYPE



NCM114Ah 1P6S VDA MODULE

NCM114Ah 1P6S VDA MODULE

                                                            01                                                                                                                                        02

                                   Carton for air transportation and                                                                                           Meeting the UN38.3 package
                                 plywood case for sea transportation                                                                                       standard for dangerous goods

NCM114Ah 1P6S VDA MODULE
