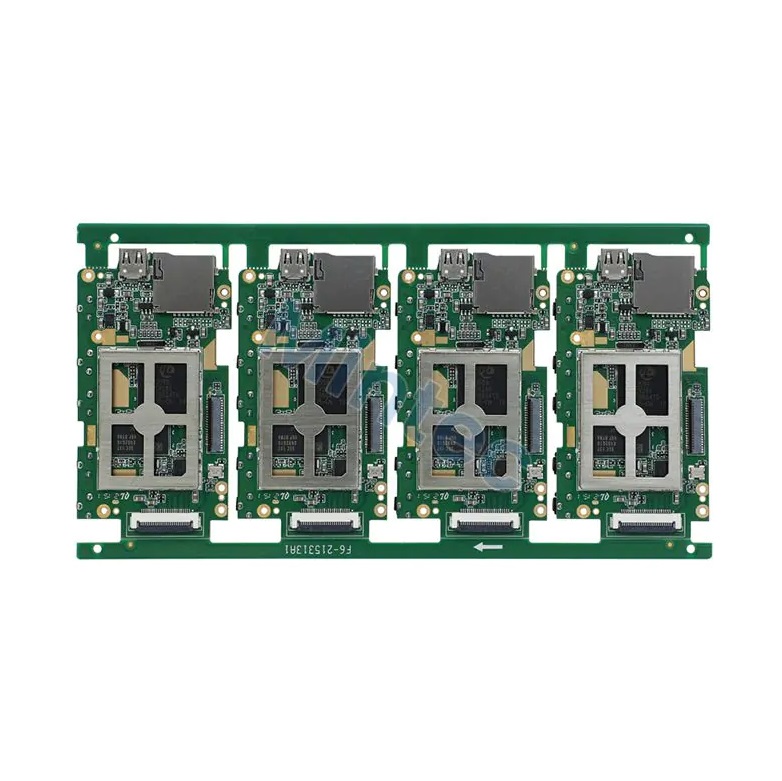

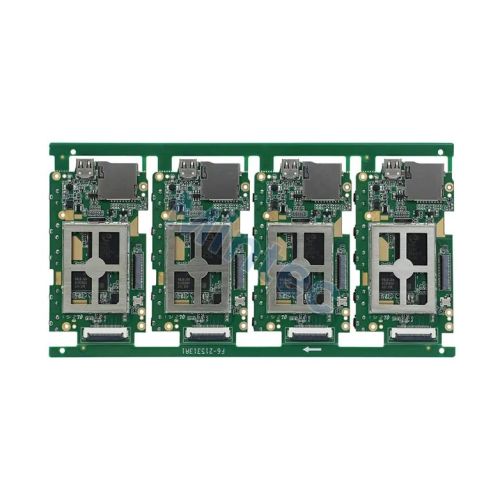

Precision Instruments PCBA

Precision instruments refer to the equipment and devices used to generate and measure precision quantities, including observation, monitoring, determination, verification, recording, transmission, transformation, display, analysis and processing and control of precision quantities.

Product Description

Precision instruments refer to the equipment and devices used to generate and measure precision quantities, including observation, monitoring, determination, verification, recording, transmission, transformation, display, analysis and processing and control of precision quantities. According to the different measurement objects, precision instruments can be divided into: geometric precision instruments, mainly including precision instruments for detecting various geometric quantities, such as vertical goniometers, laser interference ratio length meters, latitude and longitude meters, coordinate measuring machines, circularity meters, contour meters and scanning tunneling microscopes and other measuring instruments; thermal precision instruments, mainly including temperature, humidity, pressure, flow detection precision instruments, such as various barometers, vacuum gauge, multi-wavelength temperature measurement instrument, flow meter and altimeter, etc.; mechanical quantity precision instruments, mainly including various force measuring instruments, strain gauge, acceleration and speed measuring instrument, torque measuring instrument, vibration measuring instrument, universal material experiment machine and Brinell hardness tester, etc.; time and frequency precision instruments, mainly including various timing instruments and meters, atomic clocks, time and frequency measuring instruments, etc., in addition, there are electromagnetic precision instruments In addition, there are electromagnetic precision instruments, radio precision instruments, optical and acoustic precision instruments and ionizing radiation precision instruments. Precision instruments from the industry for high-end manufacturing equipment, biomedical engineering and aerospace defense and other major scientific frontier areas.

As a PCB design and PCB assembly company with more than 20 years of experience, Minteda has advanced international technology, intelligent production and testing equipment to meet your requirements. We provide you with the following types of precision instrumentation motherboard products, from small prototype to mass production, including PCB design, PCBA mounting and DIP packaging services.

Water meter PCBA circuit boards

Spectrometer PCBA circuit board

Digital multimeter PCBA circuit board

Digital oscilloscope PCBA circuit board

Process Capability

Solder paste printer printing accuracy: ±0.02mm

Printing Repeat positioning accuracy: ±0.0125mm

Equipment reject material rate: within 5 parts per million

Mounting component size: CHIP 01005 (imperial) ~ 100*90*21mm IC

Mounting accuracy: ±0.035mm

Mounting repeat positioning accuracy ±0.025mm

CPK≥1.0

SMT workshop 01005 SMD components, 0.2mm BGA placement capacity and quality control capabilities are very mature.

With 12 temperature zone nitrogen reflow furnace, the reflow soldering can be compatible with different PCB thickness (0.5mm ~ 3.2mm) and material (paper substrate, glass fiber substrate, synthetic fiber substrate, non-woven substrate, composite substrate, PFC board), and also can reduce the high temperature oxidation of solder and not easy to produce compounds with metal, but also to avoid metal oxidation because of air  nitrogen is an inert gas,  which to ensure the quality of solder and product Reliability.
