Home > Electronic Components & Supplies > Single Zone Energizer for electric fence

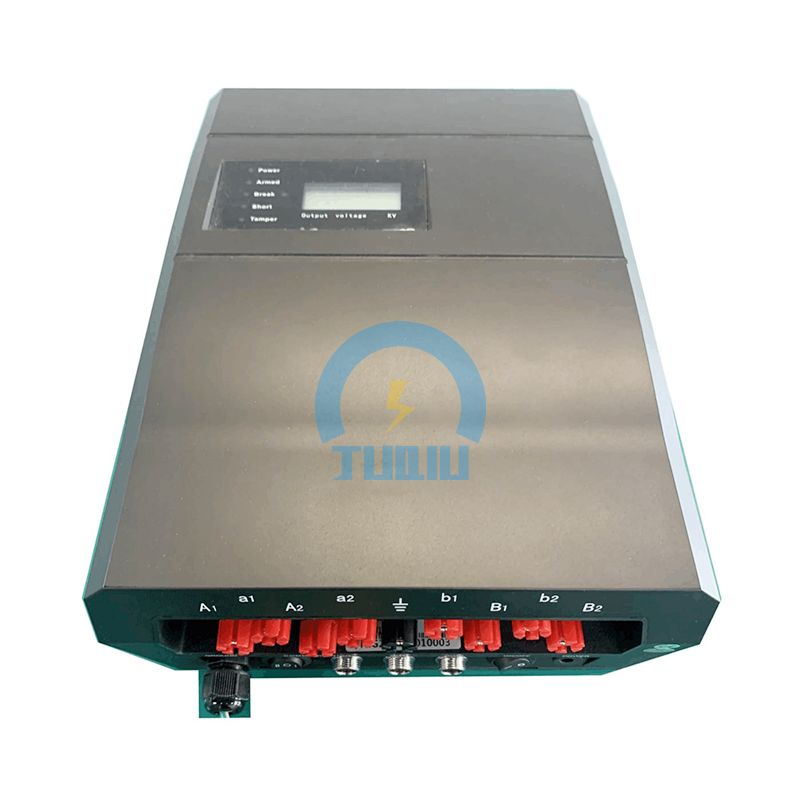

Single Zone Energizer for electric fence

The energizer is an important part of the perimeter alarm electric fence system. The energizer is an instrument for the electric fence system to control, transmit, detect and convert the front-end signal of the electric fence. The alarm signal at the front of the electric fence can be transmitted to the management platform.

Product Description

Single Zone Energizer for electric fence

Product Description

Model No.: TQ-L-M1A1R

The energizer is an important part of the perimeter alarm electric fence system. The energizer is an instrument for the electric fence system to control, transmit, detect and convert the front-end signal of the electric fence. The alarm signal at the front of the electric fence can be transmitted to the management platform.

How to choose your energiser?

Your choice of electric fence energizer will depend on:

Power source mains or battery.

Whether portable or permanent.

How much power (or joules) that you need.

Application: villa, factory, airport, prison, military area, etc.



The main features

Output energy: ≤5J (Single zone)

Remote control: Through the control of intelligent keyboard remote defense area layout, remove defense

Compatibility :RS-485 TCP\IP communication interface for system integration

Hand-held remote control: The remote control can be used to deploy defense and undo defense Small functions: detachable, buzzer, wave matter rate are all switchable or adjustable

Power off memory: the device can remember the original working state after power off

Backup battery: Lithium battery 12V standby time 6 hours

Network sensitivity: Network sensitivity (1--9) adjustable, shear sensitivity (1--9)

Alarm duration: (1--99 seconds) adjustable



Specification:

Size:

330*240*128mm

Power supply:

AC100V-240V

Power adapter:

DC18V 2A

Working environment:

-25℃ ~ +55℃

Humidity:

≤ 95%

Output Parameter:

5J

Peak High Voltage Output:

4KV~7.0KV

Peak Low Voltage Output:

0.6KV-5KV

Peak Pulse Current:

<10A

Pulse Duration:

≤0.1

Pulse Interval Time:

1s~1.5s

Max Output Electric Quantity Per Pulse:

5mc

Max Output Energy Per Pulse:

≤5J

System Power Consumption:

≤15W

Protection Shell Material:

ABS



Single Zone Energizer for electric fence
