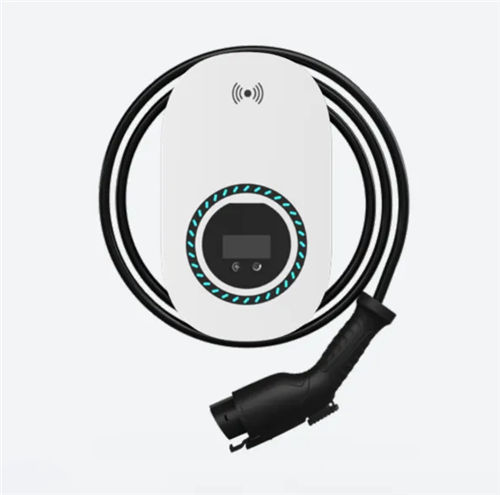

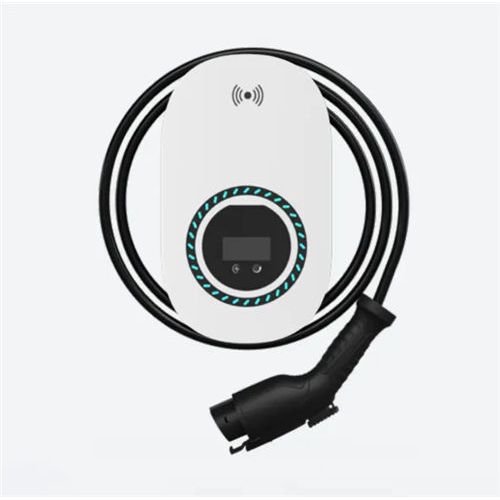

Type 1 Wallbox EV Charging Station

Type 1 Wallbox EV Charging Station

Product Description

Leakage Protector: CCID 20;

Support reservation charging, power adjustment

RFID function for residential application;

Complies with the OCPP1.6J protocol

Optional wireless connection with Bluetooth /WiFi /4G for business applications ;

Optional wall-mounted installation or pedestal installation for different installation demand

Optional Ethernet/ 485 interfaces/Dynamic load balance for business applications

Ring 12 color ambient technology light;

Our Type 1 Wallbox EV Charging Station is designed for both home and commercial use. For home use, they come equipped with Bluetooth & Wi-Fi or RFID card functionalities, making it convenient for users to charge their electric vehicles at home. For commercial use, they can be integrated with OCPP communication protocols to connect to OCPP charging platforms for public charging station management and billing.

With a power output range of 7.6-11.5KW, our Type 1 charging stations can meet the charging needs of most electric vehicle owners. They also support dynamic load balancing and come with CCID 20 leakage protection to ensure the safety of household electricity.

Specifications:

Product model:

F-EVAPCA-07

F-EVAPCA-09

F-EVAPCA-11

Input Power:

7.6kW

9.6kW

11.5kW

Input Voltage:

AC 240V

Rated Input Current:

32A

40A

48A

Operating Frequency:

50Hz

Phase:

Singe Phase

IP Rating:

IP55

Altitude:

≤2000m

Related Temperature:

5%~95% No condensation

Operating Temperature:

-25℃~+50℃

Storage Temperature:

-40℃~+85℃

AC EV Charging Stations are pivotal in advancing electric mobility by providing accessible and efficient charging solutions. As the EV market grows, the expansion of AC charging infrastructure will play a crucial role in meeting the needs of drivers and promoting sustainable transportation solutions globally.

We offer OEM/ODM/White Label services to perfectly align our products with your brand or marketing needs.

For more details please visit www.eracharge.com
