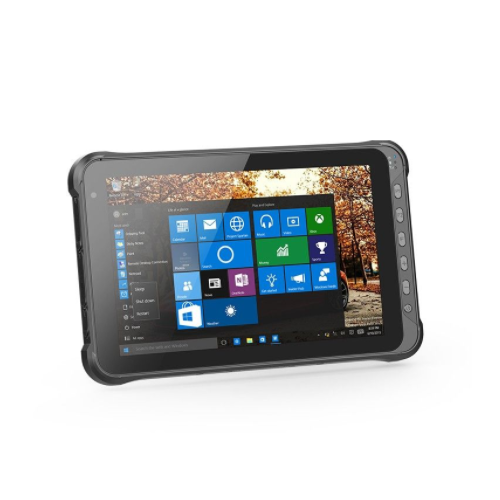

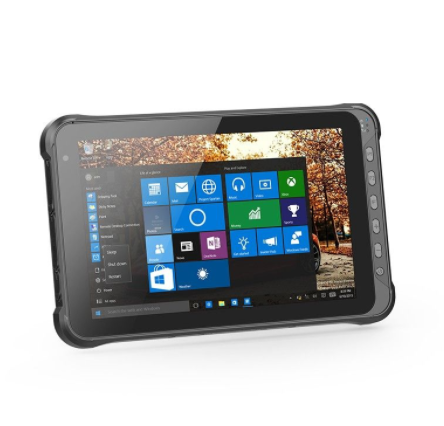

700NITS RUGGED WINDOWS TABLET 10 INCH 4G LTE

Step into the world of SHENZHEN SHINHO ELECTRONIC TECHNOLOGY CO., LIMITED, where industrial computing reaches unprecedented heights.

Product Description

EMPOWER YOUR INDUSTRY WITH UNRIVALED INNOVATION: INTRODUCING THE 700NITS RUGGED WINDOWS TABLET, A 10-INCH 4G LTE POWERHOUSE

INTRODUCTION

Step into the world of SHENZHEN SHINHO ELECTRONIC TECHNOLOGY CO., LIMITED, where industrial computing reaches unprecedented heights. As trailblazers in the field, we are thrilled to present the pinnacle of ingenuity – the 700nits Rugged Windows Tablet, a 10-inch 4G LTE marvel that redefines rugged versatility, connectivity, and performance.

PIONEERING RUGGED EXCELLENCE

Our journey is marked by relentless innovation, and the 700nits Rugged Windows Tablet exemplifies this ethos. Designed for the harshest environments, this tablet is built to conquer. We understand that industries demand uncompromising performance, and that's precisely what this tablet delivers. With an ultra-bright 700nits display, it remains legible even in the most challenging lighting conditions, ensuring seamless operation and unhampered productivity.

SPECIFICATION

Model:R-I15SVH
PC
CPU	Intel Cherrytrail Z8350, 1.44Ghz-1.92GHz
GPU	Intel® HD Graphics
RAM	4GB
SSD	64GB EMMC, Optional 32G/128G
G_sensor	G_sensor
WIFI	WIFI 802.11(a/b/g/n/ac) dual frequency 2.4G+5.8G WIFI intel 3165D2WG (3.3v)
Bluetooth	BT4.2 (BLE) class 1, Transmission distance: 10m
3G	Optional: FIBOCOM_H350 GSM/GPRS/EDGE Band(MHz):900/1800; WCDMA Band(MHz):900/2100, 1.Asia Pacific,Europe, 2.China Unicom 3G
4G	EC25-EC LTE FDD: B1/B3/B7/B8/B20/B28A WCDMA: B1/B8 GSM: B3/B8
GPS	U-BLOX M8Q GNSS module. support GPS, beidou,glonass
Camera	front 2.0MP, rear 5.0MP
Speaker	8Ω/0.8W waterproof BOX speaker*1
Mic	Sensitivity:-42db, output impedance 2.2kΩ
Operation System	windows 10 HOME/ IOT/ Pro/ enterprise 64bit
LCD panel
Panel size	10.1"
Resolution	800*1280
Aspect ratio	16:10
Brightness (cd/m²)	700 cd/m2
Touch panel
Touchscreen Type	10 points capacity TP, G+G
Surface Hardness	7H
Interface
USB	1*USB2.0
Type C	1*USB OTG/chargeing
Audio Output	1*3.5mm
HDMI	1*HDMI C
TF Slot	1TF Slot, support SDHC/SDXC1 max: 64G
SIM	1*SIM
Power	1*DC 5.5V 4A
Keys
power	*1
volume	Volume adjustment key(+ -) *2
Windows home	Windows home*1
P1	Barcode scanning*1
P2	wearing gloves/ wet finger mode switching*1
Power Supply
Power Adaptor	AC100V ~ 240V, 50Hz/60Hz, Output DC 5.5V/4A
Battery	Removable Li-polyment battery
	Capacity: 5000mHA/7.4V
	7 hours ( 50% volume sounds, 200 nits brightness, 1080P HD video display by default ) 5 hours ( 50% volume sounds, maximum brightness, 1080P HD video display by default )
Operating Environment
IP grade	IP65 waterproof
Drop Height	1.22cm composite wood floors, in operation status
Operate Temperature	-20 °C to 60 °C
Store Temperature	-30 °C to 70 °C
Humidity	Humidity: 95% Non-Condensing
Packing Details
Net weight	1088g
Gross weight	1933g
Product Dimension	28018022 mm
Packing size	38420864mm
Other
Warranty	1 year warranty
Certificate	CE, FCC, RoHS
Color	black (rear housing and front housing)
Module extension (Optional)
One-dimension barcode	Honeywell N4313/Optical resolution: 5mil/scan speed: times /s serial port
Two-dimension barcode	Honeywell N3680 hardcode/ Optical resolution:5mil/ scan speed:50 times /s, Code system:PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse, Maxicode,QR Code, MicroQR, QR Inverse,Aztec,Aztec Inverses,Han Xin,Han Xin Inverse
Fingerprint	070-Hello fingerprint module, FPC1020(sensor，capacity press type) fingerprint effective area: 10mm x10mm  more high resolution: 192x192pixel/508DPI
NFC	NXP NFC 13.56MHz, support ISO/IEC 下14443A/14443B/15693/18092/mifare, 2~4cm
Serial	RS232
Ethernet interface	*1(10/100M self-adaption) with indicator light
UHF-RFID	TTL Uart port，Recognition distance is 3m, Working voltage DC 3.5V – 5 V, Standby current <80mA (EN electrical level),Working current 180mA @ 3.5V,Working spectrum range 902Mhz – 928Mhz,inventory tag peak velocity > 50 pcs /second
ID Module	support reading the fingerprint information in the 1st and 2nd ID card Port：USB or TTL serial port optional power 5v or 3.3v，size：53mm52mm10mm
Optional Accessories
Accessories	Docking Charger, Hand-strap, Vehicle Mount, Removable Battery

Engineering Brilliance

Manufactured to withstand the toughest trials, the 700nits Rugged Windows Tablet combines cutting-edge technology with years of expertise. Its rugged design ensures durability in even the most demanding settings, while its compact 10-inch form factor maximizes portability without compromising on performance. This tablet is more than just a device; it's a dependable partner that endures the test of time.

Seamless Connectivity with 4G LTE

In an era where connectivity defines success, our tablet's integrated 4G LTE capability empowers you to remain connected on the go. Access critical data, communicate seamlessly, and make informed decisions in real-time, regardless of your location. With the 700nits Rugged Windows Tablet, you're always a step ahead.

Extending Boundaries

Our journey from industrial panel PCs to touch screen monitors has led us to this innovative tablet. Our evolution from initial industrial automation to commercial smart terminals and intelligent devices showcases our adaptability and foresight. The 700nits Rugged Windows Tablet is a testament to our ability to anticipate industry shifts and provide solutions that redefine possibilities.

EXPERIENCE THE FUTURE TODAY

Join us in shaping the future of rugged industrial computing. The 700nits Rugged Windows Tablet, with its 10-inch brilliance and 4G LTE power, is not just a device; it's a statement of empowerment. Unleash unparalleled efficiency, embrace the strength of customization, and redefine connectivity.

CONNECT WITH US today and embark on a journey of limitless possibilities. Elevate your industry with the 700nits Rugged Windows Tablet, where innovation isn't an option – it's a necessity.
