Inner Race Milling Machine

Single station inner race milling machine with one-time clamping and processing of multiple BJ/UFJ/SX/DOJ grooves, 20-65 mm processing of groove diameter, which is suitable for the milling of inner race.

Product Description

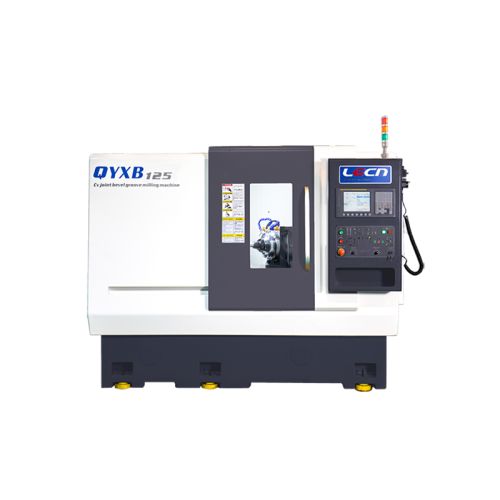

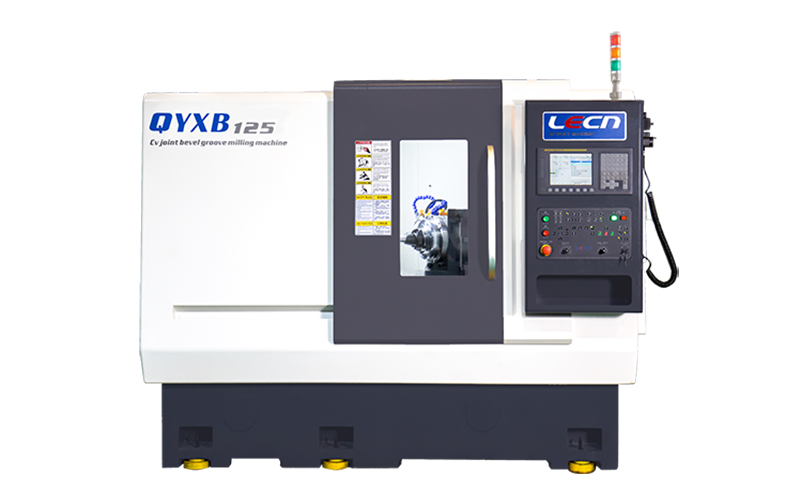

Inner Race Milling Machine QYXB125

Single station inner race milling machine with one-time clamping and processing of multiple BJ/UFJ/SX/DOJ grooves, 20-65 mm processing of groove diameter, which is suitable for the milling of inner race. High efficiency, hard milling instead of grinding,it can carry with truss or joint robot and automatical line.

An inner race milling machine is a specialized piece of equipment used in the manufacturing of roller bearings. The inner race is the component that fits onto a shaft and rotates along with it. The milling machine is used to cut a groove into the inner race that matches the profile of the bearing's rolling elements.

The process of milling the inner race involves cutting a groove along its circumference using a series of milling cutters. These cutters remove material from the inner race to create a groove that matches the profile of the bearing's rolling elements. The machine is programmed to move the cutters in a specific pattern to create the desired groove profile.

Technical Parameters

ITEM QYXB125
Max Clamping Diameter, mm Ø35
Max Workpiece Height, mm 60
Groove Diameter Scope, mm Ø20-Ø65
DiameterOf Steel Ball Scope, mm Ø12.7-Ø22

More details please click here
