XCMG XUR5000 Raise Boring Machine
Product Description
Min Order Quantity：1 Set
Port：Tianjin
Delivery Lead Time：5 months
Country/Region：China
City：Xian
Product Attributes
- - Place of Origin China
- - Supply Type OEM Service
- - Condition New
- - Related Keywords raise boring machine, jumbo drill, blast hole drilling rig
Description by Manufacturer

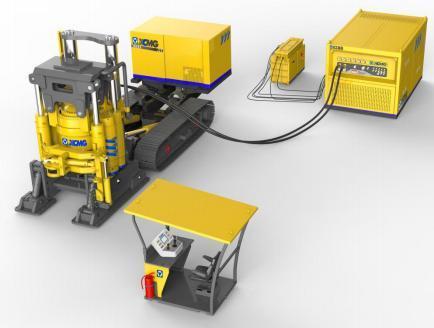

XCMG XUR5000 RAISE BORING MACHINE
XUR5000 raise drilling rig is a forward drilling and reverse expansion drilling rig, which is mainly used for geotechnical engineering construction in non-coal underground mines, water conservancy and hydropower, tunnel transportation and other fields, It can carry out various wellbore constructions such as ventilation wells, transportation wells, rescue wells, slip wells, and decompression wells.
Advantage:
1.The drilling rig is driven by full hydraulic pressure and has strong power. It can automatically adjust the pulling force and driving torque of the drilling rig according to the stratum conditions and load changes, so as to achieve constant pressure drilling and constant torque drilling to ensure construction safety.
2.The full hydraulic power head adopts a single motor with two-stage deceleration, which has high reliability and reduces the maintenance rate; at the same time, the full hydraulic power head is equipped with a floating device, which makes it easier to load and unload the drill pipe and is not easy to damage the drill pipe thread.
3.Double-sided oil cylinders are used for propulsion, and the drilling is stable and the well-forming efficiency is high. The single-side main thrust cylinder adopts a three-cylinder parallel structure, which greatly reduces the height of the whole machine and has a compact structure under the condition of satisfying the working stroke.
4.The horizontal plate integral plug-in workbench is adopted, which greatly enhances the stability of the whole machine, with high well completion quality and small deflection rate.
5.The newly designed manipulator, multi-degree-of-freedom design, moves stably and reliably, which greatly reduces the labor intensity of workers.
6.Double power station, single size is small, easy to maintain and transport.
7.The hydraulic system and electrical system use advanced components at home and abroad, and focus on the protection level requirements of the whole machine, which are suitable for safe construction under severe working conditions.
Main technical parameters
No. | Item | Unit | Data |
1 | Pilot hole diameter | mm | 311 |
2 | Maximum reaming diameter | m | 5 |
3 | Maximum reaming depth | m | 600 |
4 | Drill pipe diameter (ordinary DP) | mm | 290 |
5 | Effective length of drill pipe (ordinary DP) | mm | 1524 |
6 | Pilot hole maximum torque | kN.m | 78 |
7 | Reaming maximum torque | kN.m | 237 |
8 | Shackle Max Torque | kN.m | 275 |
9 | Pilot hole speed | r/min | 0~48 |
10 | Reaming speed | r/min | 0~11 |
11 | Pilot hole maximum thrust | kN | 1600 |
12 | Reaming maximum pulling force | kN | 4500 |
13 | Host machine power | kW | 345 |
14 | System voltage |
| 380V/50Hz |
15 | Main motor power (kW) x quantity |
| 280 ×1 |
16 | Auxiliary motor power (kW) x quantity |
| 55×1 |
Equipment reliability
1 | Service life of equipment | More than 10 years |
2 | First overhaul time | 2 to 3 years (it can be adjusted according to the use and maintenance of the equipment) |
3 | Operational reliability | The XUR5000 raise drilling rig is of excellent manufacturing quality, suitable for efficient operation under harsh working conditions, and has extremely high operational reliability. |
Features and advantages compared with similar equipment
XUR5000 raise drilling rig can automatically adjust the pulling force and driving torque of the drilling rig according to the formation conditions and load changes, realize constant pressure drilling and constant torque drilling, improve work efficiency and reduce hob wear. At the same time, it has the functions of constant torque anti-twisting and preventing misoperation, which can effectively prevent the falling rod accident of the drilling rig from reversing due to misoperation.
The machine adopts explosion-proof design, full electronic control operation, international matching of key components, and high reliability of the whole machine.
Optional self-propelled crawler chassis, which can be operated by remote control, which is convenient for transit transportation.
Price
- Price US$ 100000 / Set
Packaging & Shipping
- - Delivery Lead Time5 months
- - Minimum Order 1 Set
- - Delivery PortTianjin
