Sapphire Window
Sapphire Window
Product Description
Sapphire Window Specifications
|
Substrate |
Sapphire crystal |
|
Size |
5-420mm |
|
Thickenss |
0.1-20mm |
|
Dimension Tolerance |
+/-0.01~+/-0.1mm |
|
Shape |
circular,rectangular, wedged, cone,tube, window with hole,dome,irregularly shape, customized |
|
chipping |
<0.1mm |
|
Bevel |
<0.2*45degree |
|
Surface Quality |
60/40-10/5 as request |
|
Parallelism |
<3arc min |
|
Antireflective Coating |
R<0.1% |
Sapphire Optical Window can resistance of higher temperatures, high pressure, strong vacuum or corrosive environments, because of these features sapphire windows can withstand harsh environmental conditions and provide good performance and reliability, therefore it can be used to make optical components, night vision cameras and other instruments, it can be seen that it has many advantages

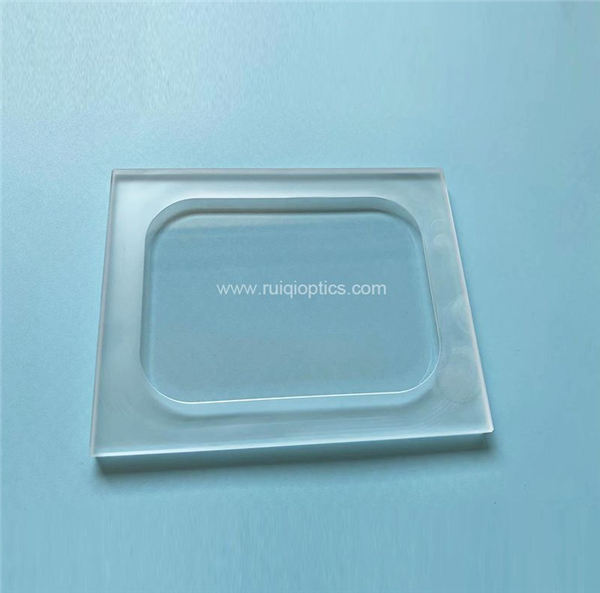

Sapphire Glass Window both surfaces round sapphire windows, of course other shape also accept custom made such as rectangular windows, Sapphire tube, Sapphire Step Window, Sapphire Rod Lens, Sapphire Ball lens, Sapphire Prisms, Sapphire Abnormity etc., commonly used as a sensor and protection window of detector, the windows do not change the magnification of the system, it’s widely use as an important window material for high energy detection and high power laser, also good application on watches, medical beauty instruments, intelligent equipment.
CCRQ supply coating service including Antireflective Coating, High Reflection Coating, Beam Splitting Coating, Metal Coating (Aluminum, Silver, Gold), According to customers requirements we can provide personalized customized service
